Milescraft PocketJig200XT Pocket Hole Jig Kit with free 2" Face Clamp (7331)

₱1,899.00

HIGHLIGHTS: The Milescraft PocketJig200™ pocket hole jig allows you to connect your workpieces in a quick and timely manner. Whether you want to build storage projects, cabinets, shelves, or bookcases, this... Read more

Out of stock
People are viewing this right now

Guaranteed Safe Checkout

INSTALLMENT payment is available via BILLEASE (Click for Details).

HIGHLIGHTS:

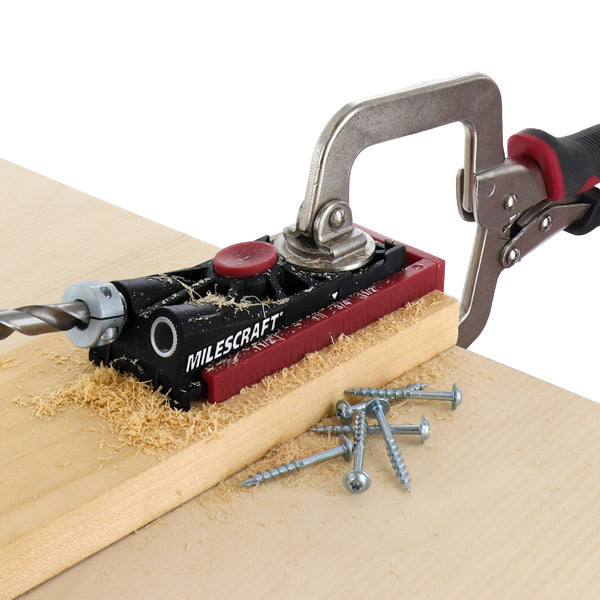

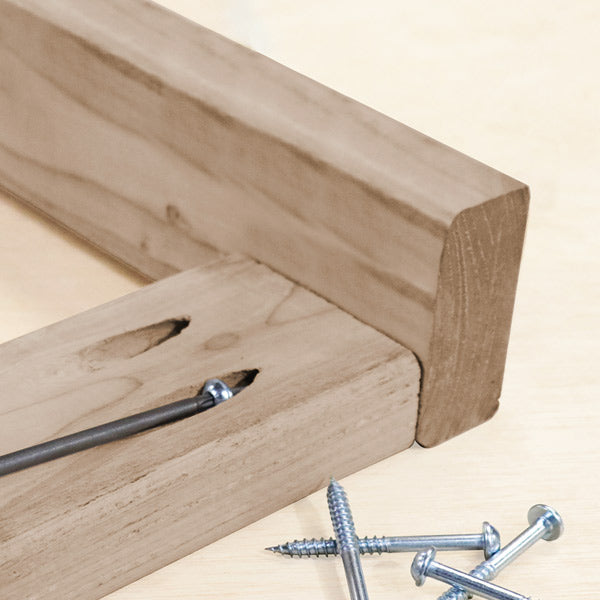

The Milescraft PocketJig200™ pocket hole jig allows you to connect your workpieces in a quick and timely manner. Whether you want to build storage projects, cabinets, shelves, or bookcases, this kit does it all. Allowing you to create corner joints, T-Joints, Framing Joints, Miter Joints, and do repairs. With built-in settings for board thicknesses, there is no need to manually measure. Just set this pocket jig to your desired setting, set the depth of your bit, and start drilling.

PocketJig200™ Pocket Hole Jig Kit – Designed To Make Repairs Simple

  • Spring-loaded sled adjust button allows the jig to be set to do repairs of any nature around your home or your shop

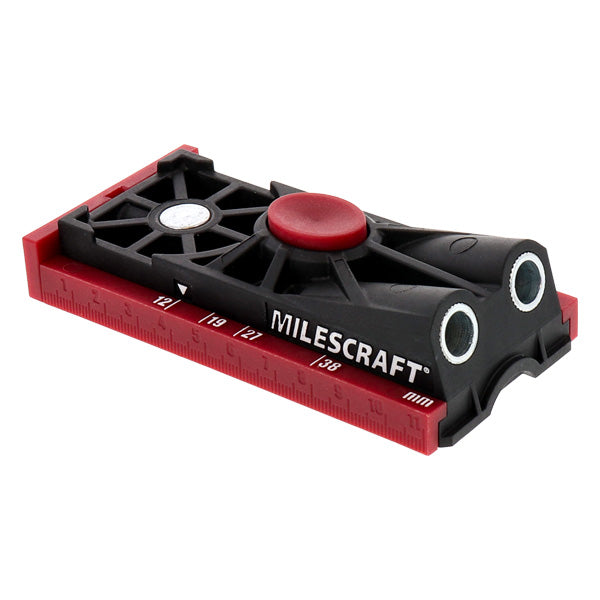

Built-In Imperial And Metric Scales

  • The built-in scales allow you to easily measure the thickness of your workpiece

Board Thickness Settings

  • There are four common board thickness settings built into the pocket jig: 1/2″, 3/4″, 1″ and 1-1/2″ (12, 19, 27, 38mm)
  • Easy readout arrow to help define your board thickness setting
  • Easily adjust to your board thickness setting with the single sled design and sled adjust button

Hardened Steel Drill Bushings

  • For precise and accurate pocket holes every time using the Milescraft PocketBit™
  • Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try

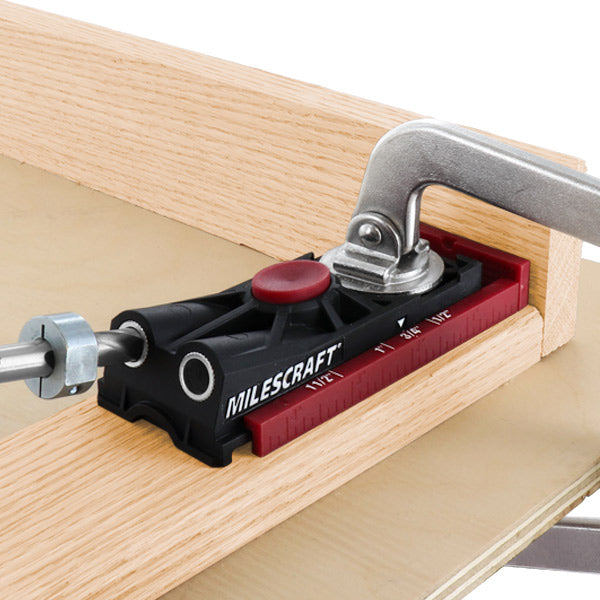

Recessed Clamp Pocket With Magnet

  • Helps to keep the clamp in the same position as you move to different locations
  • With the stronger rare earth magnet, you can easily clamp the jig from one location to another
  • For speed and accuracy, use the Milescraft FaceClamps™

Convenient Built-In Depth Setting

  • Easily set your bit for the correct drilling depth

3/8″ HSS Step Drill Bit

  • Made from high-speed steel the PocketBit with a 1/4″ hex shank is designed to reduce clogging and provide smooth and precise holes

3/8″ Anti-Roll, Split Design Stop Collar

  • The split design prevents slipping of the set screw when tightened and prevents the bit from rolling
  • Includes hex key for tightening

Quick Change Compatible Connector

  • With the Milescraft Connector, you can quickly change from drilling to driving
  • Accepts all 1/4″ hex bits
  • Quickly and easily change from drilling to driving

3″ And 6″ Magnetic T20 Torx® Drivers

  • For maximum torque settings without stripping
  • To allow pocket screws to align with maximum precision

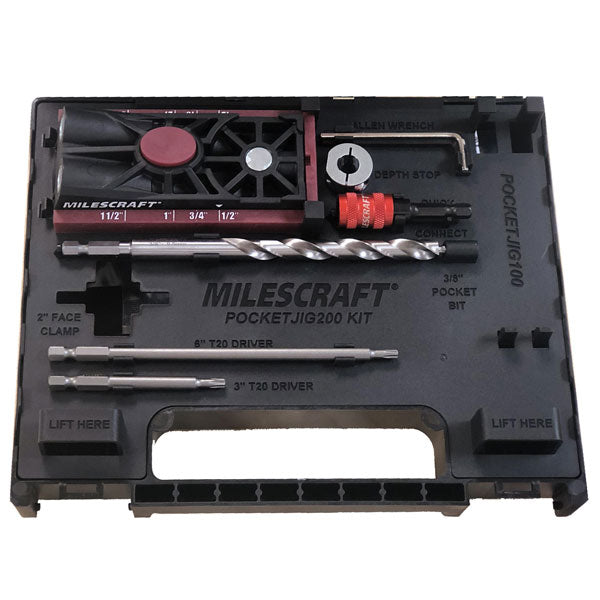

Rugged Storage Case

  • With designated places for components, you will never have to go digging through your toolbox for your pocket hole jig again
  • Storage compartment for 2″ FaceClamp™
  • Storage slot for PocketJig100



      DOWNLOAD MANUAL:

      PocketJig200 Manual (PDF)



      SPECIFICATIONS:
      Material Reinforced Nylon
      Drill Guide Bushing Spacing 1"
      Clamping Method Works with any clamp
      For use with Wood Materials for 1/2" to 1.5 thick (12-38mm)
      Drilling Angle 15°
      Screw and Driver Style T20 Torx
      Screws 10 of each: 1” (25mm), 1.25” (32mm) coarse and fine, 1.5” (38mm), 2” (51mm), 2.5” (64mm)
      Drivers 3" T20 Magnetic Head Driver and 6" T20 Magnetic Head Driver
      Pocket Plugs 10 plugs
      Connector Accepts all 1/4" hex bits
      Drill Bit 3/8" (9.5mm) HSS Pocket Bit with 1/4" shank

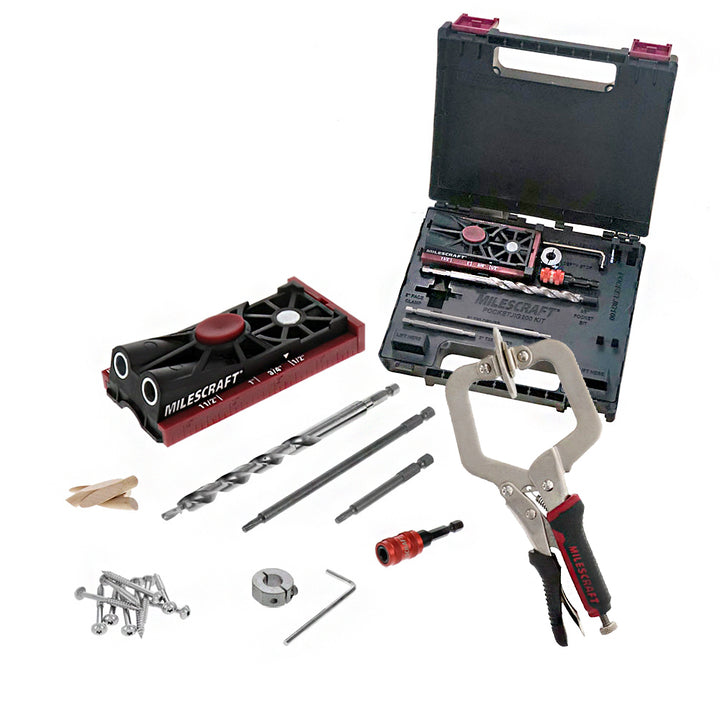

      Includes Double Barrel Pocket Hole Jig, Quick Connect, 3" & 6" T-Star Driver Bits, 3/8" PocketBit™, 60 Piece T20 Pocket Hole Screws, Pocket Plugs, 3/8" Split Design Stop Collar with Hex Key, 2" Face Clamp and Instruction Manual
