Sanwa DCL1000 Digital Clamp Multimeter (Portable) - GIGATOOLS.PH
Sanwa DCL1000 Digital Clamp Multimeter (Portable) - GIGATOOLS.PH

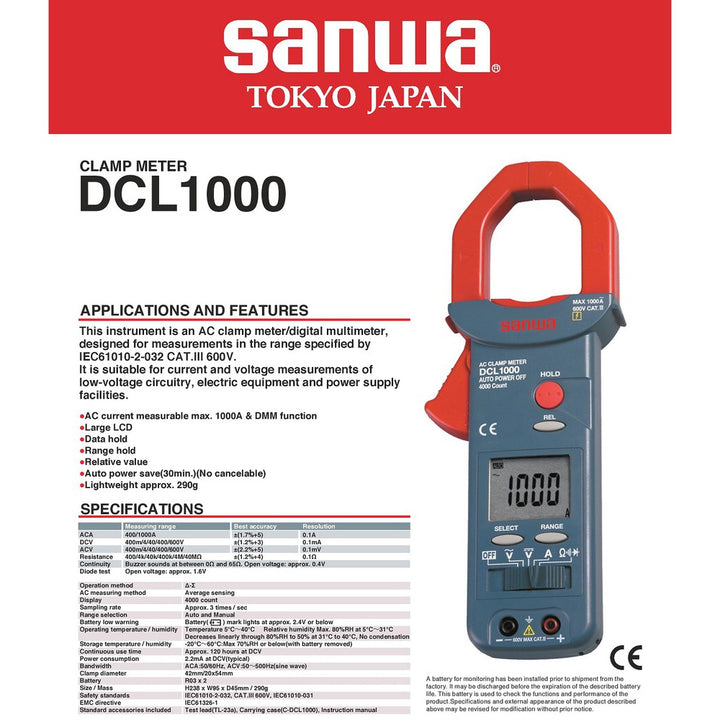

Sanwa DCL1000 Digital Clamp Multimeter ( Portable )

₱8,629.00

HIGHLIGHTS: Top class quality popular in 74 countries around the world Measurements become valid only when people place confidence in the quality of measuring instruments. Sanwa has supported the work of...

Ask a Question
Add to Wishlist
20 People are viewing this right now

Guaranteed Safe Checkout

Installment payment via Installment Option
Select billease during checkout.
Manufacturer_Partner
Sanwa
Description

HIGHLIGHTS:

Top class quality popular in 74 countries around the world

Measurements become valid only when people place confidence in the quality of measuring instruments. Sanwa has supported the work of professionals for over half a century, and has produced a myriad of different solutions through the utilization of high levels of quality.

This quality control includes not only "products", but also each and very operation, maintenance services, and sales and marketing activities, and is thoroughly implemented utilizing reliable systems and the intangible awareness of each of our employees. SANWA is a Japanese name brand that lives up to the trust of engineers around the world through the provision of high quality measuring instruments.



FEATURES:

  • Lighter than conventional clamp meters (30 % reduction from Sanwa equivalent meters) for easy transportation.
  • Large “ ” button to ensure holding of the indicated value.
  • Safety design in compliance with the IEC.
  • DMM function provided.
  • Relative value (RELATIVE) measuring function provided
  • Made in Japan



APPLICATIONS:

This is an AC clamp meter designed for the IEC measurement category CAT. III 600 V and is suitable for measurement of AC current of electrical equipment and power supply facilities.


SPECIFICATIONS:
Function Measuring range Best accuracy Resolution
ACA 400/1000A ±(1.7%+5) 0.1A
DCV 400m/4/40/400/600V ±(1.2%+3) 0.1mV
ACV 400m/4/40/400/600V ±(2.2%+5) 0.1mV
Resistance 400/4k/40k/400k/4M/40MΩ ±(1.2%+4) 0.1Ω
Continuity Buzzer sounds at between 0Ω and 65Ω(±35Ω)Open voltage: approx. 0.4V
Diode test Open voltage: approx. 1.6V

Sampling rate 3 times/sec.
Bandwidth ACA 50/60Hz (sine wave) ACV 50-500Hz (sine wave)
Display 4000
Clamp diameter/Conductor size Φ42mm/20×54mm
Battery R03×2
Battery life Approx. 120 hrs. at DCV (Zinc-carbon battery)
Size/Mass H238×W95×D45mm/Approx.290g
Safety standards IEC61010 CAT.Ⅲ600V



INSTRUCTION MANUAL: SANWA DCL1000 DIGITAL CLAMP
