Asada 200SP Reciprocating Pipe Saw, 1500W

HIGHLIGHTS:

The Asada 200SP Reciprocating Pipe Saw is a professional-grade, electric reciprocating saw purpose-engineered for fast, efficient cutting of installed steel and stainless steel pipes in the field. Designed for plumbers, pipefitters, and mechanical contractors, it cuts steel pipes from 1/2" up to 8" and stainless steel pipes up to 8" (3mm wall thickness or less) directly on site — without the need to dismantle or remove the pipe from its installation position.

Powered by a robust 1,500W universal single-phase motor, the PS200SP delivers a cutting speed 32% greater than conventional pipe saw models — significantly reducing time on each cut and improving overall job productivity. Variable stroke speed from 700 to 2,060 SPM via a 6-position dial gives the operator precise control over cutting speed to match the material, pipe diameter, and wall thickness for optimal blade performance. A slow-speed start function ensures a controlled, safe start to each cut before reaching operating speed.

At just 3.9kg, the PS200SP is remarkably lightweight for its power class — making it easy to handle and position in confined or restricted spaces such as under roofs, inside ceiling voids, and in cramped mechanical rooms where larger cutting tools cannot be used. The included chain vise locks the saw securely around the pipe during cutting, providing stable, accurate cuts on steel pipes — especially larger diameters — while the guide plate keeps the blade aligned on the cut line during operation without chain vise. An overload protector automatically stops the motor if it reaches excessive operating temperatures, protecting the machine during demanding sustained use.

The reversible blade holder design allows both Asada genuine HSS saw blades and standard saber saw blades (BI-METAL) to be used — simply reverse the blade holder to switch between blade types, giving the operator maximum flexibility across different pipe materials. A comprehensive range of optional replacement blades is available for all supported pipe sizes and materials.

FEATURES:

• 1,500W Universal Motor – Powerful single-phase motor delivers fast, reliable cutting through steel and stainless steel pipes across the full 1/2" to 8" capacity range.
• 32% Faster Cutting Speed – Significantly improved cutting performance over conventional pipe saw models for greater on-site productivity.
• Variable Speed Control (700–2,060 SPM) – 6-position dial allows precise stroke speed adjustment to match cutting material, pipe size, and wall thickness for optimal blade life.
• Slow-Speed Start Function – Ensures a controlled, safe start to each cut before reaching full operating speed.
• Cuts Installed Pipes Up to 8" – Designed specifically to cut pipes already installed in position without dismantling — ideal for renovation, maintenance, and site modification work.
• Steel & Stainless Steel Pipe Compatible – Handles steel pipe 1/2"–8" and stainless steel pipe 1/2"–8" (3mm wall or less) with appropriate blade selection.
• Lightweight at 3.9kg – Compact and light for comfortable use in confined spaces such as ceiling voids, under roofs, and tight mechanical rooms.
• Reversible Blade Holder – Accepts both Asada genuine HSS saw blades and standard BI-METAL saber saw blades by simply reversing the blade holder — no additional tools required.
• Included Chain Vise – Secures the saw to the pipe for stable, accurate cutting — especially recommended for steel pipes 2-1/2" and larger.
• Robust Gear Structure – Heavy-duty gear design ensures long-term durability and reliable performance under sustained professional use.
• Overload Protector – Automatically stops the motor at excessive temperatures to protect against burnout during heavy or sustained cutting operations.
• Double-Insulated Construction – Provides added electrical safety during operation on site.
• 26mm Stroke Length – Optimized stroke for efficient, controlled material removal across the full pipe capacity range.

APPLICATIONS:

• Cutting installed steel and stainless steel pipes in plumbing and piping systems
• Pipe renovation, modification, and maintenance work
• Cutting angle steel and structural steel sections
• Confined space pipe cutting in ceiling voids, wall cavities, and mechanical rooms
• Fire protection, HVAC, and mechanical piping installation and modification

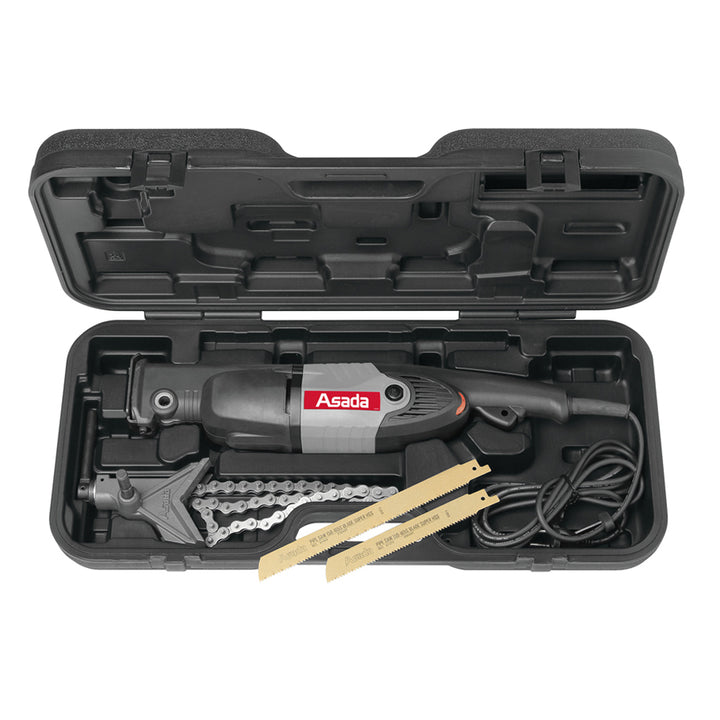

WHAT'S IN THE BOX:

• 1 x Asada PS200SP Pipe Saw (Main Body)
• 1 x Super HSS Saw Blade 200×8T (No.61371) — for up to 4" stainless steel pipe
• 1 x Super HSS Saw Blade 270×8T (No.61459) — for up to 6" stainless steel pipe
• 1 x Chain Vise (No.PS480)
• 1 x Allen Wrench No.4 (No.86002)
• 1 x Plastic Carry Case (No.PS443)

*For cutting 8" pipe, optional saw blade 320mm × 6/8T (No.61471 for steel / No.61486 for stainless) is required.
