Bosch D-Tect 200 C Professional Wall Scanner / Detector (200mm)
HIGHLIGHTS: Bosch D-tect 200 C Professional Wall scanner / Detector ( 200mm ) The wallscanner for exceptional results: top performance and easy documentation Bosch Radar Technology and modern user interface for...
Guaranteed Safe Checkout
INSTALLMENT payment is available via BILLEASE (Click for Details).
- Bosch D-tect 200 C Professional Wall scanner / Detector ( 200mm )
- The wallscanner for exceptional results: top performance and easy documentation
- Bosch Radar Technology and modern user interface for precision, higher safety, and clear illustration of detected objects
- Multiple views flexibly offer best results in various situations

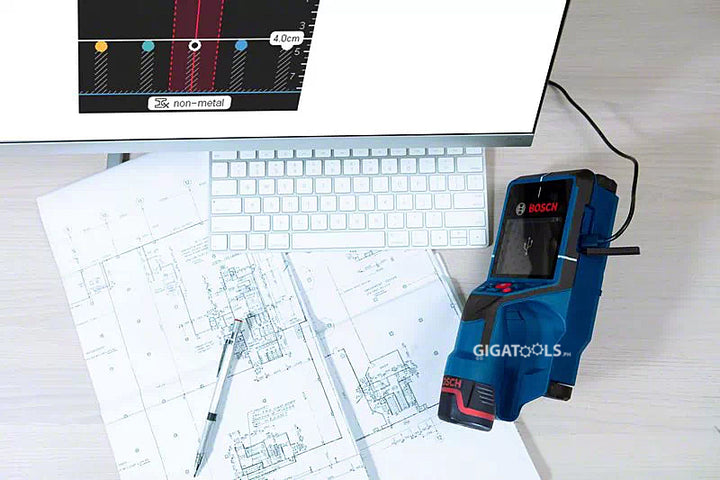

- Screenshot feature supports quick and easy documentation; screenshots are downloadable via USB-C™ and SD card slot
- Why this tool?
- Simple user interface with three self-explanatory selection buttons for various measurement scenarios
- Detects objects up to a material depth of 12 cm
- Audible and visual warning signals when objects are detected in the wall
- Product Highlights

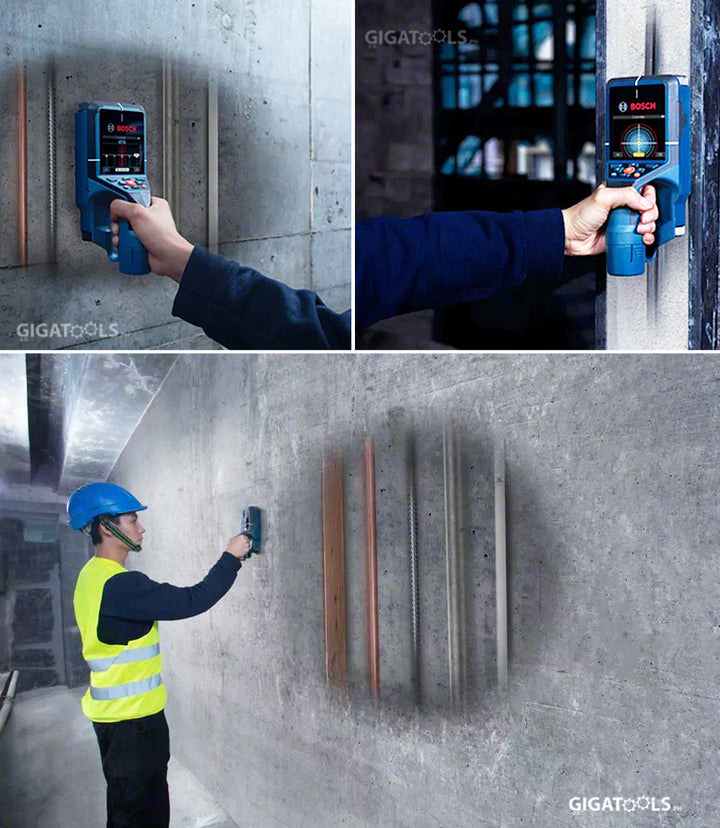

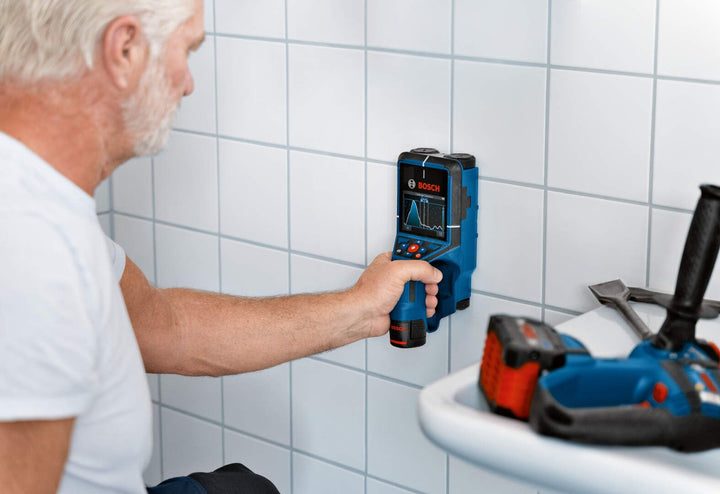

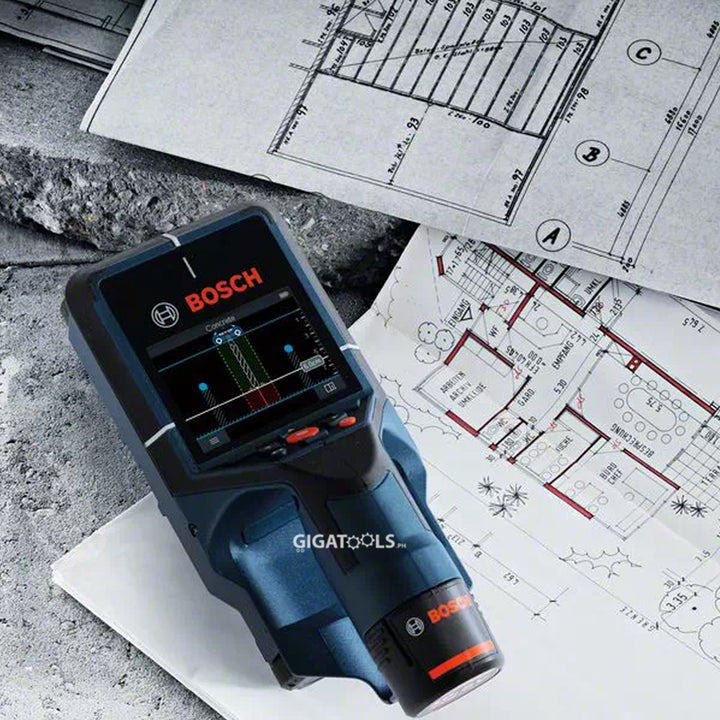

- The D-tect 200 C Professional detects all common objects and illustrates them clearly, while making documentation easy. Equipped with Bosch Radar Technology and an improved user interface, it stands for safer and more precise construction work. Multiple views allow for conveniently choosing the best option for different applications, such as Spot View, that makes detection in hard-to-reach locations especially easy. To provide solid evidence, the wallscanner´s innovative screenshot feature enables quick documentation.
- Equipment & Application

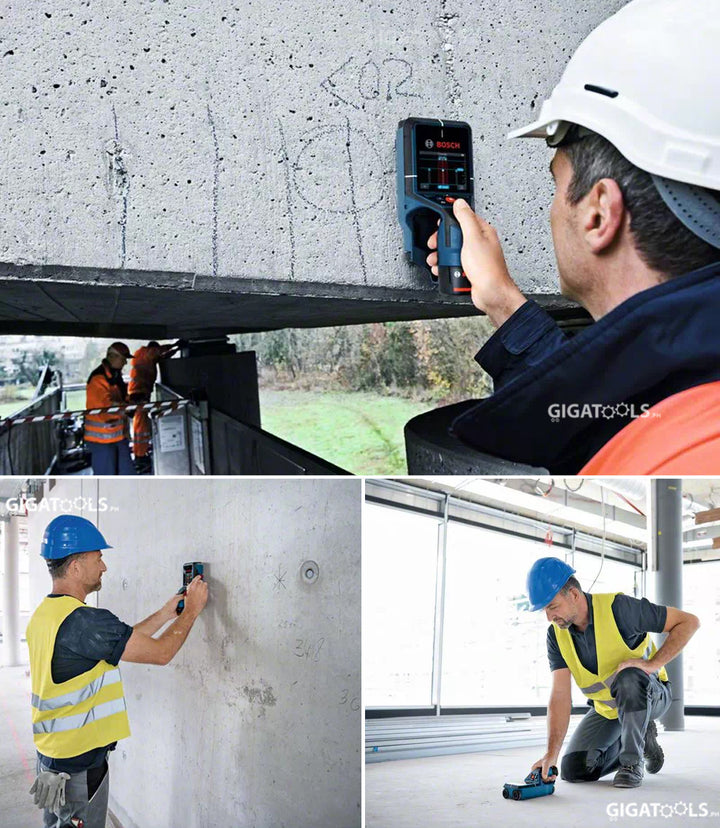

- The D-tect 200 C Professional supports both indoor and outdoor jobs, prevents damage during drilling, and measures concrete coverage.
- Additional Information
- The wallscanner detects objects in depths up to 20 cm and indicates the object´s depth.

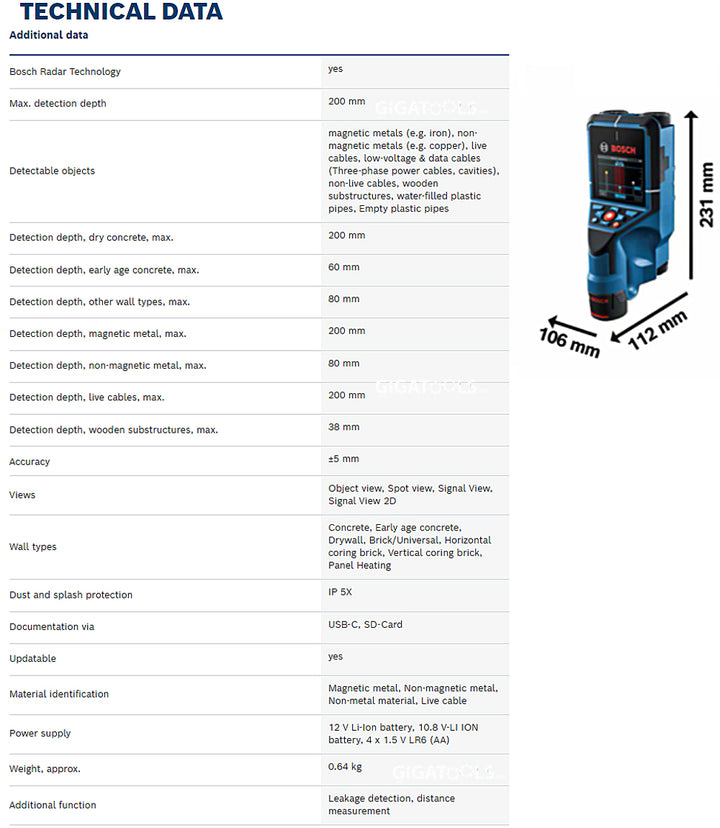

| Bosch Radar Technology | yes |
| Max. detection depth | 200 mm |
| Detectable objects | magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, low-voltage & data cables (Three-phase power cables, cavities), non-live cables, wooden substructures, water-filled plastic pipes, Empty plastic pipes |
| Detection depth, dry concrete, max. | 200 mm |
| Detection depth, early age concrete, max. | 60 mm |
| Detection depth, other wall types, max. | 80 mm |
| Detection depth, magnetic metal, max. | 200 mm |
| Detection depth, non-magnetic metal, max. | 80 mm |
| Detection depth, live cables, max. | 200 mm |
| Detection depth, wooden substructures, max. | 38 mm |
| Accuracy | ±5 mm |
| Views | Object view, Spot view, Signal View, Signal View 2D |
| Wall types | Concrete, Early age concrete, Drywall, Brick/Universal, Horizontal coring brick, Vertical coring brick, Panel Heating |
| Dust and splash protection | IP 5X |
| Documentation via | USB-C, SD-Card |
| Updatable | yes |
| Material identification | Magnetic metal, Non-magnetic metal, Non-metal material, Live cable |
| Power supply | 12 V Li-Ion battery, 10.8 V-LI ION battery, 4 x 1.5 V LR6 (AA) |
| Weight, approx. | 0.64 kg |
| Additional function | Leakage detection, distance measurement |
