HIGHLIGHTS:
- Bright green laser lines offer up to four times better visibility than red lines
- Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
- 33 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work.
SPECIFICATION:
Specification overview
- Laser diode : 500 – 540 nm, < 10 mW
- Operating temperature : -10 – 40 °C
- Storage temperature : -20 – 70 °C
- Laser class : 2
- Working range : 30 m
- Working range with receiver : 120 m (Diameter)
- Working range without receiver : 30 m (Radius)
- Accuracy : ± 0.2 mm/m
- Self-levelling range : ± 4°
- Levelling time : 4 s
- Dust and splash protection : IP 54
- Power supply : 12 V Li-Ion battery , 4 x 1.5 V LR6 (AA)
- Operating time (max.) : 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
- Tripod thread : 1/4", 5/8"
- Weight, approx. : 0.9 kg
- Colour of laser line : green
- Projection : 3 x 360° line
- Compatible laser receivers : LR 7
WHAT'S IN THE BOX:

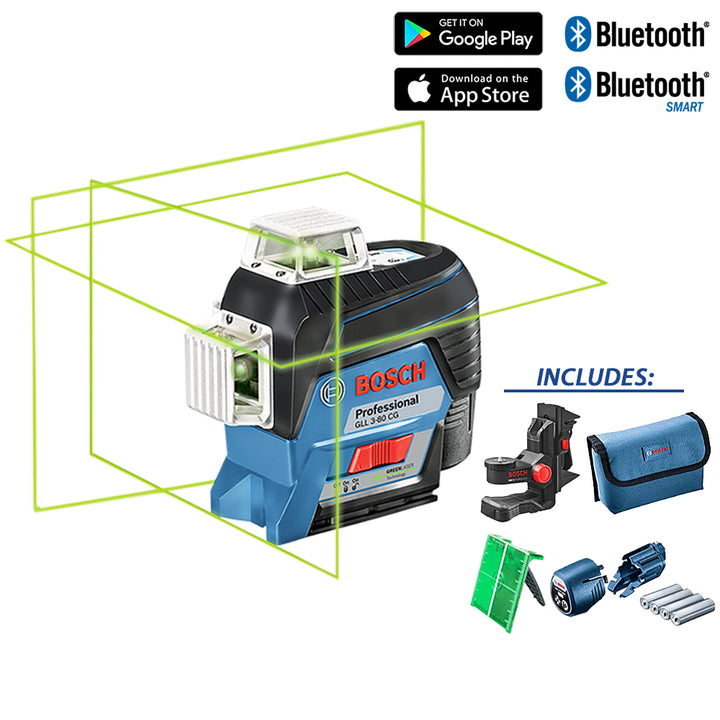

1 x Bosch GLL 3-80 CG Professional Line Laser
