HIGHLIGHTS:
- Outstanding visibility for indoor applications
- Green laser line: up to four times better visibility than a red line
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
SPECIFICATION:
- Additional data
- Working range with receiver, value: 300m
- Accuracy: ± 3.0 mm at 30 m* (*plus use-dependent deviation)
- Laser diode: 532 nm, < 5 mW
- Operating temperature: 0 – 40 °C
- Storage temperature: -20 – 70 °C
- Laser class: 3R
- Working range: 100m
- Working range with receiver: 300m (Diameter)
- Working range without receiver: 100m (Diameter)
- Self-levelling range: ± 5° (8%)
- Levelling time: 15s
- Dust and splash protection: IP 54
- Rotation speed: 150, 300, 600 rpm
- Power supply: NiMH battery pack, 2 x 1.5 V LR20 (D)
- Tripod thread: 5/8"
- Weight, approx.: 1.8 kg
- Color of laser line: green
- Compatible laser receivers: LR 1G
- Slope function: no
- Working range, value: 100m

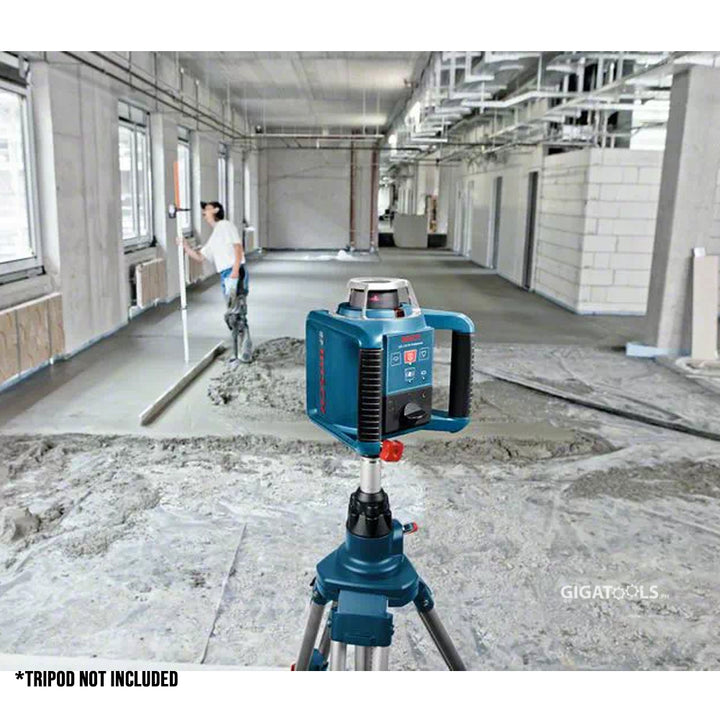

NOTE: TRIPOD NOT INLUDED
