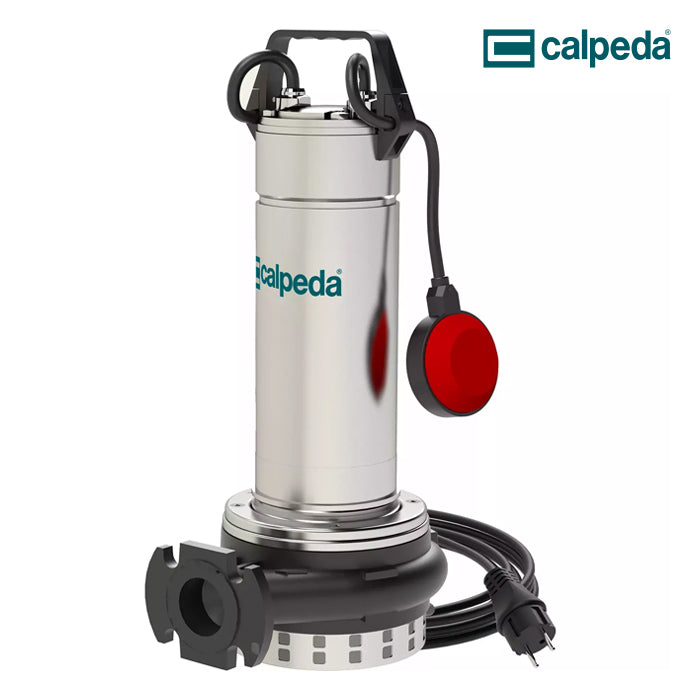

Calpeda GQR Submersible Drainage Pump, High Head, with Vertical or Horizontal Threaded Port (MADE IN ITALY)

₱25,015.00

CONSTRUCTION Single-impeller submersible drainage pump with open impeller. GQR: with vertical threaded delivery port (G 1 1/2). GQR 10 32 (QDC, Quick Disconnect): with horizontal flanged and threaded delivery port (DN...

Ask a Question

Model and Thread Type: GQRm (1-PH | Vertical)

GQRm (1-PH | Vertical)
GQRm (1-PH | Horizontal)
GQR (3-PH | Vertical)
GQR (3-PH | Horizontal)

Capacity: 0.6 HP

0.6 HP
0.75 HP
1 HP
1.2 HP
1.5 HP
2 HP
0.6 HP (w/ QDC)
0.75 HP (w/ QDC)
1 HP (w/ QDC)
1.2 HP (w/ QDC)
1.5 HP (w/ QDC)
2 HP (w/ QDC)
Add to Wishlist
20 People are viewing this right now

Guaranteed Safe Checkout

Responsive Image
Responsive Placeholder Image

Select billease during checkout.

Manufacturer_Partner
Calpeda
Description
CONSTRUCTION
Single-impeller submersible drainage pump with open impeller.
GQR: with vertical threaded delivery port (G 1 1/2).
GQR 10 32 (QDC, Quick Disconnect): with horizontal flanged and threaded delivery port (DN 32, PN 6 - G 1 1/2). Connections:  threaded ports ISO 228/1.
                       threaded ports NPT (ANSI/ASME B1.20.1) on request
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.

APPLICATIONS
  • For clean water containing solids up to 10 mm grain size.
  • For draining rooms or or emptying tanks.
  • Extraction of water from ponds, streams or pits and for rainwater collection. For irrigation purposes.

OPERATING CONDITIONS
  • Liquid temperature +5 °C to +35° C.
  • Maximum immersion depth: 5 m.
  • Minimum immersion depth: 205 mm.
  • Continuous duty (with submerged motor).

MOTOR
  • 2-pole induction motor, 60 Hz (n ≈ 3450 rpm).
  • GQR:   three-phase 220 V; three-phase 380 V; three-phase 440 V;.  Cable: H07RN-F, length 10 m, without plug, without float switch.
  • GQRm: single-phase 220 V, with float switch, with thermal protector only 220V.      Incorporated capacitor only 220V.  Cable: H07RN-F, length 10 m, with plug CEI-UNEL 47166.
  • Insulation class F.
  • Protection IP X8 (for continuous immersion)
  • Triple impregnation humidity-proof dry winding.
  • Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41.



MATERIALS:
Component Material
Pump casing Cast iron GJL 200 EN 1561
Impeller Cast iron GJL 200 EN 1561
Strainer Cast iron GJL 200 EN 1561
Motor jacket Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
Jacket cover Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
Casing cover Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
Handle Polypropylene (with frame in AISI 304)
Shaft Cr-Ni steel 1.4305 EN 10088 (AISI 303)
Mechanical seal: upper Ceramic alumina/Carbon/NBR
Mechanical seal: lower Ceramic alumina/Carbon/NBR
Seal lubrication oil Oil for food/pharmaceutical machinery


PUMP MODEL

 MOTOR

KW

HP
GQRm (10-10-60) 0.45 0.6
GQRm (10-12-60) 0.55 0.75
GQRm (10-14-60) 0.75 1
GQRm (10-16-60) 0.9 1.2
GQRm (10-18-60) 1.1 1.5
GQRm (10-20-60) 1.5 2
GQRm (10-32-10-60) 0.45 0.6
GQRm (10-32-12-60) 0.55 0.75
GQRm (10-32-14-60) 0.75 1
GQRm (10-32-16-60) 0.9 1.2
GQRm (10-32-18-60) 1.1 1.5
GQRm (10-32-20-60) 1.5 2
GQR (10-10-60) 0.45 0.6
GQR (10-12-60) 0.55 0.75
GQR (10-14-60) 0.75 1
GQR (10-16-60) 0.9 1.2
GQR (10-18-60) 1.1 1.5
GQR (10-20-60) 1.5 2
GQR (10-32-10-60) 0.45 0.6
GQR (10-32-12-60) 0.55 0.75
GQR (10-32-14-60) 0.75 1
GQR (10-32-16-60) 0.9 1.2
GQR (10-32-18-60) 1.1 1.5
GQR (10-32-20-60) 1.5 2




DOWNLOADS

GQR: Product Catalogue

GQR: Product Instructions
