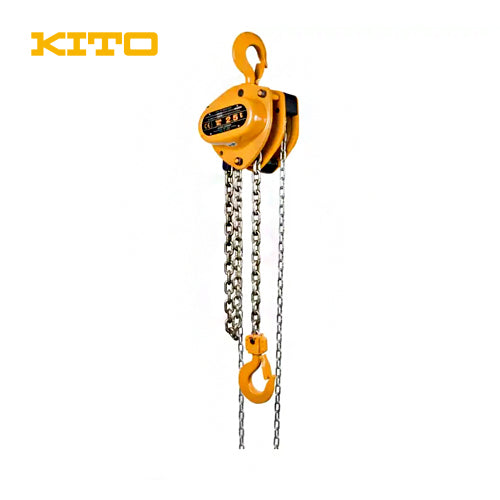

KITO CB Series Hand Chain Hoist / Chain Block (Made in Japan)

₱27,399.00

HIGHLIGHTS: The KITO CB hand chain hoist with premium components for the toughest industrial applications and a precision gearbox for low effort. With lifting capacities from 500 kg to 50 tons,...

Ask a Question

Capacity: 500kgs

500kgs
1000kgs
1500kgs
2000kgs
2500kgs
3000kgs
5000kgs
75000kgs
10000kgs
15000kgs
20000kgs

Extra Lift: Standard Set Only

Standard Set Only
Optional Extra Lift (per meter)
Add to Wishlist
7 People are viewing this right now

Guaranteed Safe Checkout

Responsive Image
Responsive Placeholder Image

Select billease during checkout.

Pickup available at Gigatools Warehouse

Usually ready in 2-4 days

Manufacturer_Partner
KITO
Description

HIGHLIGHTS:

The KITO CB hand chain hoist with premium components for the toughest industrial applications and a precision gearbox for low effort. With lifting capacities from 500 kg to 50 tons, it is used wherever easy handling and reliability in lifting are required.

  • Lighter, smaller, and more efficient, these hoists are invaluable for lifting applications.
  • A high-class load chain with a breaking strength of 1000 N/mm2 (100 kgf/mm2) is key to reliable and safe operation.
  • The dry-type braking mechanism provides excellent performance.
  • Shock-resistant gear case and hand wheel cover
  • Double-pawl spring mechanism for extra reliability

* 30 Tons - 50 Tons (CB-300 to CB-500) available upon request.
* Overload Limiter available as option.


FEATURES:

Gear Case and Hand Wheel Cover are Resistant to External
Shocks
Both sides of the hoist are covered with a thick steel gear case and reinforced wheel cover. These critical components are ideally shaped and highly rigid to maintain bearing alignment and withstand external shock.

Double-pawl Spring Mechanism for Extra Reliability
Even if one of the pawl springs gets damaged, the other continues functioning, ensuring reliable operation.

Easy-to-use Hooks
Specially heat-treated top and bottom hooks are strong and durable enough for the toughest of jobs. The design of the bottom hook, with relatively large dimensions, makes it easy to stabilize a load in the proper position.

Load Chain Guide Mechanism for Smoother Operation
A chain guide mechanism for the flanged load sheave and guide roller facilitate smooth movement of the load chain.

Stopper Prevents Excessive Lowering
The stopper assembly prevents excessive lowering of loads and keeps the load chain from coming off when over-lowered.

Double Enclosure to Seal Out Rainwater and Dust
The braking mechanism is enclosed in a double cover: the wheel and brake covers. These protective covers not only keep out external weather elements but also help prevent ingress of mud and dust into the internal mechanisms.

Secure and Reliable Mechanical Brake
KITO's dry-type asbestos-free mechanical brakes ensure strong braking performance.

Bearing Mechanism Increases Mechanical Efficiency
Unique ball and needle bearings provide a remarkable boost to mechanical efficiency; generating high output power with minimum manual input.

Highly Accurate and Durable Gears
Years of R&D have resulted in KITO's successful development of compact yet highly efficient and durable gears.

High Strength Load Chain
The load chain is made of an exclusively developed, heat-treated special steel alloy. The special steel is carefully selected and processed entirely at KITO's fully automated production facilities under the most stringent quality control. Thus, all KITO chains for manual hoist offer the same high breaking stress of 1000 N/mm2 (100 kgf/mm2), providing outstanding quality in terms of toughness and resistance to wear and corrosion.



SPECIFICATIONS:
CODE CAPACITY KG (TONS) STANDARD LIFT Hand Chain Folded Length CHAIN PULL TO LIFT FULL LOAD kgf LOAD CHAIN Ø (mm x Chain Fall Lines)
CB-005 500kgs (0.5 tons) 2.5 meters Lift 2.5m hand chain 24 kgf 5mm x 1
CB-010 1000kgs (1 ton) 2.5 meters Lift 2.5m hand chain 29 kgf 6.3mm x 1
CB-015 1500kgs (1.5 tons) 2.5 meters Lift 2.5m hand chain 35 kgf 7.1mm x 1
CB-020 2000kgs (2 tons) 3 meters Lift 3m hand chain 36 kgf 8mm x 1
CB-025 2500kgs (2.5 tons) 3 meters Lift 3m hand chain 33 kgf 9mm x 1
CB-030 3000kgs (3 tons) 3 meters Lift 3m hand chain 36 kgf 7.1mm x 2
CB-050 5000kgs (5 tons) 3 meters Lift 3.5m hand Chain 34 kgf 9mm x 2
CB-075 7500kgs (7.5 tons) 3.5 meters Lift 4m hand chain 35 kgf 9mm x 3
CB-100 10000kgs (10 tons) 3.5 meters Lift 4m hand chain 36 kgf 9mm x 4
CB-150 15000kgs (15 tons) 3.5 meters Lift 4.5m hand chain 37 kgf 9mm x 6
CB-200 20000kgs (20 tons) 3.5 meters Lift 4.5m hand chain 36 kgf x 2 9mm x 8





DOWNLOADS:

Kito CB Series: Product Catalog
