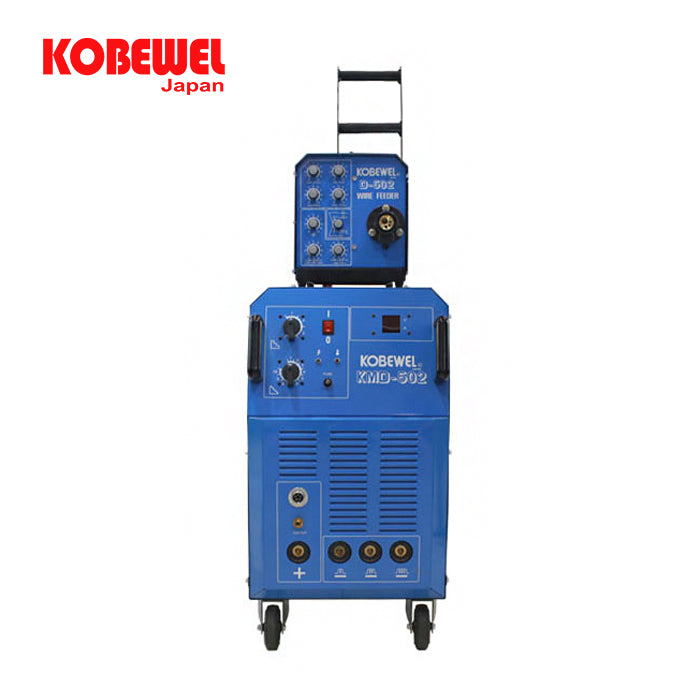

KOBEWEL KMD-502 GMAW/MIG/MAG Welding Machine 40-500A, with Separate Wire Feeder (Made in Japan)

HIGHLIGHTS:

The Kobewel KMD-502 GMAW/MIG/MAG Welding Machine is a heavy-duty industrial welding system built for sustained, high-output MIG/MAG welding applications. Featuring a wide welding range of 40–500A and a robust 390A welding current at 100% duty cycle, it delivers the power and reliability required for continuous industrial welding work without performance compromise.

The KMD-502 is configured with a separate wire feeder unit — distinct from the main power source housing, with its own dedicated dimensions (550 x 242 x 410mm) and weight (21kg), separate from the main machine (950 x 390 x 750mm, 150kg). This configuration is characteristic of industrial-grade MIG/MAG welding systems, allowing the wire feeder component to be positioned independently from the bulkier main power source for more flexible job site setup.

With a wire feed rate of 0.5–20 m/min, the KMD-502 handles both steel wire (0.8–2.4mm) and aluminum wire (0.9–2.4mm), making it suitable for a broad range of metal welding applications. Running on a 3-phase 380V supply with a maximum power consumption of 23kVA and a power factor of 0.96, the machine is engineered for efficient power delivery in demanding industrial environments. Insulation Class H and Type F cooling support sustained operation under heavy continuous use, while noise emission is kept to under 75 dB(A).

FEATURES:

• 40–500A Welding Range – Wide output range for flexible use across light to heavy-duty MIG/MAG welding tasks.
• 390A at 100% Duty Cycle – Sustained high-current output for continuous industrial welding without interruption.
• Separate Wire Feeder Unit – Wire feeder built as a distinct component with its own dimensions and weight, separate from the main power source.
• 0.5–20 m/min Wire Feed Rate – Wide adjustable wire feed range for precise control across different welding applications.
• Steel & Aluminum Wire Compatible – Handles steel wire (0.8–2.4mm) and aluminum wire (0.9–2.4mm) for versatile metal welding.
• 4 x 10 Voltage Settings – Multiple voltage step settings for fine control over welding parameters.
• 3-Phase 380V Power Supply – Industrial three-phase power configuration for efficient high-power operation.
• 0.96 Power Factor – High power factor for efficient electrical energy utilization.
• Insulation Class H – High-grade insulation rating for reliable performance under sustained thermal load.
• Type F Cooling – Cooling system designed to support continuous industrial-duty operation.
• Low Noise Emission (<75 dB(A)) – Quieter operation compared to typical industrial welding equipment.
• 35A Slow-Blow Main Fuse – Appropriately rated protection for the machine's electrical circuit.

WHAT'S IN THE BOX:

• 1 x Kobewel KMD-502 Main Welding Machine
• 1 x Separate Wire Feeder Unit
• 1 set MIG Torch #500 (3m Long) + 5 pcs Contact Tip
• 1 pc Earth Clamp + Cable (50mm², 3m Long)
• 1 pc CO2 Regulator with Heater (220V)
• 1 x Air Hose (3m Long)
