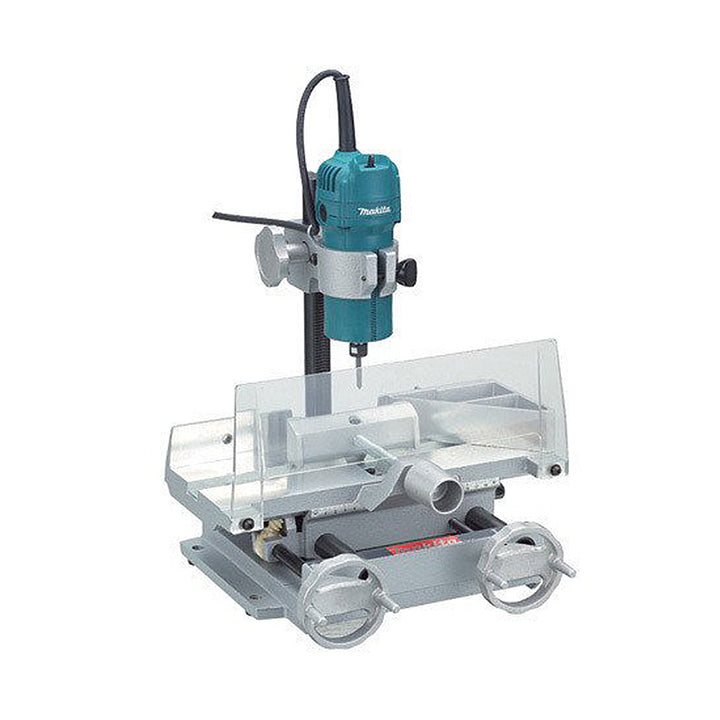

Makita 4403 ¼" Sash Router 530W

₱39,599.00₱94,950.00

HIGHLIGHTS: Continuous rating input : 530 W Collet capacity : 6 mm (¼") Maximum width of work : 123 mm (4-7/8") Maximum width at 45° : 77 mm (3") Maximum height...

Description

HIGHLIGHTS:

  • Continuous rating input : 530 W
  • Collet capacity : 6 mm (¼")
  • Maximum width of work : 123 mm (4-7/8")
  • Maximum width at 45° : 77 mm (3")
  • Maximum height of work : 185 mm (7¼")
  • Base transversal travel : 113 mm (4½")
  • Base longitude travel : 73 mm (2-7/8")
  • No load speed : 30,000 rpm
  • Dimensions : 32.7 cm x 35 cm x 35.5 cm (12-7/8" x 13-13/16" x 14")
  • Net weight : 16 kg (35.3 lbs)
  • Power supply cord : 2.5 meters (8.2 feet)

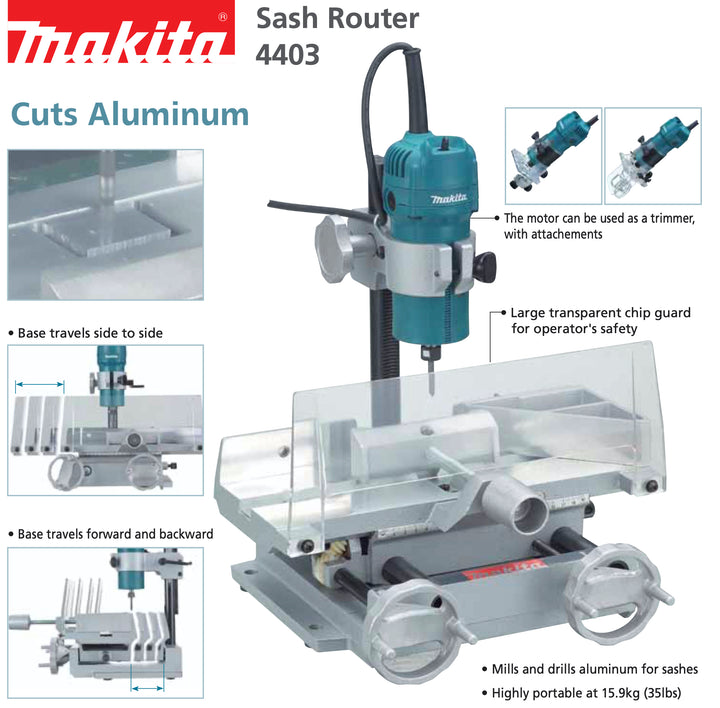

DESCRIPTION:
  • Mills and drills aluminum for sashes.
  • Trimmer model 3709 used as motor unit.
  • Large transparent chip guard for operator's safety.
  • Base travels side to side.
  • Base travels forward and backward.



SPECIFICATIONS:
Continuous rating input 530W
Capacity Collet : 6 mm or 1/4″
Max Width of Work 123 mm (4-7/8″)
Max Width of Work (45°) 77 mm (3″)
Max Height of Work 185 mm (7-1/4″)
Transverse Travel of Table (Bed) 113 mm (4-1/2″)
Longitudinal Travel of Table (Bed) 73 mm (2-7/8″)
No Load Speed (RPM) 30,000
Dimensions (L x W x H) 327x350x355 mm (12-7/8″x13-13/16″x14″)
Net weight 16 kg (35.3 lbs)
Power supply cord 2.5 m (8.2 ft)





INCLUDES:

Sash router bit (drill point), Angle Gauge, Wrench x2, Oil supply (country-specific), Collet cone (6mm or 1/4″)
