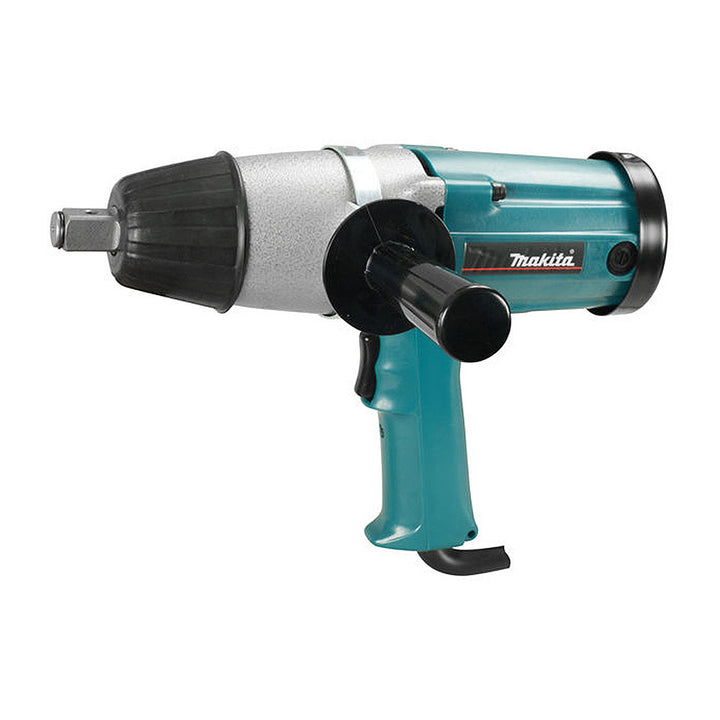

HIGHLIGHTS:
- Continuous rating input : 850 W
- Capacity on standard bolt : M16 - M22 (5/8" - 7/8")
- Capacity on high tensile bolt : M16 - M20 (5/8" - 3/4")
- Capacity on square drive : 19 mm (3/4")
- Impacts per minute : 1,600 ipm
- No load speed : 1,700 rpm
- Maximum fastening torque : 588 N.m (441 ft.lbs)
- Overall length : 327 mm (12-7/8")
- Net weight : 5.6 kg (12.3 lbs)
- Power supply cord : 2.5 meters (8.2 feet)
DESCRIPTION:
Powerful torque of 588 N.m (441 ft.lbs) for super-duty applications.
Rocket type reversing switch for easy one handed forward or reverse operation.
Slide handle adjusts 360° for operation convenience at any angle.
Externally accessible carbon brushes for easy maintenance.
Reverse rotation.
Double insulation.
FEATURES:
- Powerful 9.0 AMP motor delivers 1,700 RPM for heavy duty applications
- Precision gearing with ball and needle bearing construction for smooth and efficient power transmission
- Rocker switch with forward/reverse operation for user convenience
- Side handle rotates 360° for operator convenience
- Externally accessible brushes for easy replacement
- 1,600 IPM for increased productivity
- Impact-resistant aluminum gear case with rubber boot for increased durability
- Friction ring anvil with retaining ring hole for secure socket retention
- Steel tool case for convenient storage
- Double insulated
Continuous rating input | 850W |
Capacity | Standard Bolt: M16 – M22 (5/8″ – 7/8″) |
High Strength Bolt: M16 – M20 (5/8″ – 3/4″) | |
Square Drive | 19 mm (3/4″) |
No Load Speed (RPM) | 1,700 |
Impacts Per Minute (IPM) | 1,600 |
Max Fastening Torque | 588 N·m (441 ft.lbs.) |
Vibration Level | Impact tightening of fasteners of the maximum capacity of the tool: 16.5 m/s² |
Vibration K Factor | Impact tightening of fasteners of the maximum capacity of the tool: 2.0 m/s² |
Sound Pressure Level | 98 dB(A) |
Sound Power Level | 109 dB(A) |
Noise K Factor | 3 dB(A) |
Overall Length | 327 mm (12-7/8″) |
Net weight | 5.6 kg (12.2 lbs.) |
