HIGHLIGHTS:
- SJS™ technology is a mechanical clutch system that helps prevent motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
- Electric brake for maximum productivity
- Rubberized soft grip handle provides increased operator comfort
- Rear handle trigger switch with no lock-on feature
- Tool-less wheel guard for quick and easy adjustments
- Spiral bevel gears for smoother rotations and a more efficient transfer of energy
- Zig-zag varnish protects the armature coil from dust and debris for longer motor life
- Labyrinth construction prevents debris from penetrating the motor, bearings and gears for longer tool life
- Externally accessible brushes for greater serviceability
SPECIFICATION:
- Continuous rating Input - 1,050W
- Capacity - Depressed Center Wheel: 150mm (6")
- Capacity - Cut-off Wheel: 150mm (6")
- Capacity - Diamond Cutting Wheel: 150mm (6")
- Capacity - Wire Cup Brush: 90mm (3-1/2")
- No load speed (RPM) - 10,000
- Net weight - 3.0kg (6.7lbs)
- Power supply cord - 2.5m (8.2f)
- Spindle - M14x2.0
DOWNLOAD PRODUCT INFORMATION:
Parts Diagram
Parts List
Introduction Manual
WHAT'S IN THE BOX:

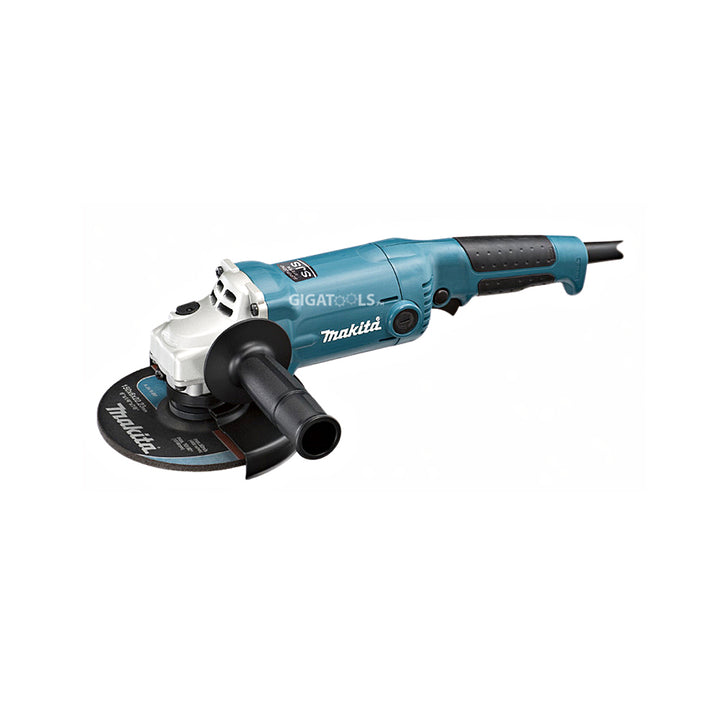

1x Makita GA6020 Angle 150mm (6″) 1,050W
1x Depressed center wheel
1x Lock nut wrench
1x Grip
