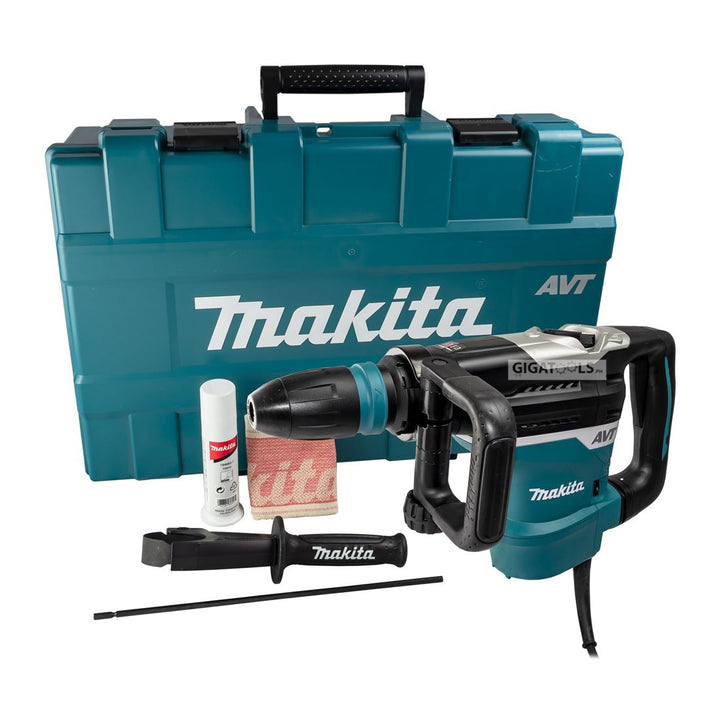

Makita HR4013C Rotary Hammer 40mm (1-9/16″) 8 J SDS-MAX Shank 1,100W with AVT in Carrying Case

₱29,939.00

HIGHLIGHTS: The Makita HR4013C features class leading technology resulting in extra comfort and unrivalled low vibration of just 5.0m/s2, which makes this the worlds first 8 hour SDS-MAX rotary hammer. The...

Description

HIGHLIGHTS:

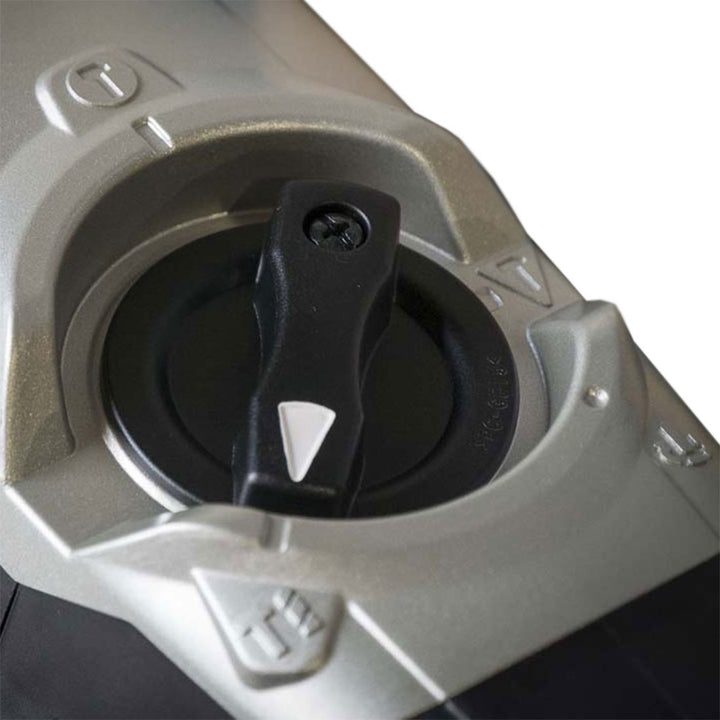

The Makita HR4013C features class leading technology resulting in extra comfort and unrivalled low vibration of just 5.0m/s2, which makes this the worlds first 8 hour SDS-MAX rotary hammer. The unit is lightweight at just 6.8kg and is well balanced with rubberised grips and a vibration absorbing back handle. Features include a one touch sliding chuck for easy bit change, a torque limiter to protect the user from snagging, electronic speed control with constant speed to avoid stalling under load and soft start to make the user experience more comfortable. The mode lock lever is located on top of the motor housing and recessed to help prevent damage when laying the unit down and now features a lock-on switch for constant chiselling, trigger mode for intermittent chiselling, bit angle setting to select the perfect chisel angle and rotary hammer mode. "Soft No Load" reduces vibration of the tool body when idling which results in decreased vibration to the operator's hands and also minimises deflection when lining the bit/chisel.

Anti vibration technology (AVT) protects the user from unwanted strain and works in 3 separate ways delivering unrivalled low vibration:

  • Vibration absorbing housing
  • Active dynamic vibration absorber
  • Damper Spring



FEATURES:

  • Powerful 1,100 W motor delivers 8.0 J of impact energy to handle the most demanding applications
  • Anti-Vibration Technology (AVT) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 5 m/s²
  • Air actuated counterbalance directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the drive piston actively reducing vibration
  • Vibration absorbing housing features a spring loaded main handle and upper housing that move independently of the motor and drive mechanism effectively isolating most of the vibration away from the user
  • Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations from the drill bit
  • Lock-on or trigger activation in “Chipping Only” mode with a push button start/stop control
  • Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
  • Soft start suppresses start-up reaction for more control and better accuracy
  • LED service light notifies the user approximately 8 hours before the brushes need to be replaced
  • LED power light indicates switch failure or cord damage
  • Variable speed control dial enables user to match the speed to the application for greater versatility
  • Torque limiting clutch engineered to minimize gear damage by automatically disengaging gears if the bit binds
  • Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
  • Depth gauge for increased drilling consistency
  • Double insulated



SPECIFICATIONS:
Continuous rating input 1,100W
Impact Energy EPTA-Procedure 05/2009: 8 J
Our experimental conditions: 11.4 J
Capacity Concrete (w/ TCT Bit): 40 mm (1-9/16″)
Concrete (w/ Core Bit): 105 mm (4-1/8″)
Blows Per Minute (BPM) 1,450 – 2,900
No Load Speed (RPM) 250 – 500
Sound Pressure Level 92 dB(A)
Sound Power Level 103 dB(A)
Noise K Factor 3 dB(A)
Vibration Level Chiselling Function w/ Side Handle: 4.5 m/s²
Vibration K Factor Chiselling Function w/ Side Handle: 1.5 m/s²
Vibration Level Chiselling Funtion w/ Side Grip: 4.5 m/s²
Vibration K Factor Chiselling Funtion w/ Side Grip: 1.5 m/s²
Vibration Level Hammer Drilling into Concrete: 5 m/s²
Vibration K Factor Hammer Drilling into Concrete: 1.5 m/s²
Dimensions (L x W x H) 479 x 112 x 263 mm (18-11/16 x 4-3/8 x 10-3/8″)
Net weight 6.8 – 6.9 kg (14.9 – 15.3 lbs.)
Power supply cord 5.0 m (16.4 ft)
