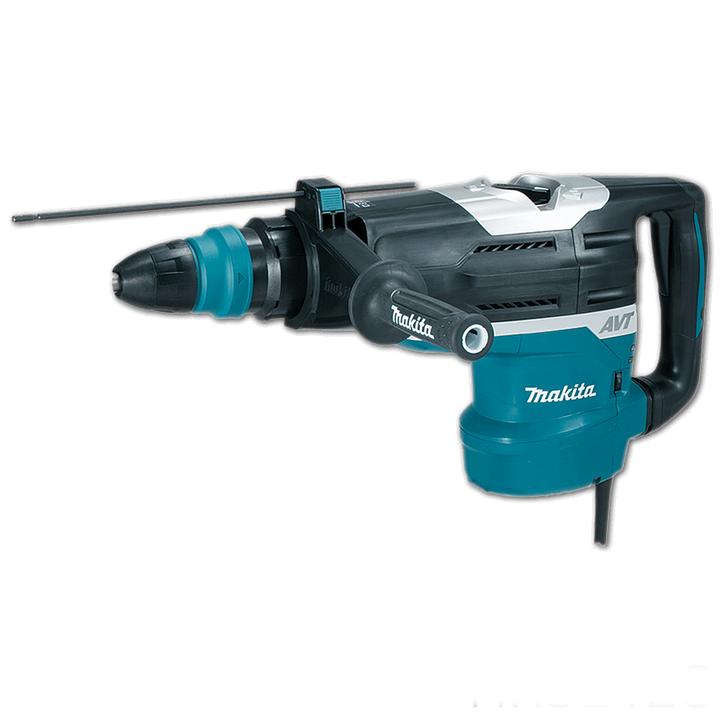

Makita HR5212C Rotary Hammer 52mm (2-1/16″) 20 J SDS-MAX Shank 1,510W

₱40,799.00

HIGHLIGHTS: The HR5212C is engineered for a range of concrete applications including drilling/coring through-holes for pipes, setting larger anchors, securing tilt-wall supports, small chipping applications, and more. It is ideal for...

Description

HIGHLIGHTS:

The HR5212C is engineered for a range of concrete applications including drilling/coring through-holes for pipes, setting larger anchors, securing tilt-wall supports, small chipping applications, and more. It is ideal for a range of trades including masons, concrete contractors, demolition contractors, plumbers, electricians, sprinkler installers, and general contractors seeking a best-in-class rotary hammer.

The 2” AVT® Rotary Hammer (model HR5212C) has over 45% less vibration than the previous model. It is engineered with enhanced Anti-Vibration Technology (AVT®), a synchronized three-component system for significantly less vibration. The result of the enhanced AVT® is a category-leading vibration rating of 9m/s².

The powerful 15 AMP motor delivers 14 ft. lbs. (19.1 Joules) of impact energy. An added feature is the option of lock-on or trigger-activated in the “chipping only” mode, with a push button start/stop control for more convenient operation.



FEATURES:

  • Powerful 1,510 W motor delivers 20 J of impact energy to handle the most demanding applications
  • Anti-Vibration Technology (AVT) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 9 m/s²
  • Air actuated counterbalance directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the drive piston actively reducing vibration
  • Vibration absorbing housing features a spring loaded main handle and upper housing that move independently of the motor and drive mechanism effectively isolating most of the vibration away from the user both at the rear handle and side handle
  • Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations from the drill bit
  • Lock-on or trigger activation in “Chipping Only” mode with a push button start/stop control
  • Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
  • Soft start suppresses start-up reaction for more control and better accuracy

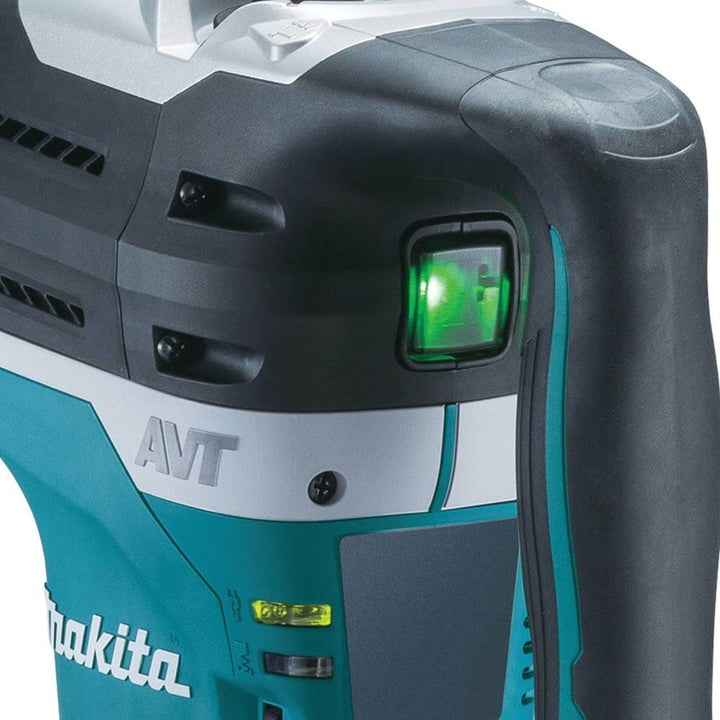

  • LED service light notifies the user approximately 8 hours before the brushes need to be replaced
  • LED power light indicates switch failure or cord damage
  • Variable speed control dial enables user to match the speed to the application for greater versatility
  • Torque limiting clutch engineered to minimize gear damage by automatically disengaging gears if the bit binds
  • Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
  • Depth gauge for increased drilling consistency
  • Double insulated



SPECIFICATIONS:
Continuous rating input 1,510W
Impact Energy EPTA-Procedure 05/2009: 20 J
Our experimental conditions: 21 J
Capacity Concrete (w/ TCT Bit): 52 mm (2″)
Concrete (w/ Core Bit): 160 mm (6-5/16″)
Blows Per Minute (BPM) 1,100 – 2,250
No Load Speed (RPM) 150 – 310
Sound Pressure Level 98 dB(A)
Sound Power Level 109 dB(A)
Noise K Factor 3 dB(A)
Vibration Level Chiselling Function w/ Side Handle: 7 m/s²
Vibration K Factor Chiselling Function w/ Side Handle: 1.5 m/s²
Vibration Level Chiselling Funtion w/ Side Grip: 8 m/s²
Vibration K Factor Chiselling Funtion w/ Side Grip: 1.5 m/s²
Vibration Level Hammer Drilling into Concrete: 9 m/s²
Vibration K Factor Hammer Drilling into Concrete: 1.5 m/s²
Dimensions (L x W x H) 599 x 140 x 287 mm (23-1/2 x 5-1/2 x 11-1/4″)
Net weight 11.9 – 12.0 kg (26.2 – 26.5 lbs.)
Power supply cord 5.0 m (16.4 ft)
