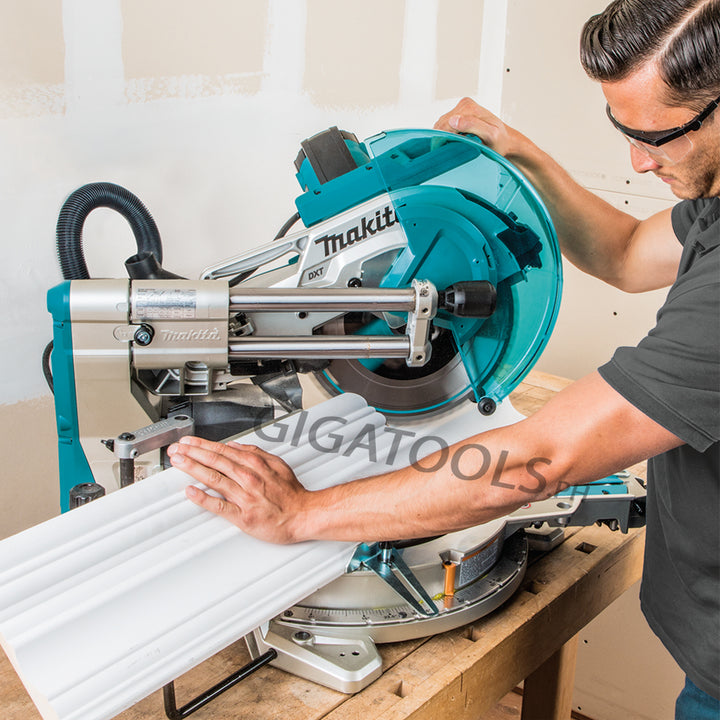

Makita LS1219L 12" Dual‑Bevel Sliding Compound Miter Saw with Laser

₱32,819.00₱82,040.00

HIGHLIGHTS: Blade Diameter :  12" Arbor :  1" Cutting Capacity (miter 90°) :  3-5/8" x 15" Cutting Capacity (miter 45°, L/R) :  3-5/8" x 10-1/2" No Load Speed :  3,200 RPM...

Description

HIGHLIGHTS:

  • Blade Diameter :  12"
  • Arbor :  1"
  • Cutting Capacity (miter 90°) :  3-5/8" x 15"
  • Cutting Capacity (miter 45°, L/R) :  3-5/8" x 10-1/2"
  • No Load Speed :  3,200 RPM
  • Dimensions (LxWxH) :  35-1/4" x 26-1/8" x 28-1/2"
  • Net Weight :  65 lbs.
  • Shipping Weight :  6 lbs.



FEATURES:

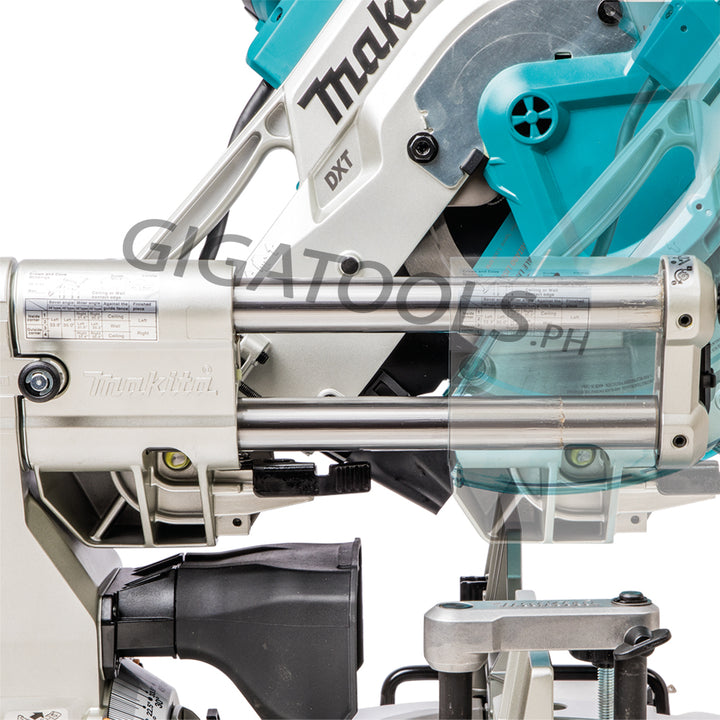

  • Unique 2-Steel Rail Sliding System design offers single slide-glide operation; reduced saw footprint allows operation flush against a wall.
  • Increased capacity for up to 8" crown molding (vertically nested), 6-3/4" baseboard (vertical), and 15" crosscuts at 90°
  • In-front bevel lock for convenient operation.
  • Dual dust collection ports provide excellent dust extraction performance.
  • Innovative direct drive motor and guard system is engineered for increased vertical cutting capacity (6-3/4")
  • Linear ball bearing system engineered to deliver "dead-on" accurate cuts
  • Less weight (65 lbs.) and the most compact design in its class for easy jobsite portability.
  • Powerful 15.0 AMP direct drive motor requires less maintenance and delivers 3,200 RPM
  • Large-sized aluminum base improves stability of material for efficient cutting
  • Soft start suppresses start-up reaction for smooth start-ups and longer gear life
  • Miters 0-60° left and right; bevels 0-48° left and right
  • Positive miter stops at: 0°, 15°, 22.5°, 31.6°, 45°, and 60° left or right
  • Electronic speed control maintains constant speed under load for smoother, higher quality cutting
  • Integrated upper and lower 5-1/2" tall fence system offers added rigidity for more precise miter and bevel cuts
  • Built-in laser clearly indicates line-of-cut whether blade is turning or not; on-off switch and micro-adjustments for precise "left-of-blade" or "right-of-blade" cutting.
  • Ergonomic rubberized horizontal D-handle design for better fit and added comfort
  • Replaceable stainless steel miter scale features large and easy-to-read markings
  • Easy-to-read dual bevel scale for more precise adjustments
  • See-through blade guard system for greater visibility of blade and line of cut
  • Easy blade changes for increased efficiency
  • Oversized trigger switch for better fit, added comfort and easier operation
  • Easy one-touch slide lock for convenience
  • Simple 90º turn-of-the-knob miter angle lock/unlock mechanism.



SPECIFICATIONS:
Continuous rating input 1,800W
Blade Diameter 305 mm (12″)
Hole Diameter European Countries: 30 mm (1-3/16″)
Others: 25.4 mm (1″)
Bevel Angle 48° L / 48° R
Miter Angle 60° L / 60° R
Max Cutting Capacity (Bevel/Miter) 90°/90°: 92 x 382 mm (3-5/8″ x 15″)
90°/90°: 107 x 363 mm (4-1/4″ x 14-1/4″)
90°/90° w/ 38 mm auxiliary wood: 120 x 292 mm (4-3/4″ x 11-1/2″)
90°/90° w/ 38 mm auxiliary wood on base: 38 x 416 mm (1-1/2″ x 16-3/8″)
90°/45°LR: 92 x 268 mm (3-5/8″ x 10-1/2″)
90°/45°LR: 107 x 255 mm (4-1/4″ x 10″)
90°/45°LR w/ 25 mm auxiliary wood: 120 x 212 mm (4-3/4″ x 8-3/8″)
90°/45°LR w/ 38 mm auxiliary wood on base: 38 x 292 mm (1-1/2″ x 11-1/2″)
90°/60°LR: 92 x 185 mm (3-5/8″ x 7-1/4″)
90°/60°LR: 107 x 178 mm (4-1/4″ x 7″)
45°L/90°: 61 x 382 mm (2-3/8″ x 15″)
45°L/90°: 71 x 363 mm (2-13/16″ x 14-1/4″)
45°L/90° w/ 38 mm auxiliary wood: 80 x 292 mm (3-1/8″ x 11-1/2″)
45°L/45°LR: 61 x 268 mm (2-3/8″ x 10-1/2″)
45°L/45°LR: 71 x 255 mm (2-13/16″ x 10″)
45°R/90°: 44 x 382 mm (1-3/4″ x 15″)
45°R/90°: 54 x 363 mm (2-1/8″ x 14-1/4″)
45°R/90° w/ 20 mm auxiliary wood: 61 x 325 mm (2-3/8″ x 12-3/4″)
45°R/45°LR: 44 x 268 mm (1-3/4″ x 10-1/2″)
45°R/45°LR: 54 x 255 mm (2-1/8″ x 10″)
Max Cutting Capacity Crown Molding Vertically Nested: 203 mm (8″)
Crown Molding Lying Flat: 320 mm (12-5/8″)
Base Board Against Fence: 171 mm (6-3/4″)
Base Board Lying Flat w/ auxiliary wood on base: 416 mm (16-3/8″)
No Load Speed (RPM) 3,200
Guide Fence Height 140 mm (5-1/2″)
Sound Pressure Level 91 dB(A)
Sound Power Level 100 dB(A)
Noise K Factor 3 dB(A)
Vibration Level 2.5 m/s² or less
Vibration K Factor 1.5 m/s²
Dimensions (L x W x H) 898x664x725 mm (35-1/4″x26-1/8″x28-1/2″)
Net weight 29.5 kg (65.0 lbs.)
Power supply cord 2.5 m (8.2 ft)





What's in the box:

1 x Makita LS1219L 12" Dual‑Bevel Sliding Compound Miter Saw with Laser, 1 x Manual.



360 DEGREES VIEW:
