HIGHLIGHTS:
- Variable speed by trigger
- 18mm stroke with cut capacity of up to 65mm in wood and 6mm in steel
- 3 orbital cutting settings
- Tool-less blade changes
Continuous rating input | 450W |
Max Cutting Capacity at 90° | Wood: 55 mm (2-3/16″) |
Steel: 6 mm (1/4″) | |
Length of Stroke | 26 mm (1″) |
Strokes Per Minute (SPM) | 0 – 3,100 |
Vibration Level | Cutting Boards: 6.5 m/s² |
Vibration K Factor | Cutting Boards: 1.5 m/s² |
Vibration Level | Cutting Sheet Metal: 7.5 m/s² |
Vibration K Factor | Cutting Sheet Metal: 1.5 m/s² |
Sound Pressure Level | 88 dB(A) |
Sound Power Level | 99 dB(A) |
Noise K Factor | 3 dB(A) |
Dimensions (L x W x H) | 219x85x191 mm (8-5/8″x3-3/8″x7-1/2″) |
Net weight | 2.5 kg (5.5 lbs.) |
Power supply cord | 2.0 m (6.6 ft.) |
DOWNLOAD PRODUCT INFORMATION:
M4302G_manual.pdf
WHAT'S IN THE BOX:

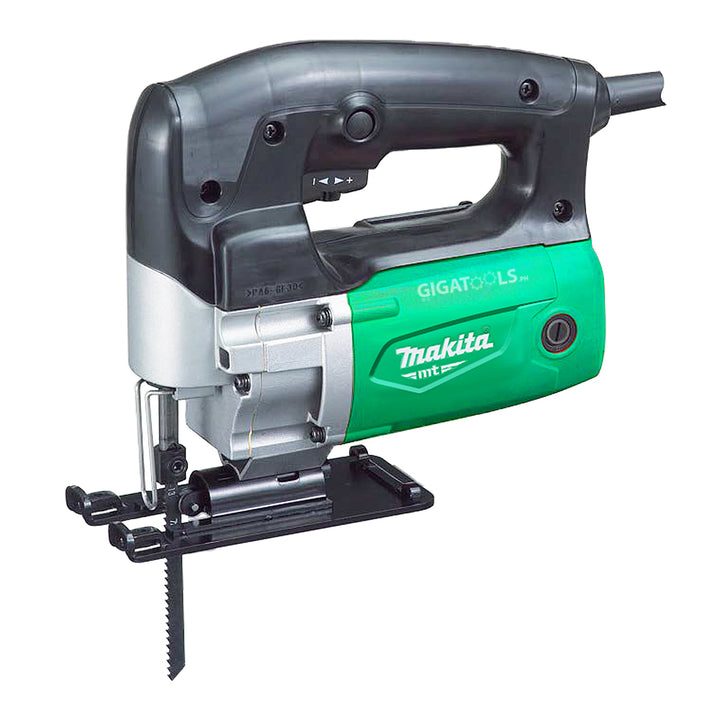

1x Makita M4302M Jig Saw 450W 18mm (1-1/16″)
1x Hex Wrench
