HIGHLIGHTS:
DowelJigKit™ contains everything you need to get started creating strong and accurate doweled joints. The self-centering jig and adjustable fence allow for precise dowel alignment and maximum joint strength. Use with wood boards from 1/2″ to 1-1/2” thick. Now you can perform one-handed alignment and skip the hassle of measuring and marking when drilling corner or edge joints.

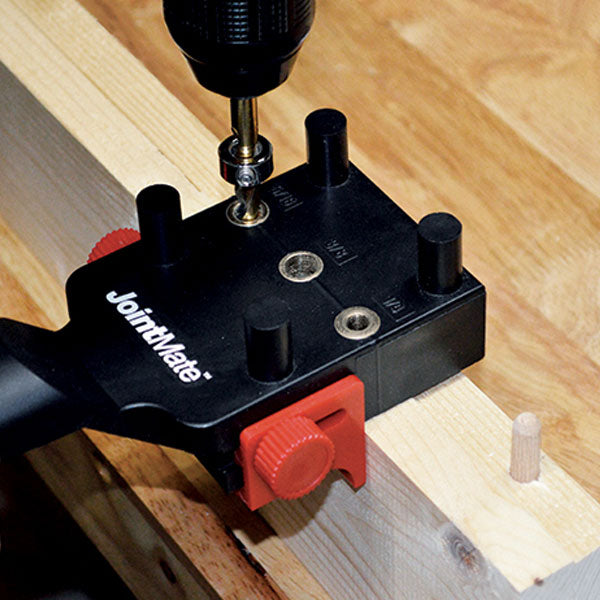

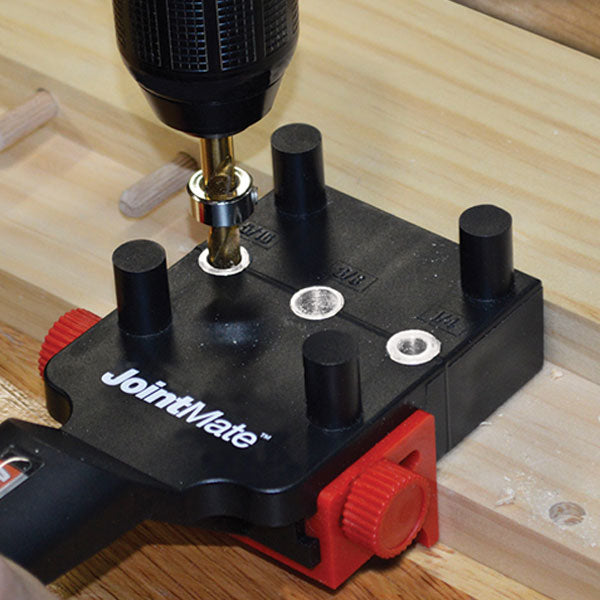

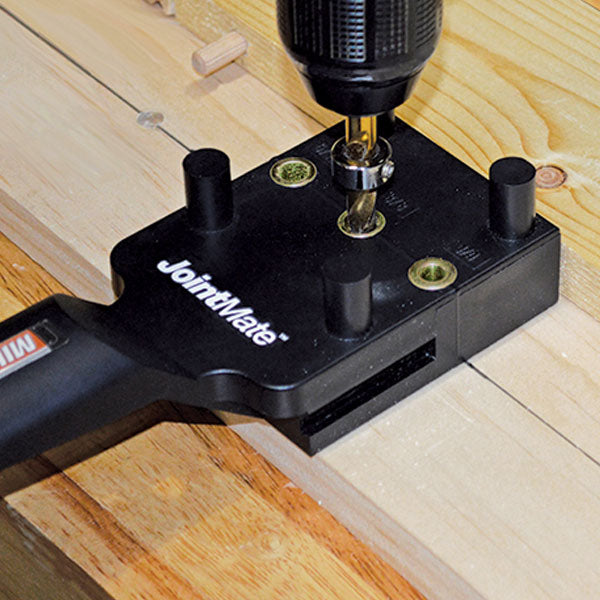

Self-Centering Post
- Accurate, one-handed alignment for maximum joint strength and precise dowel alignment
- Ensure accurate alignment when drilling for perfectly positioned dowels
- For longer doweling life
- Easily adjust to the depth of the board so that each hole will be precise from one to the next
- Compatible with 1/2″ to 1-1/2” thick lumber
- For durable and accurate location marking of dowel holes or in the second board being joined
- Chamfered ends add strength and endurance to your joined surfaces
- Includes 3 sizes – 1/4”, 5/16”, 3/8”
- Bits ensure pinpoint accuracy
- Includes 3 sizes – 1/4”, 5/16”, 3/8”
- For durable performance
- Includes 3 sizes – 1/4”, 5/16”, 3/8”
Board Thickness | Dowel Pin/Drill Bit |
1/2" - 5/8" | 1/4" |
5/8" - 3/4" | 5/16" |
3/4" - 1-1/2" | 3/8" |
Download Manual:
Milescraft Dowel Jig Kit: Manual
Drill Bushings, Stops, Bits, and Pin Sizes | 1/4”, 5/16”, 3/8” |
Minimum Board Width (not thickness) for 1/4" & 5/16" bushing | 2" |
Minimum Board Width (not thickness) for 3/8" bushing | 3-1/4" |
Closest distance for dowel from board end (for 1/4" and 5/16" bushing) | 1-1/8" |
Closest distance for dowel from board end (for 3/8") | 1-5/8" |

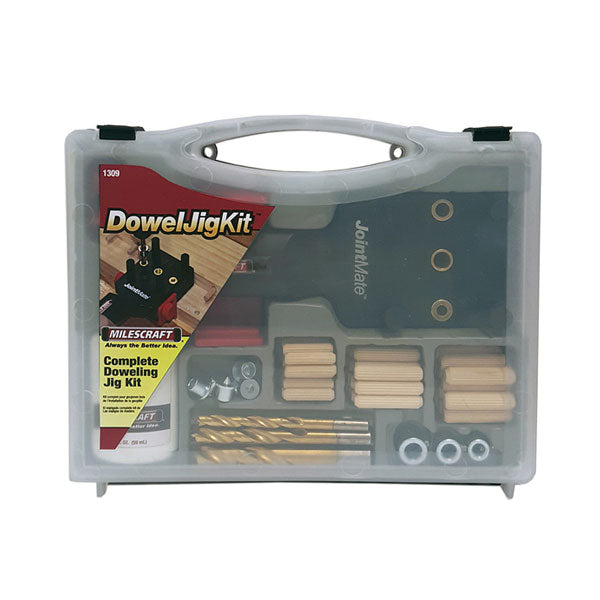

Includes | JointMate™, Dowel Pins, Dowel Centers, 3 Brad Point Bits, 3 Drill Stops, Allen Wrench, Wood Glue, Storage Case (82 piece kit) |
JointMate Body Material | ABS Plastic |
Weight | 1.86 lbs |
