Milescraft DrillMate Portable Drill Guide for 43mmØ (1368)

₱1,665.00

HIGHLIGHTS: A portable drill stand for use almost anywhere, now you can drill straight holes all the time. With the DrillMate™ drilling straight or angled holes, drilling on the edge of...

Ask a Question
Add to Wishlist
People are viewing this right now

Responsive Image
Responsive Placeholder Image

Select billease during checkout.

Manufacturer_Partner
Milescraft
Description

HIGHLIGHTS:

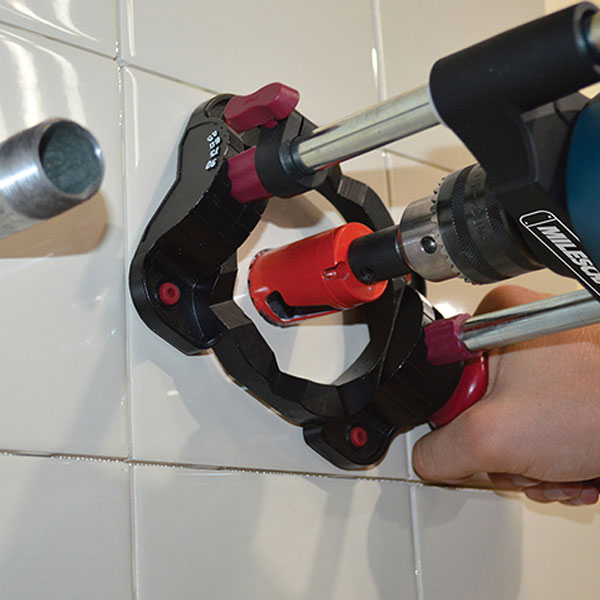

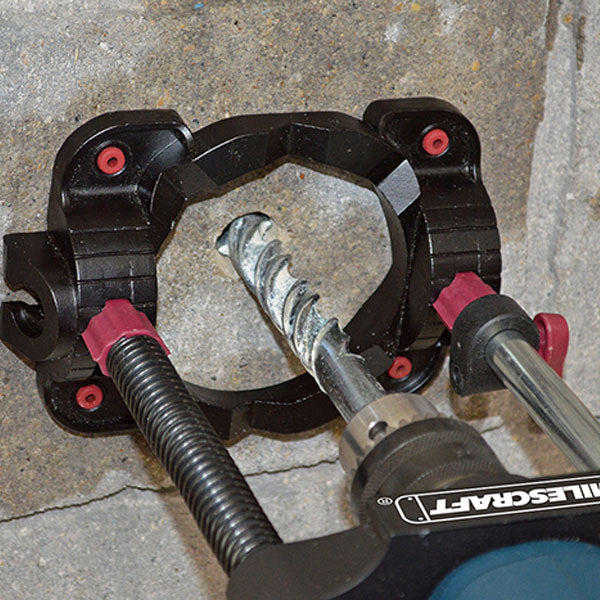

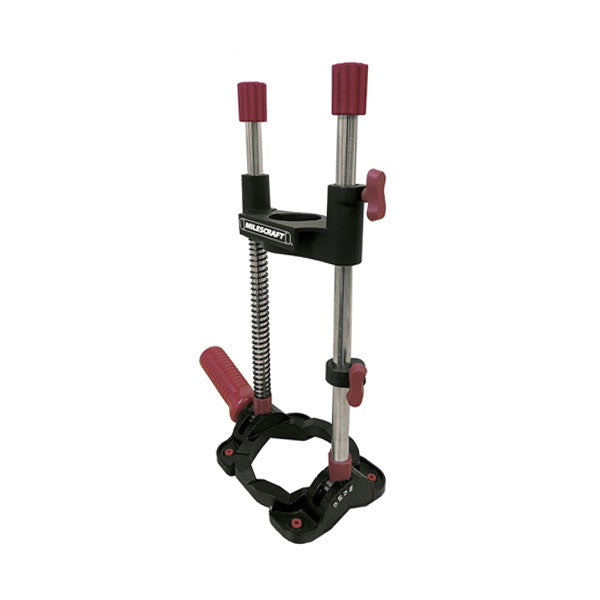

A portable drill stand for use almost anywhere, now you can drill straight holes all the time. With the DrillMate™ drilling straight or angled holes, drilling on the edge of a board or even round stock has never been easier. This all-metal construction DrillMate™ drill guide provides the precision of a drill press with the ease of a hand drill.

Metal Head

  • Accepts Euro style drills with 43 mm collar, not for use with US drills without neck

*For US drills with no neck, Milescraft offers the 1318 DrillMate™

Innovative Metal Base with Angle Readout

  • Self-centering base
  • Angle readout for setting drilling angles to 45°, 60°, 75° and 90°
  • V-groove for drilling on round stock
  • Non-slip TPE feet, prevent slipping and marring on the work surface
  • Mounting holes for mounting with screws when needed

Metal Angle Adjusters

  • Allows you to easily lock your selected drilling angle into place

Adjustable Stop Collar

  • For precise, repetitive drilling

Auxiliary Handle

  • Can be mounted in a fixed position on the base for maximum support no matter what drilling motion you are doing



        DOWNLOAD MANUAL:

        1368 DrillMate Manual – Metric (PDF)

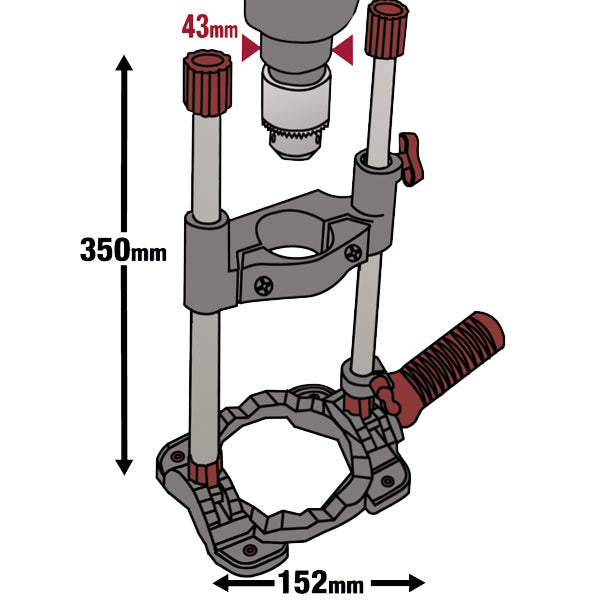

        SPECIFICATIONS:
        Material All Metal Body
        Guide Head Inside Diameter 1-3/4" (43mm)
        Guide Head Height 1" (25mm)
        Compatible with Euro style drills with 43 mm collar
        Base 5.5" (140mm) x 4.25" (108mm)
        Base Opening 3.5" (90mm) diameter
        Overall Height 14" (355mm)
        Guide Bar Diameter .55" (14mm)
        Inside Distance Between Guide Bars 3.98" (101.2mm)
        Weight 3.56 lbs
