Milescraft Edge and Mortise Guide (1274)

₱1,935.00

HIGHLIGHTS: The Edge&MortiseGuide™ is perfect for mortises, rabbets, dados, edge finishing and more! The Edge Guide has a large surface area for straight and curved edges for radial cuts. The Offset...

Ask a Question
Add to Wishlist
People are viewing this right now

Responsive Image
Responsive Placeholder Image

Select billease during checkout.

Manufacturer_Partner
Milescraft
Description

HIGHLIGHTS:

The Edge&MortiseGuide™ is perfect for mortises, rabbets, dados, edge finishing and more! The Edge Guide has a large surface area for straight and curved edges for radial cuts. The Offset Base is ideal for narrow boards, routing edges, and edge profiles. Included are two non-marring mortising pins for cutting mortises in varying board thicknesses.

Edge Guide

  • Can be used for many projects that require dado cuts, grooves, and rabbets
  • Compatible with plunge and fixed base routers

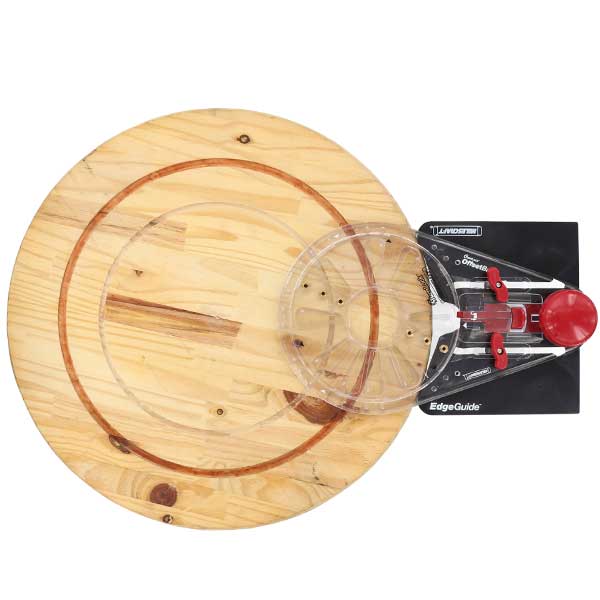

  • Large surface area for straight and curved edges for radial cuts
  • Straight edge has a maximum travel of approximately 5-1/2″

Mortise Guide

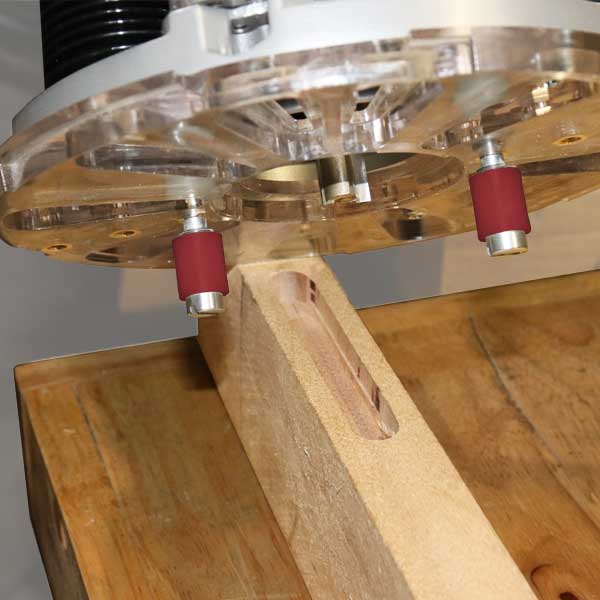

  • Includes two non-marring mortising pins for cutting mortises into varying board thicknesses

TurnLock™ BasePlate

  • Clear BasePlate for visibility of work area
  • Made from tough polycarbonate
  • 3 mortise locations for different board thicknesses
  • Centering pin included for fast accurate BasePlate installation
  • Includes common mounting screws for attachment to most routers

Offset Base

  • Built-in storage for mortise pins
  • Ideal for narrow boards, routing edges, and edge profiles
  • Clear 13″ offset base provides added stability during edge routing
  • Oversized handle is easy to grip providing superior control of your router
  • Thumb-activated lock/release mechanism enhances speed and safety when changing tools



          DOWNLOAD MANUAL:

          1224-1274 Edge and Mortise Guide Manual (PDF)



          SPECIFICATIONS:
          Includes Edge Guide, Base Plate, Offset Base, Centering Pin, 5/8" Bushing, Mortise Pins, Mounting Hardware, and Manual.
          Material Polycarbonate and ABS
          Weight 2 lbs.
