model 1319 (english system) - 1/4", 5/16", 3/8"
model 1382 (metric system) - 6mm, 8mm, 10mm

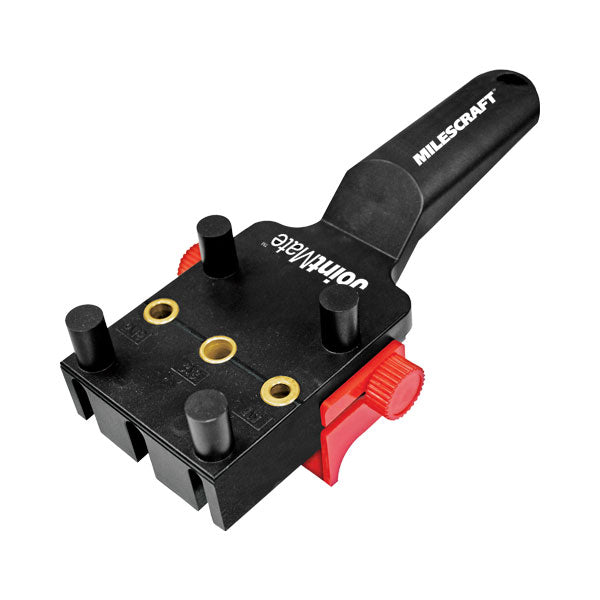

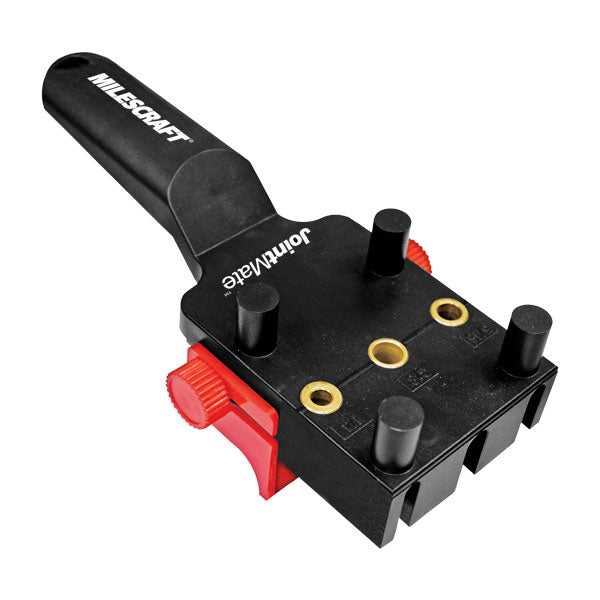

Perform one-handed alignment and skip the hassle of measuring and marking when drilling corner or edge joints with JointMate™. JointMate™ allows for quick and accurately doweled corner, edge or surface joints. With minimal set-up, and no exposed or covered mechanical fasteners, JointMate™ makes doweling easy.
- Accurate, one-handed alignment for maximum joint strength and precise dowel alignment
Hardened Steel Bushings
- Ensure accurate alignment when drilling for perfectly positioned dowels
- For longer doweling life
Adjustable Guide Fence
- Easily adjust to the depth of the board so that each hole will be precise from one to the next
|Bushing Sizes||1/4", 5/16", 3/8"|
|Minimum Board Width (not thickness) for 1/4" & 5/16" bushing||2"|
|Minimum Board Width (not thickness) for 3/8" bushing||3-1/4"|
|Closest distance for dowel from board end (for 1/4" and 5/16" bushing)||1-1/8"|
|Closest distance for dowel from board end (for 3/8")||1-5/8"|
|JointMate Body Material||ABS Plastic|
