Milescraft PocketJig100 Pocket Hole Jig Kit (1324)

HIGHLIGHTS:

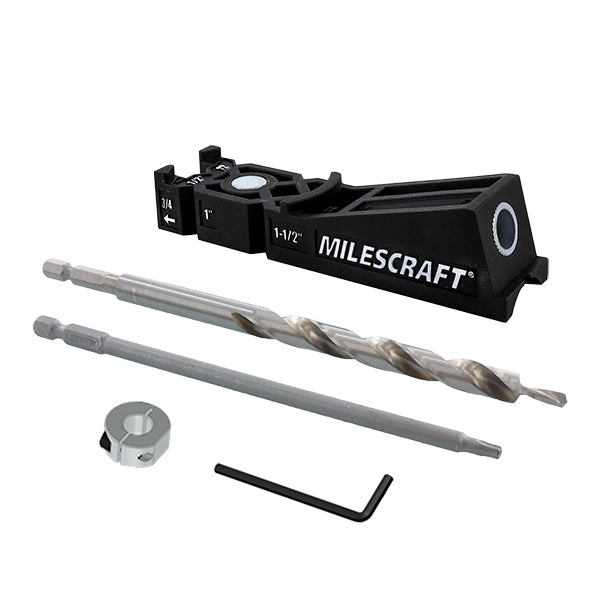

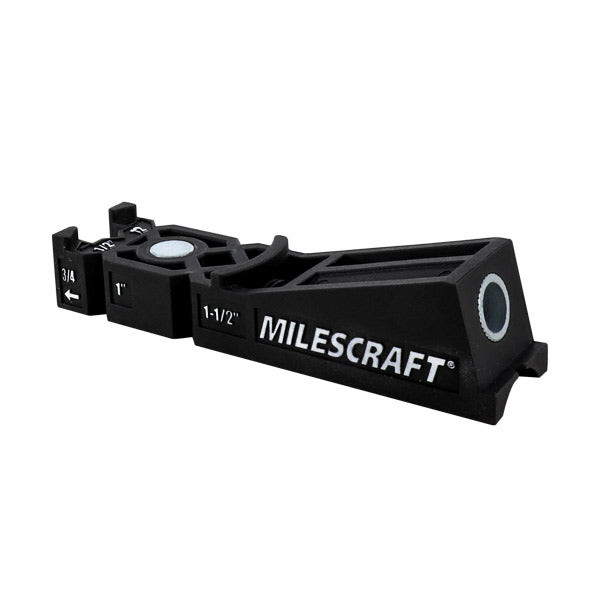

PocketJig100™ pocket hole jig allows you to connect your workpieces in a quick and timely manner or do repairs around your house. Small, compact design allows you to do applications where a small jig is required. Built-in board thickness locations for easy measurement and set-up of your workpieces, virtually eliminating the need for manual measurements. Everything you need to get started with your first pocket holes!

PocketJig100™ – Designed To Make Repairs Simple

• No fence and the small design allows you to get into some of the smallest places to make repairs to many joints

Hardened Steel 3/8” Drill Bushing

• For precise and accurate pocket holes every time using the Milescraft PocketBit™
• Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try

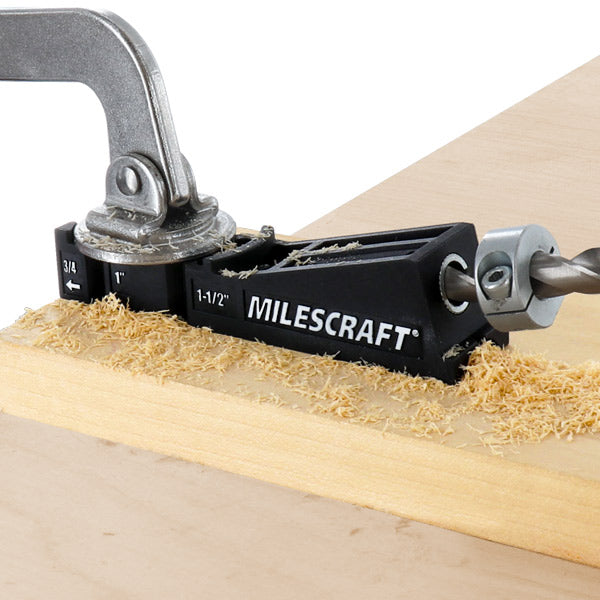

Recessed Clamp Pocket with Magnet

• Helps to keep the clamp in the same position as you move to different locations
• With the stronger rare earth magnet, you can easily clamp the jig from one location to another
• For speed and accuracy, use the Milescraft 3” Face Clamp™

Board Thickness Settings

• Four common board thickness settings built into the jig: 1/2”, 3/4” 1” and 1-1/2” (12, 19, 27, 38mm)

Convenient Built-in Depth Setting

• Easily set your bit for the correct drilling depth

3/8″ Anti-Roll, Split Design Stop Collar

• The split design prevents slipping of the set screw when tightened and prevents the bit from rolling
• Includes hex key for tightening

3/8″ HSS Step Drill Bit

• Made from high-speed steel the PocketBit™ with 1/4″ hex shaft is designed to reduce clogging and provide smooth and precise holes

6” Magnetic T20 Star Driver

• For maximum torque settings without stripping
• Allows pocket screws to align with maximum precision

DOWNLOAD MANUAL:

1324 PocketJig100 Manual (PDF)
