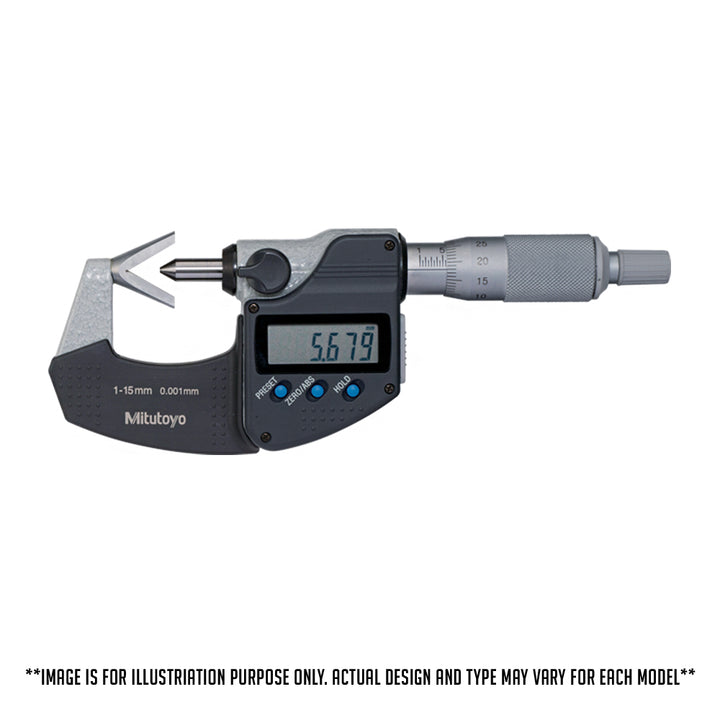

Mitutoyo Digimatic V-Anvil Micrometer - Series 314
⏳ Exclusive Discount. Sale ends in {timer}
HIGHLIGHTS: The Mitutoyo Digimatic V-Anvil digital micrometer pointed spindle and V-Anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate...
Guaranteed Safe Checkout
INSTALLMENT payment is available via BILLEASE (Click for Details).
Manufacturer Partner & Authorized Reseller. Click to View More:
HIGHLIGHTS:
The Mitutoyo Digimatic V-Anvil digital micrometer pointed spindle and V-Anvil delivers precise position for highly accurate measurements. The anvil and spindle are precision milled from hardened steel for lasting, accurate results. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Measurements are displayed on an easy-to-read LCD readout.
FEATURES:
- Available in Metric and Inch/Metric models
- V-Anvils with a centerline groove are available for measuring the pitch diameter of taps by the single-wire method
- Ratchet mechanism provides an audible click to ensure measurement is being performed with a constant force
- SPC output function allows for quick and easy data management in real time
- Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, 2 Presets, Function Lock, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a non-slip finish for better grip in shop environments
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Resolution: | Accuracy: | Mass: | Graduation: | Remarks: |
|---|---|---|---|---|---|---|---|---|
| 314-251-30 |  |
Metric | 1-15mm | 0.001mm | ±4µm | 275g | 0.01mm | w/Groove |
| 314-252-30 | - | Metric | 10-25mm | 0.001mm | ±4µm | 410g | 0.01mm | w/Groove |
| 314-253-30 | - | Metric | 25-40mm | 0.001mm | ±5µm | 465g | 0.01mm | - |
| 314-261-30 | - | Metric | 1-15mm | 0.001mm | ±4µm | 275g | 0.01mm | - |
| 314-262-30 | - | Metric | 10-25mm | 0.001mm | ±4µm | 410g | 0.01mm | - |
| 314-351-30 |  |
Metric, Inch | .05-0.6" / 1.27-15.24mm | 0.00005" / 0.001mm | ±.0002" / ±4µm | 275g | 0.0010" / 0.01mm | w/Groove |
| 314-352-30 | - | Metric, Inch | 0.4-1" / 10.16-25.4mm | 0.00005" / 0.001mm | ±.0002" / ±4µm | 410g | 0.0010" / 0.01mm | w/Groove |
| 314-353-30 | - | Metric, Inch | 1-1.6" / 25.4-40.64mm | 0.00005" / 0.001mm | ±.00025" / ±5µm | 465g | 0.0010" / 0.01mm | - |
| 314-361-30 | - | Metric, Inch | .05-0.6" / 1.27-15.24mm | 0.00005" / 0.001mm | ±.0002" / ±4µm | 275g | 0.0010" / 0.01mm | - |
| 314-362-30 | - | Metric, Inch | 0.4-1" / 10.16-25.4mm | 0.00005" / 0.001mm | ±.0002" / ±4µm | 410g | 0.0010" / 0.01mm | - |
