Mitutoyo QuantuMike Digimatic Micrometer, IP65 with 2mm/rev Spindle Speed - Series 293

₱18,564.00

HIGHLIGHTS: The Mitutoyo digital QuantuMike utilizes a courser spindle thread which feeds the spindle by 2mm per revolution of the thimble instead of the standard 0.5mm. The coolant-proof micrometer’s ratchet thimble...

Ask a Question

Type: METRIC

METRIC
INCHES/METRIC

Size: 293-141-30

293-141-30
293-142-30
293-143-30
293-145-30
293-146-30
293-147-30
293-148-30
293-181
293-185
293-186
Add to Wishlist
16 People are viewing this right now

Guaranteed Safe Checkout

INSTALLMENT payment is available via BILLEASE (Click for Details).

Pickup available at Gigatools Warehouse

Usually ready in 2-4 days

Manufacturer Partner & Authorized Reseller. Click below to view more:

Mitutoyo
Description

HIGHLIGHTS:

The Mitutoyo digital QuantuMike utilizes a courser spindle thread which feeds the spindle by 2mm per revolution of the thimble instead of the standard 0.5mm. The coolant-proof micrometer’s ratchet thimble mechanism provides a constant measuring force on the spindle to ensure accurate, repeatable measurements..



FEATURES:

  • A highly rigid frame and high-performance constant-force mechanism* enable more stable measurements, while the clicks emitted when the work piece is being measured assure the operator that measurement is proceeding normally
  • Carbide tips resists wear on the measuring faces for accurate measurements for an extended period of time
  • Built-in “Hold” function freezes the displayed value, enabling the micrometer to be removed from a workpiece for better viewing when the readout is not easily visible
  • Functions include Origin Set, Zero/ABS, Hold, Function Lock, Auto Power On/Off, and inch/mm conversion (on inch/metric models only)
  • Alarm: Low Voltage, Counting Value Composition Error
  • Models are also available without SPC output
  • Certificate of Inspection is provided
  • IP65 protection permits use in environments exposed to cutting oil, dust, etc.**
  • Supplied in fitted plastic case

*Patent pending in Japan, the United States of America, the European Union, and China
**Anti-corrosion treatment is required after use



SERIES 293 TECHNICAL DATA:
Technology: Digimatic
IP Rating: IP65
Ratchet/Thimble: Ratchet Thimble
Measuring Force: 7-12N
Measuring Faces: Carbide tipped
Display: LCD
Battery: SR44 (1 pc.) 938882
Battery Life: Approx. 2.4 years under normal use





SPECIFICATIONS:
Order No.: Product Image: Units: Range: Resolution: Accuracy: SPC Output: Mass: Flatness: Parallelism: Optional Accessories:

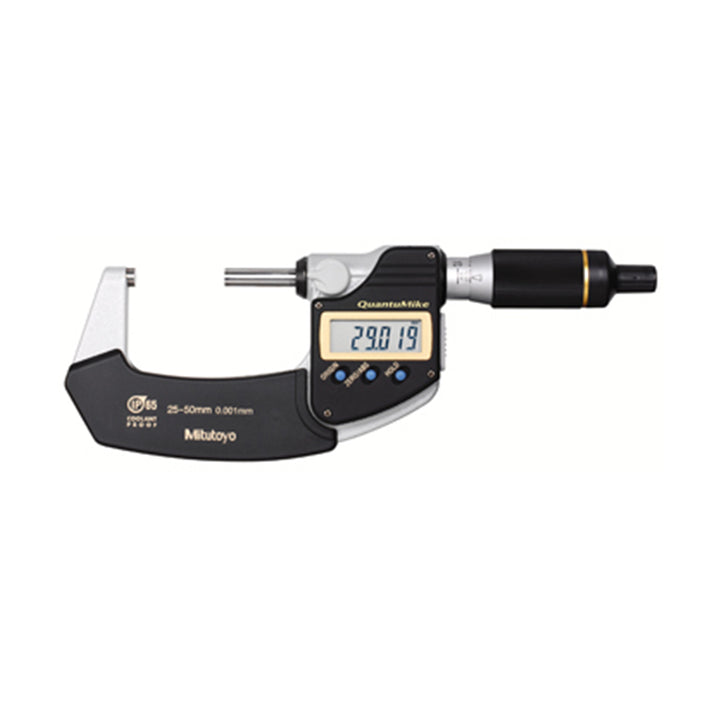

293-141-30 Metric 25-50mm 0.001mm ±1µm Yes 325g 0.3µm 1µm or less -

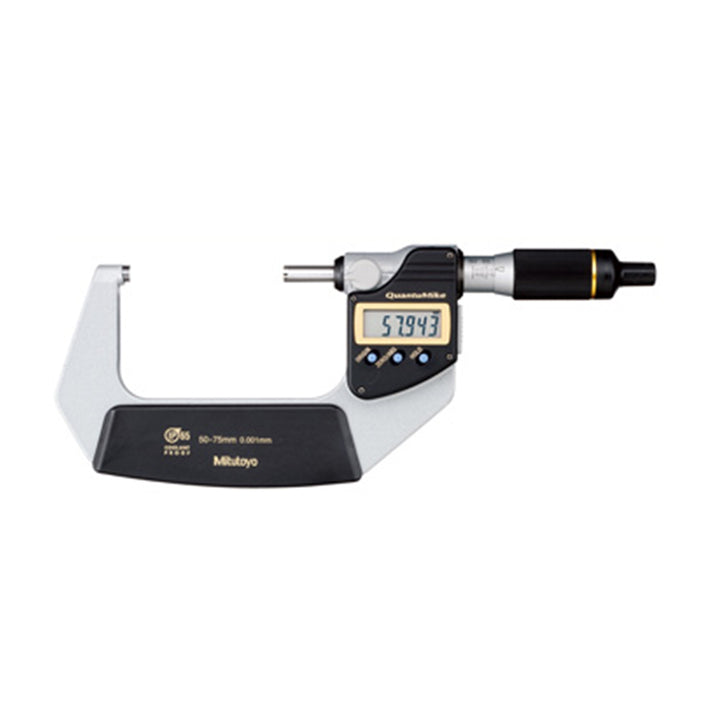

293-142-30 Metric 50-75mm 0.001mm ±2µm Yes 465g 0.3µm 2µm or less -

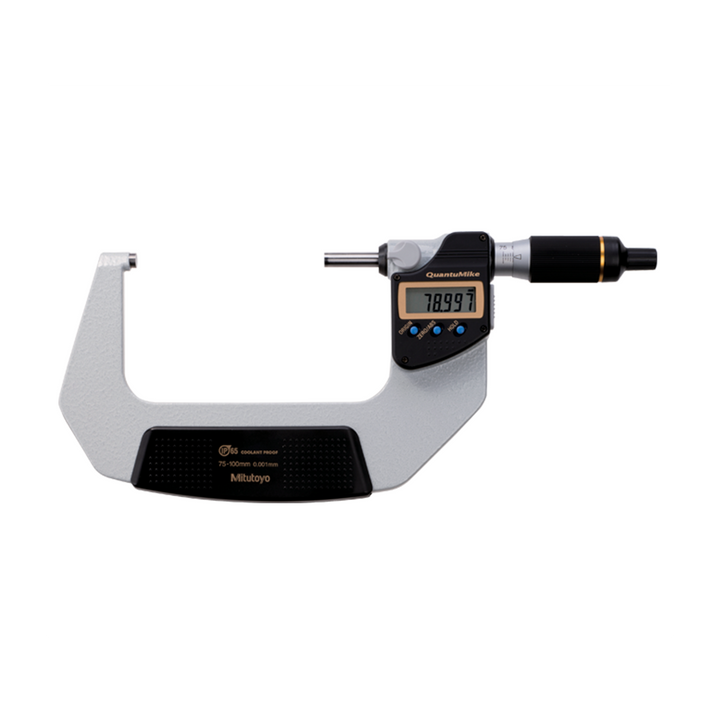

293-143-30 Metric 75-100mm 0.001mm ±2µm Yes 620g 0.3µm 2µm or less -

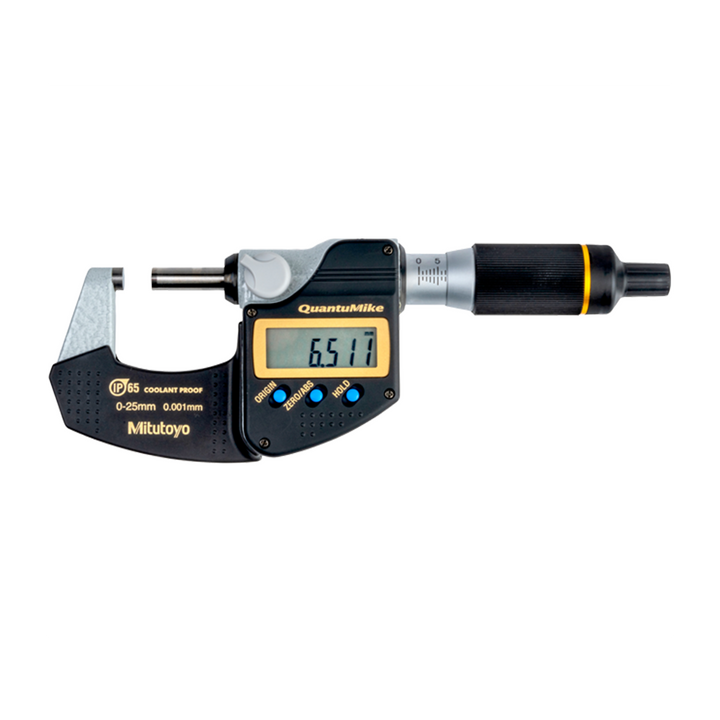

293-145-30 Metric 0-25mm 0.001mm ±1µm No 265g 0.3µm 1µm or less -
293-146-30 - Metric 25-50mm 0.001mm ±1µm No 325g 0.3µm 1µm or less -
293-147-30 - Metric 50-75mm 0.001mm ±2µm No 465g 0.3µm 2µm or less -
293-148-30 - Metric 75-100mm 0.001mm ±2µm No 620g 0.3µm 2µm or less -

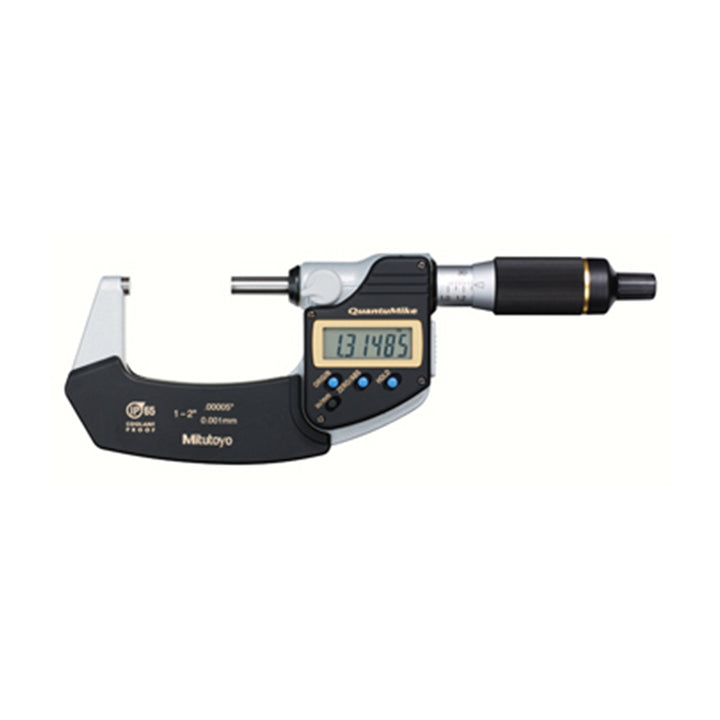

293-181-30 Metric, Inch 1-2" / 25.4-50.8mm 0.00005" / 0.001mm ±.00005" Yes 325g 0.3µm 0.00004" or less / 1µm or less -

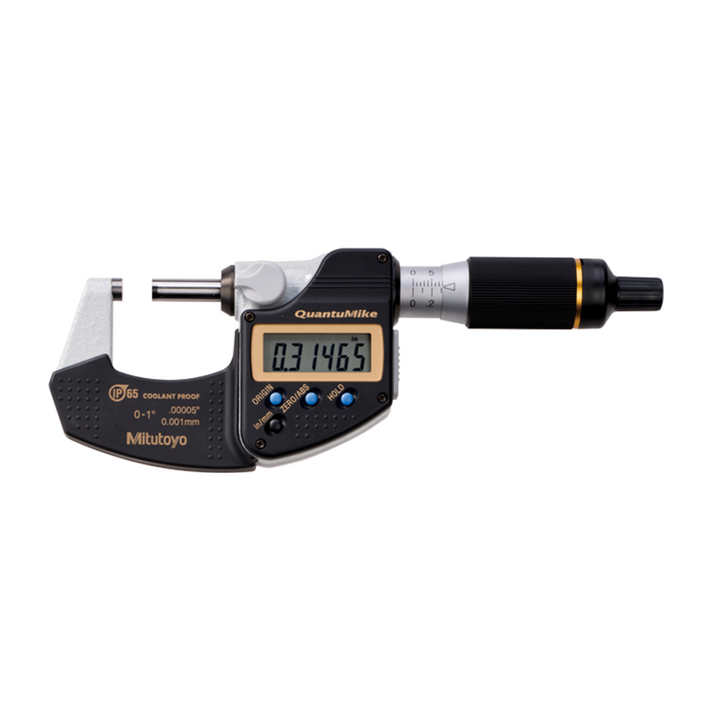

293-185-30 Metric, Inch 0-1" / 0-25.4mm 0.00005" / 0.001mm ±.00005" No 265g 0.3µm 0.00004" or less / 1µm or less -

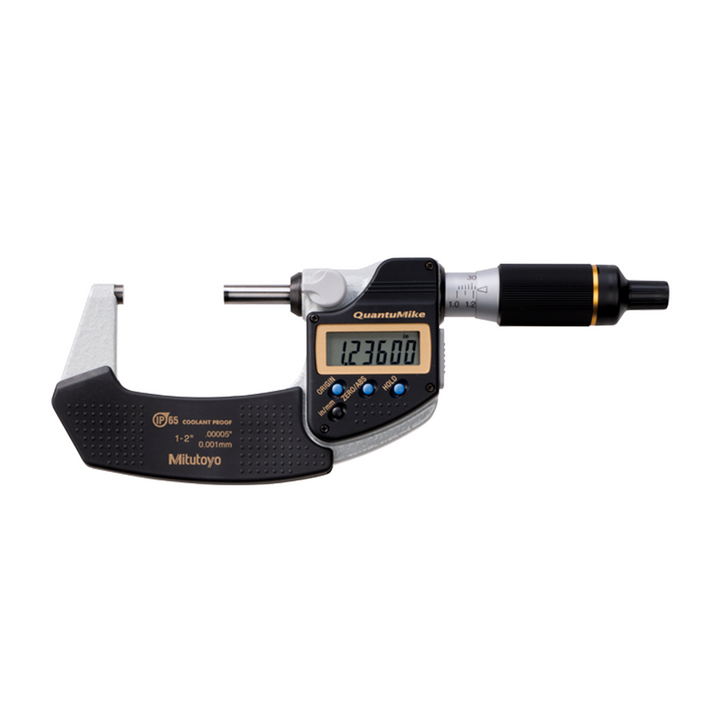

293-186-30 Metric, Inch 1-2" / 25.4-50.8mm 0.00005" / 0.001mm ±.00005" No 325g 0.3µm 0.00004" or less / 1µm or less -
