Mitutoyo Spline Micrometer - Series 111

Name: Mitutoyo Spline Micrometer - Series 111
Brand: Mitutoyo
SKU: 45492884406504
Price: 7980.0 PHP
Availability: InStock

₱7,980.00

HIGHLIGHTS: The Mitutoyo spline micrometer is ideal for measuring minor indents, slots, spline shafts and keyways on workpieces. The anvil and spindle each have reduced diameters to measure internal features with...

Ask a Question

People are viewing this right now

Responsive Image

Select billease during checkout.

Description

HIGHLIGHTS:

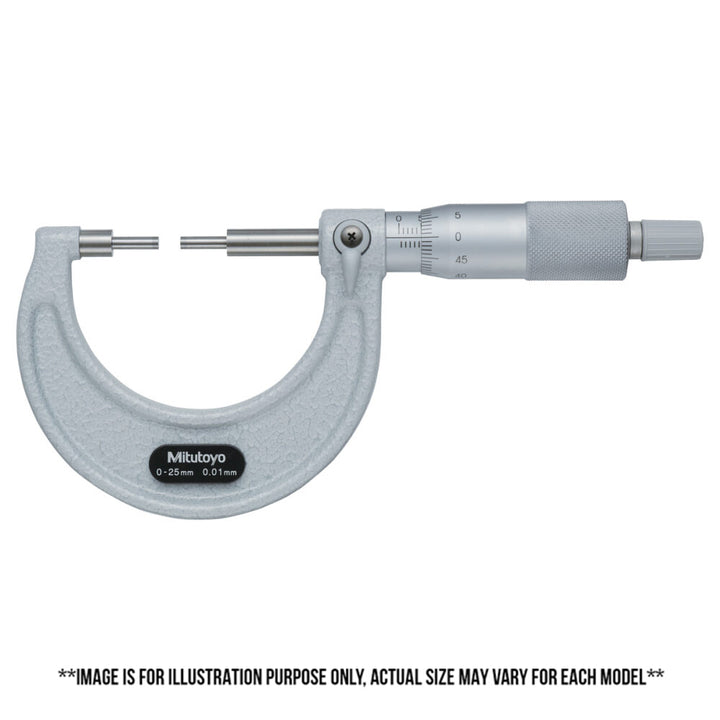

The Mitutoyo spline micrometer is ideal for measuring minor indents, slots, spline shafts and keyways on workpieces. The anvil and spindle each have reduced diameters to measure internal features with high accuracy. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

FEATURES:

Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Ratchet-stop mechanism provides uniform pressure for precise, repeatable measurements
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Frame has a baked enamel finish to resist corrosion
Scale is laser etched on thimble for easier reading
Includes a standard bar except for 0-25mm models
Supplied in fitted plastic case

**SPECIFICATIONS:**
Order No.:	Product Image:	Units:	Range:	Accuracy:	Mass:	Graduation:	Flatness:	Parallelism:	Remarks:
111-115		Metric	0-25mm	±3µm	205g	0.01mm	0.3µm	2µm or less	Type A
111-116	-	Metric	25-50mm	±3µm	305g	0.01mm	0.3µm	2µm or less	Type A
111-117	-	Metric	50-75mm	±3µm	370g	0.01mm	0.3µm	2µm or less	Type A

Warranty

Mitutoyo Warranty Coverage

6 months warranty against factory defects under normal operating conditions.
Applicable to the wide range of Mitutoyo precision measuring tools, including calipers, micrometers, dial indicators, and related instruments.
Subject to inspection and evaluation by an Authorized Service Center to determine warranty eligibility.
Warranty is void if tool inaccuracy or failure is due to improper storage, exposure to extreme temperatures, corrosive environments, or lack of proper cleaning and maintenance.
Rejected: Claims will be denied if damage results from dropping, physical impact, unauthorized disassembly, improper calibration attempts, or any user negligence (User Error).

Please retain your original proof of purchase. Warranty claims are valid only with proper documentation submitted within the warranty period.
