Pro'sKit 4 in 1 fiber Optical Power Multimeter (MT-7615)

₱2,290.00

HIGHLIGHTS: Versatile, Accurate, and Compact Testing Solution The Pro'sKit MT-7615 is an all-in-one fiber optic testing device designed for professionals in telecommunications, network installation, and maintenance. Combining four essential tools—Optical Power...

Ask a Question
Add to Wishlist
People are viewing this right now

Responsive Image
Responsive Placeholder Image

Select billease during checkout.

Manufacturer_Partner
Pro'sKit
Description

HIGHLIGHTS:

    Versatile, Accurate, and Compact Testing Solution

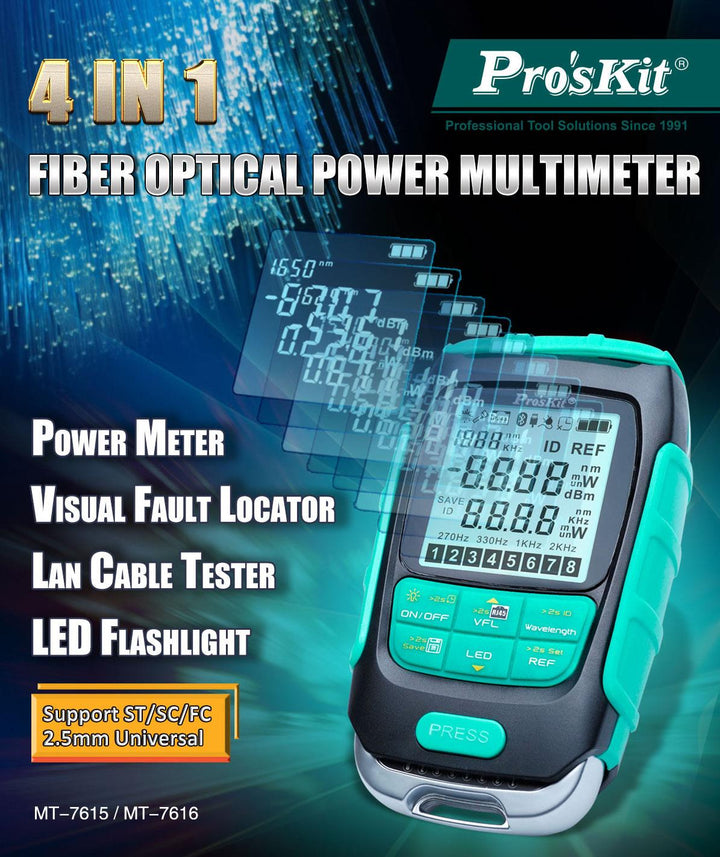

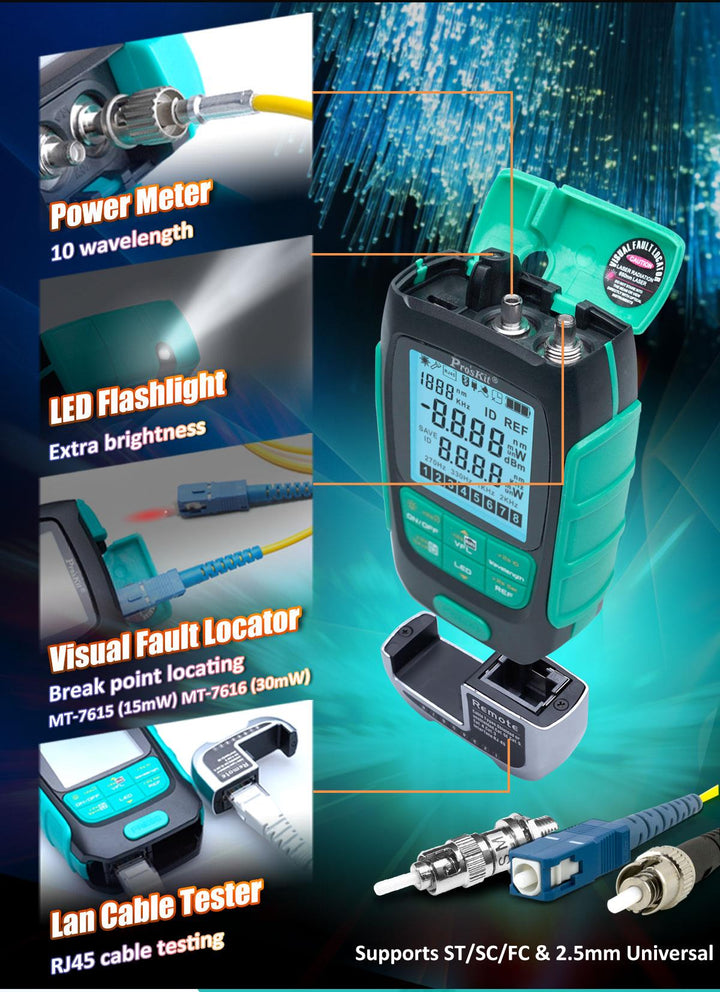

    The Pro'sKit MT-7615 is an all-in-one fiber optic testing device designed for professionals in telecommunications, network installation, and maintenance. Combining four essential tools—Optical Power Meter (OPM), Visual Fault Locator (VFL), LAN Cable Tester, and LED Flashlight—this compact multimeter ensures precise diagnostics and efficient troubleshooting in various environments.

    Key Features:

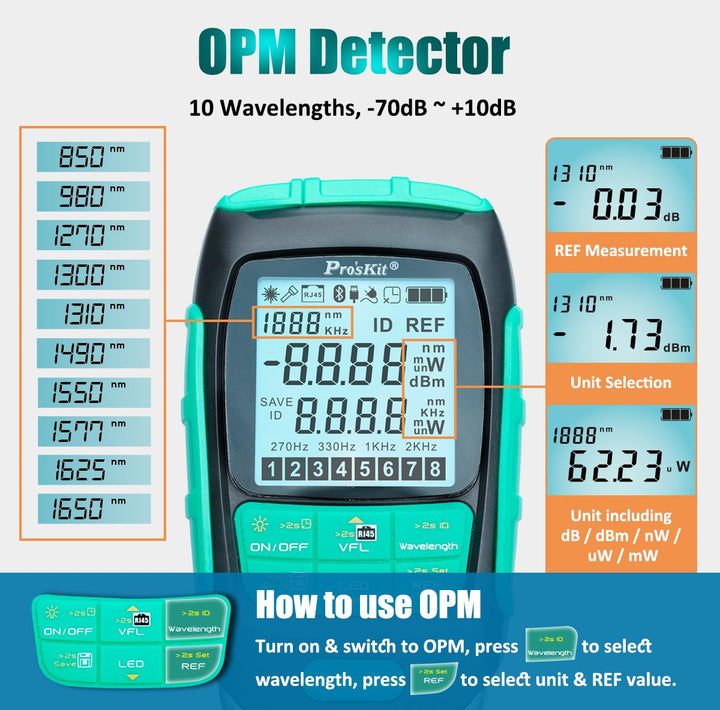

    • Optical Power Meter (OPM): Measures optical power across 10 wavelengths (850/980/1270/1300/1310/1490/1550/1577/1625/1650 nm) with units in dB, dBm, nW, mW, and µW. Includes Wave ID function, wavelength memory, self-calibration, and reference value setting.

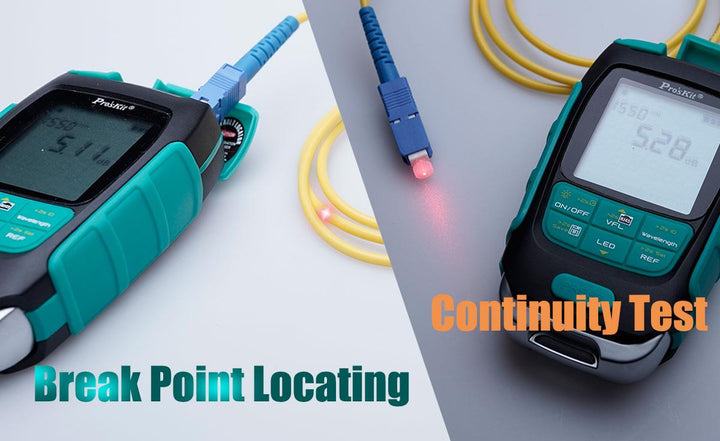

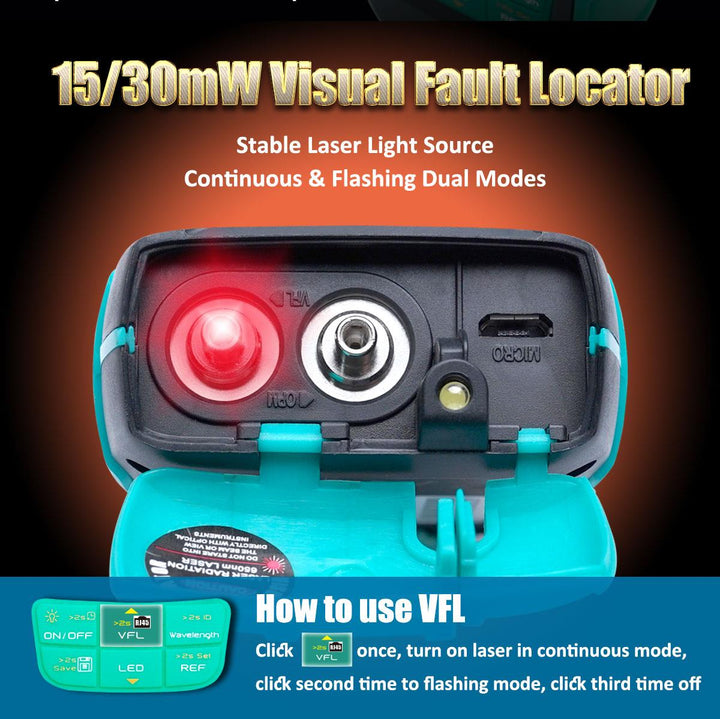

    • Visual Fault Locator (VFL): 15mW output power with continuous and flashing modes, aiding in the identification of fiber breaks and bad connections.

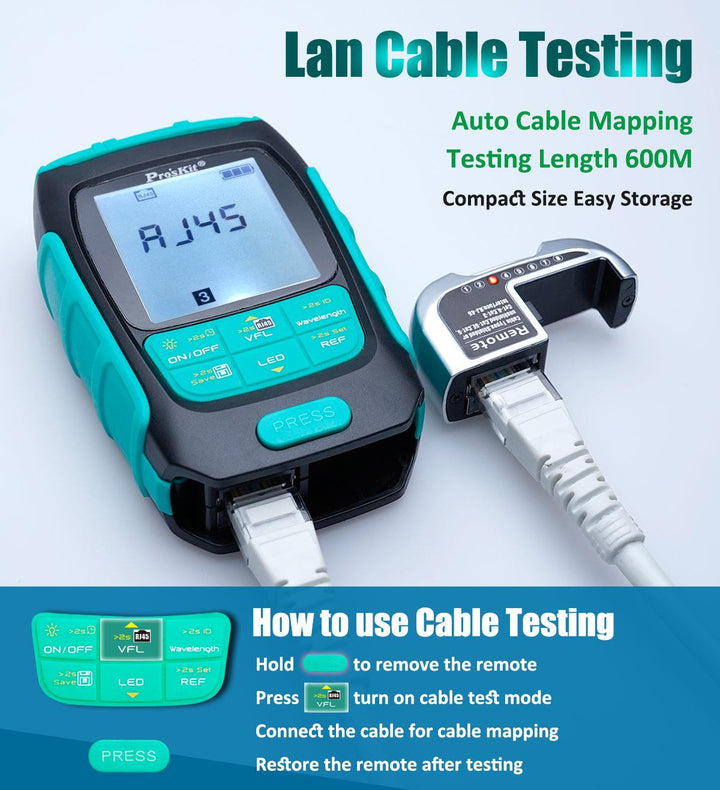

    • LAN Cable Tester: Supports UTP cables with RJ45 connectors, providing pin-to-pin cable mapping and measuring lengths up to 600 meters.

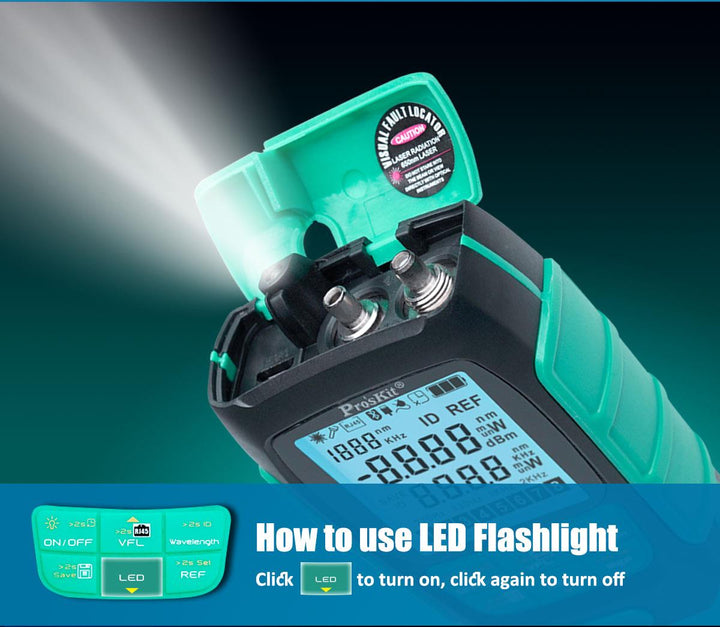

    • LED Flashlight: Built-in illumination for working in dark environments.

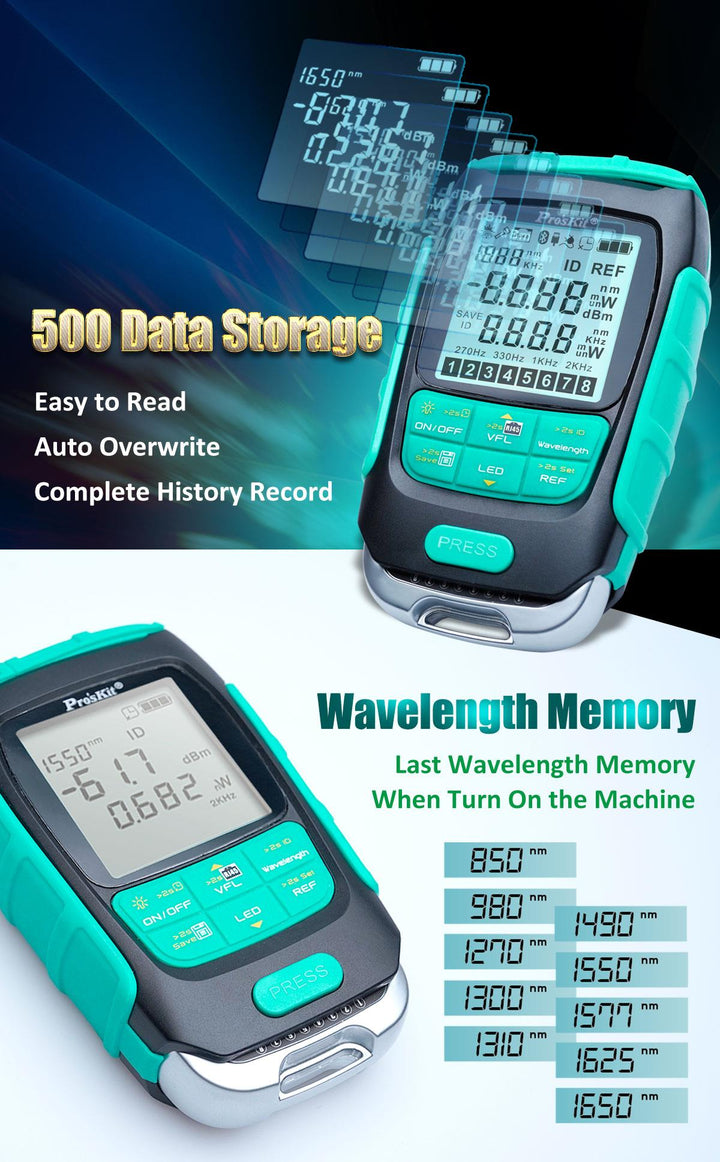

    • Data Storage: Stores up to 500 measurement records for easy reference.
    • Power Supply: Equipped with a rechargeable 3.7V/450mAh Li-ion battery, offering over 50 hours of operation (OPM only). Features auto power-off after 10 minutes of inactivity and low battery indication.
    • Charging: Micro USB charging port compatible with 5V/1A adapters, power banks, or computers.

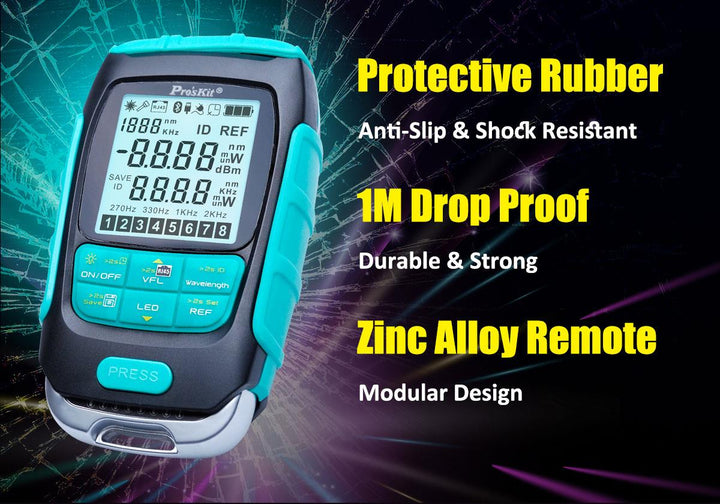

    • Durability: CE compliant, designed to operate in temperatures ranging from -10°C to 50°C with humidity below 90%.



    SPECIFICATIONS:

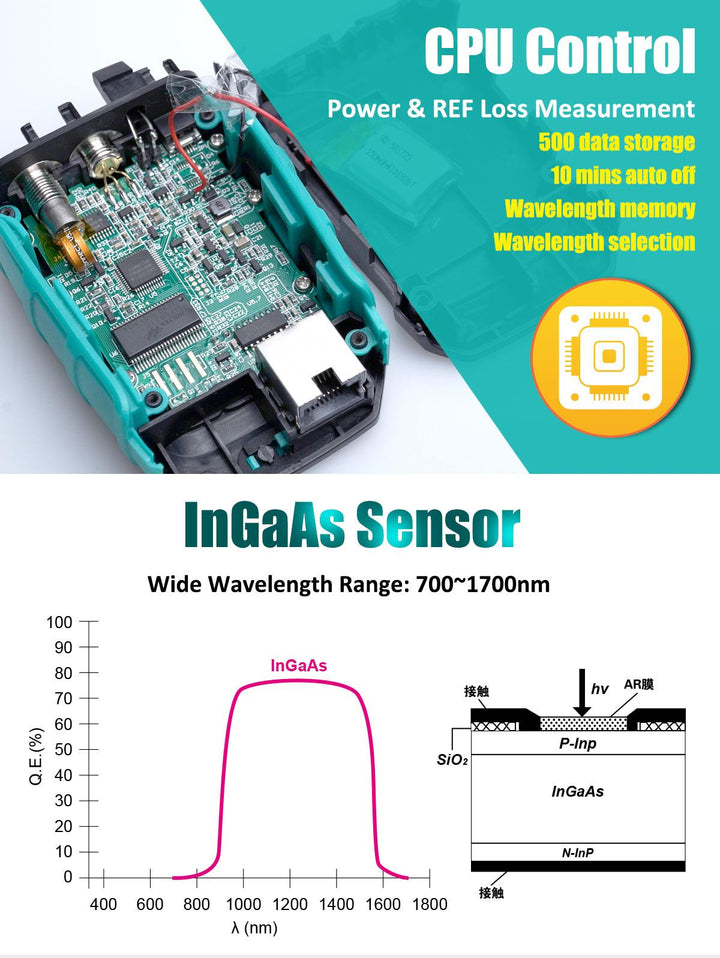

    Detector Type InGaAs
    Wavelength Range 700~1700nm

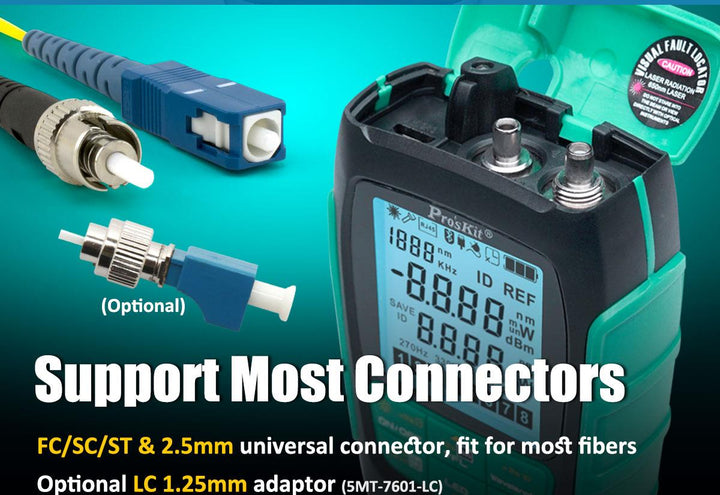

    Optical Connector 2.5mm Universal
    Measuring Wavelength 850/980/1270 /1300/1310/1490/1550/1577/1625/1650nm
    Measuring Range -70~+10dBm
    Resolution 0.01dB
    Accuracy ±0.2dB (1310/1550nm)
    ±0.3dB (850/980/1300/1490/1625/1650nm)
    ±1dB (1270/1577nm)

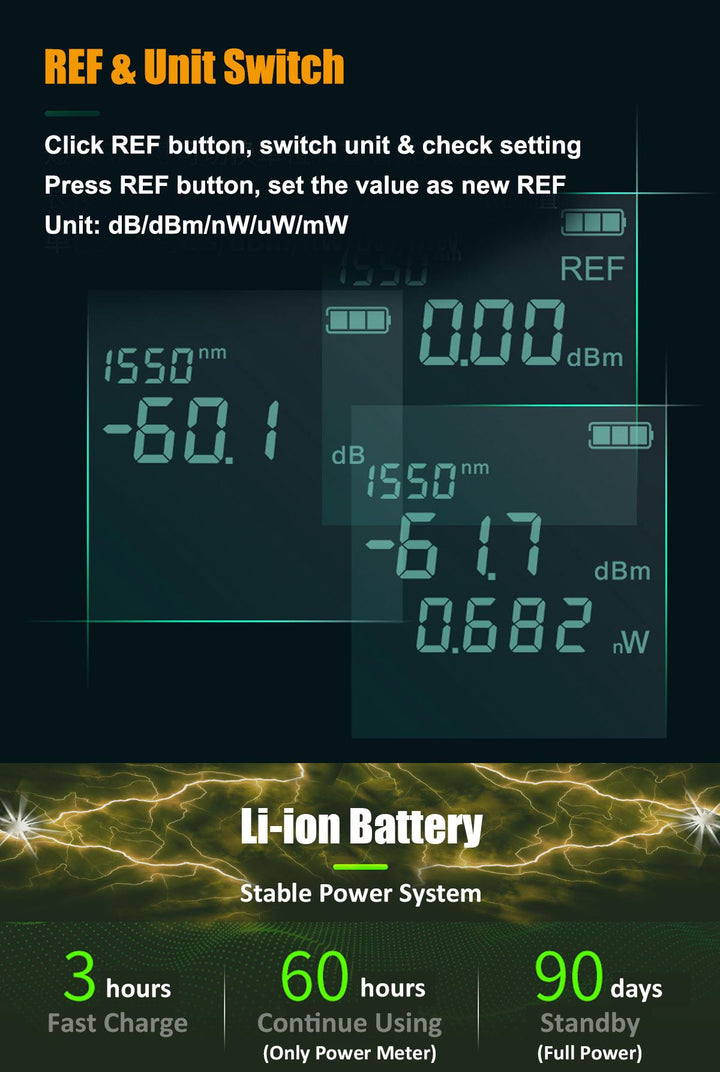

    Power Display Units dB, dBm, mW, uW, nW
    Modulation Detection 270/1k/2kHz
    Data Storage 500
    Wavelength Memory Y

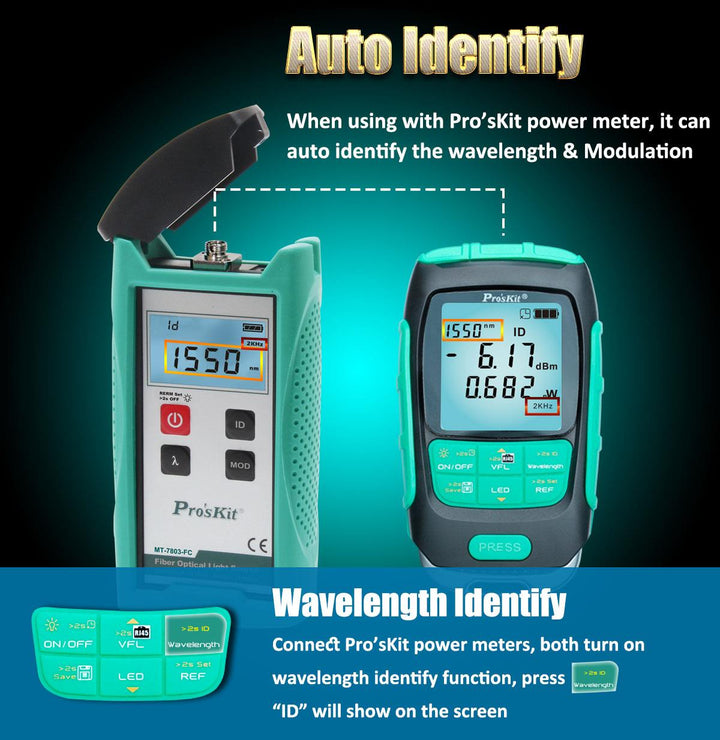

    Wavelength ID Y (Only Work for Pro'sKit Products)

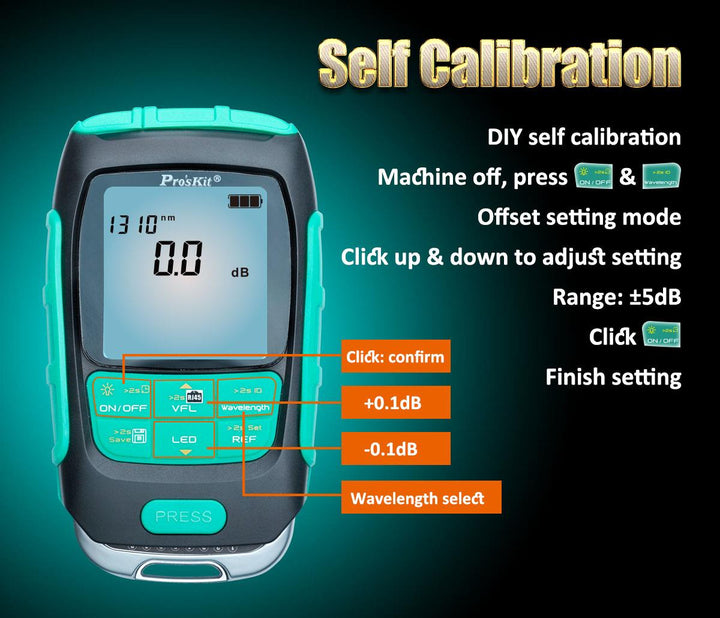

    Self Calibration Y
    REF Value Y

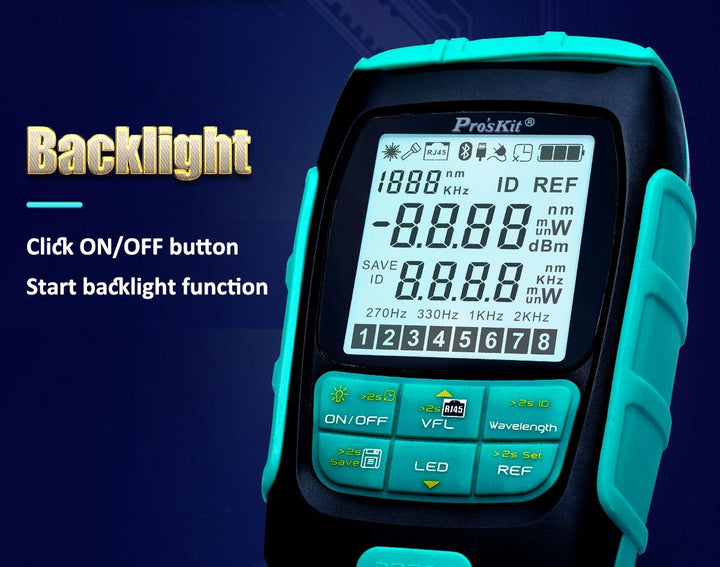

    Backlight Y
    Output Power 15mW
    VFL Test Length 10-12km @Single Mode
    VFL Connector 2.5mm Universal
    VFL Wavelength 650±20nm
    VFL Laser Mode Continuous / Flashing
    LAN Cable UTP Cable
    LAN Cable Connector RJ45 (UTP / 8P8C)
    Cable Mapping Y
    Measuring Length 600m
    Assistive Light LED
    Auto Power Off Y (10 mins)
    Low Battery Indication Y

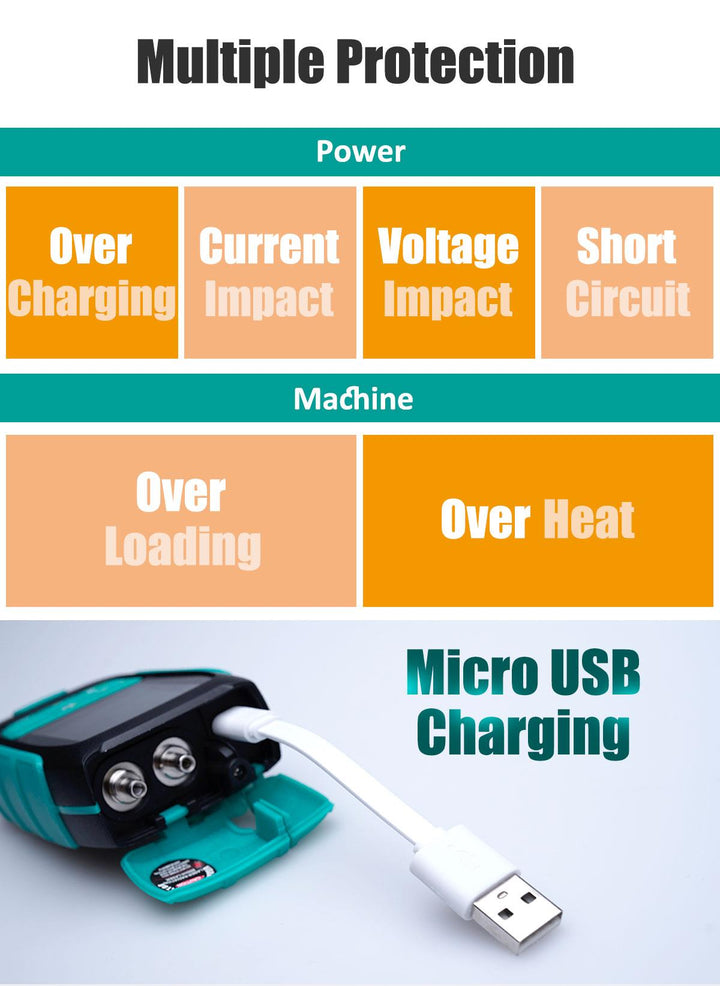

    Charging Port Micro USB
    Working Hours >50hrs (Power Meter Only)
    Battery 3.7V / 450mAh, Li-ion
    Working Environment -10~50°C, <90%RH

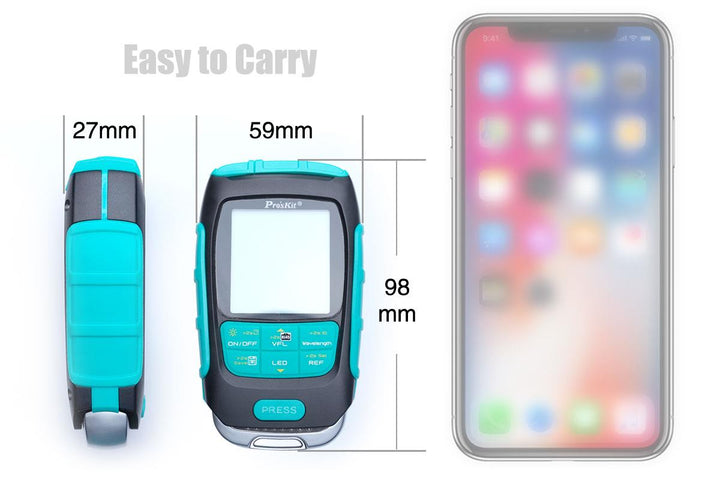

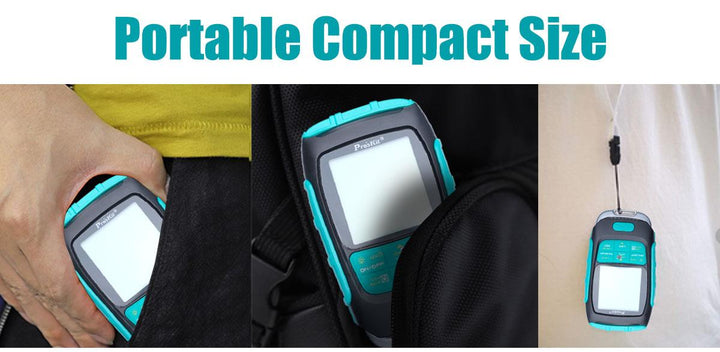

    Dimension 98 x 59 x 27 mm
    Weight 100g
