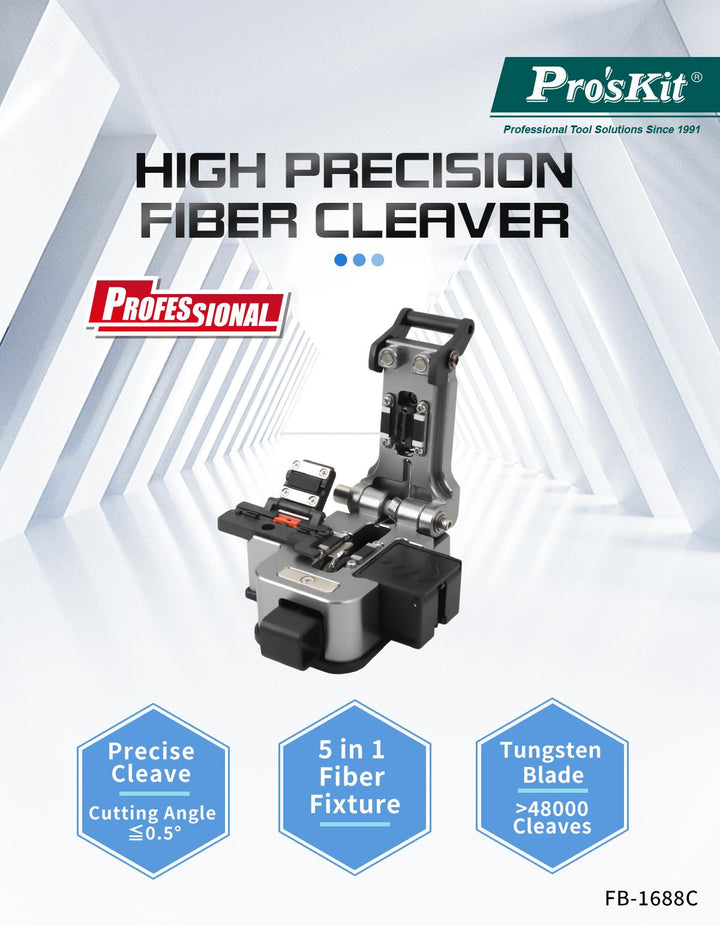

Pro'sKit FB-1688C High Precision Fiber Cleaver with Scrap Collector (5 in 1 Fixture)
₱6,660.00
HIGHLIGHTS: Precision Cutting for Superior Fiber Termination The Pro'sKit FB-1688C is a high-precision fiber optic cleaver designed for fast, consistent, and accurate cleaving of optical fibers, making it ideal for fiber...
People are viewing this right now
Select billease during checkout.
Description
HIGHLIGHTS:
Precision Cutting for Superior Fiber Termination
The Pro'sKit FB-1688C is a high-precision fiber optic cleaver designed for fast, consistent, and accurate cleaving of optical fibers, making it ideal for fiber splicing and termination tasks. Engineered with a 5-in-1 fiber holder fixture, it accommodates a variety of fiber types and coatings, offering exceptional flexibility and ease of use for professionals working in FTTH, FTTx, and data communication applications.
Key Features:
-

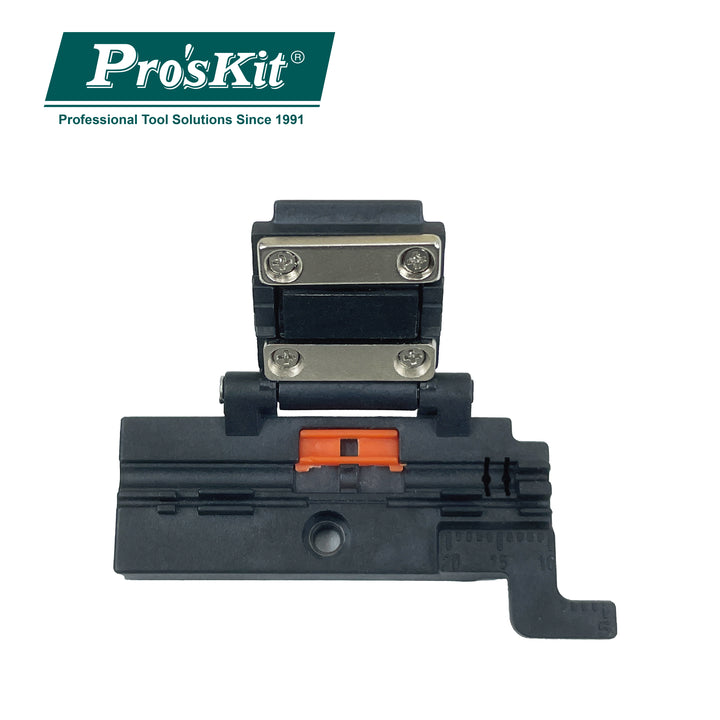

5-in-1 Universal Fiber Holder
Compatible with a wide range of fiber types for versatile use:- Ø125 μm Single Fiber
- Ø250 μm Bare Fiber (0.2 mm)
- Ø900 μm Bare Fiber (0.9 mm)
- 2.0 mm and 3.0 mm Fiber Cable (buffered)
- Flat cable (3.0 x 2.0 mm)
-
High Precision Cleaving
Produces clean, accurate 90° cleaves for fusion splicing and connectors. -
Long-Lasting Blade Life
Durable blade provides up to 48,000 cleaves, ensuring low maintenance and cost-effective operation. -

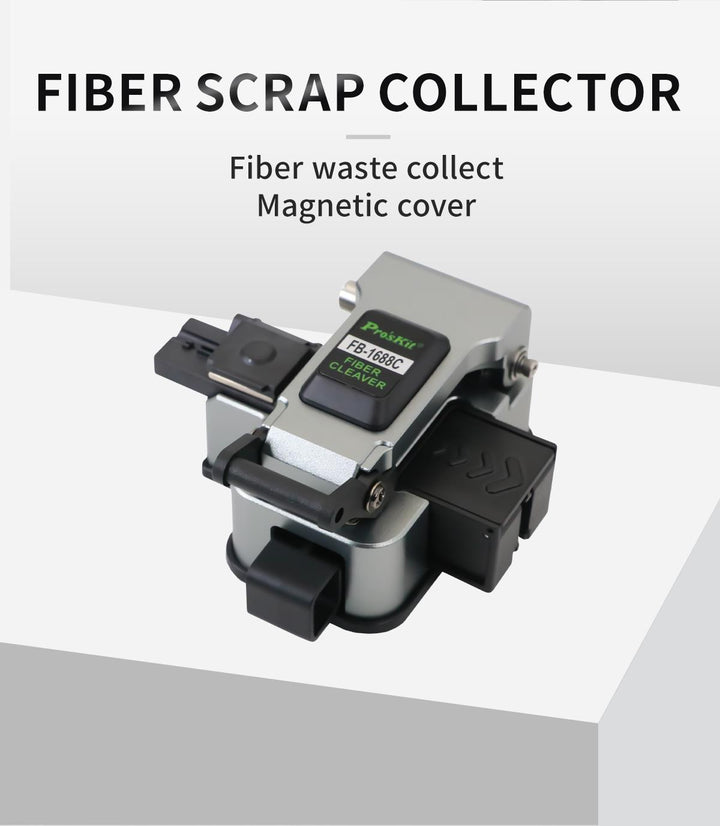

Built-In Scrap Collector
Integrated fiber scrap bin ensures clean and safe disposal of fiber remnants, maintaining a tidy workspace. -
One-Step Operation
Streamlined cleaving process improves efficiency and reduces operation time. -
Lightweight & Portable Design
Compact form factor makes it ideal for fieldwork and on-site maintenance.
This cleaver is the ideal tool for technicians seeking a reliable, multi-purpose solution for all types of fiber optic cleaving jobs. Designed with precision, safety, and durability in mind, the Pro'sKit FB-1688C is a must-have in every fiber installation toolkit.
| Optical Power Multimeter Specification | |
|---|---|
| Detector Type | InGaAs |
| Wavelength Response Range | 700~1700nm |
| OPM Connector | 2.5mm universal connector |
| Measurement Wavelengths | 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm |
| Measurement Range | -70~+10dBm |
| Resolution | 0.01dB |
| Accuracy* | (1550,1310nm) ±0.2dB (850nm,980nm,1300nm,1490nm,1625nm,1650nm) ±0.3dB (1270nm,1577nm) ±1dB |
| Unit | dB, dBm, mW, uW, nW |
| Modulation Detection | 270/330/1k/2kHz |
| Data Storage | 500 groups |
| Wavelength Memory | Yes |
| User Self-calibration | Yes |
| REF | Yes |
| Back Light | Yes |
| Output Power | 15mW |
| Testing Distance* | 10~12km @SM |
| VFL Connector | 2.5mm universal connector |
| Wavelength | 650±20nm |
| Operation Mode | CW/2Hz Glint |
| Network Application | UTP/STP network cable |
| Interface | RJ45 (8P8C+G) |
| Testing Type | Network cable sequence |
| Testing Distance | 600m |
| Cables Tracing | Analog & Digital mode |
| Scan Frequency | 455kHz |
| Scan Distance | 600m |
| Crimping QC | connector RJ45 8pin: > 10cm |
| Illumination | LED |
| Auto Power-off | Yes (no operation in 10 minutes) |
| Low Battery Indicator | Battery level |
| Charging Socket | Type-C |
| Working Time | >30 hours (only OPM) |
| Power Source | Polymer lithium battery 3.7V/450mAh |
| Operation | -10~50 |
| Temperature | <90%RH |
| Size | 114*64*29mm |
| Weight | 110g |
| Receiver Specifications | |
| Switch | knob-operated |
| Functions select | silicone button ×3 |
| Response frequency | 455kHz |
| Sound | >85dB |
| Receiver signal | Analog / Digital mode |
| Alarm audio | Analog (633Hz/833Hz) & Digital (833Hz/1500Hz) |
| Sensitivity | knob-operated control |
| Connectors | RJ45 ×1 |
| Sequence indicator | LED ×9 |
| State indicator | LED ×3 |
| NCV test | AC 90V~1000V |
| NCV Alarm audio | 1500Hz |
| Indicator | LED ×1 (round ring) |
| Flashlight lighting | LED ×1 |
| Earphone jack | Φ3.5mm ×1 |
| Charging Socket | Type-C |
| Battery | Polymer lithium battery 3.7V 450mAh |
| Working current | <250mA |
| Dimension | 180*45*26mm |
| Weight | 105g |
| * at 20℃±2℃, 40%-60%RH, with standard testing fiber * Accuracy range: ±3dBm~-60dBm, Others as following: ±0.8dB: ±3dBm~+6dBm, -60dBm~-65dBm@1550nm ±3.0dB: +6dBm~+10dBm, -65dBm~-70dBm@1550nm * Testing distance will be influenced by environment and visual sensitivity |
|
