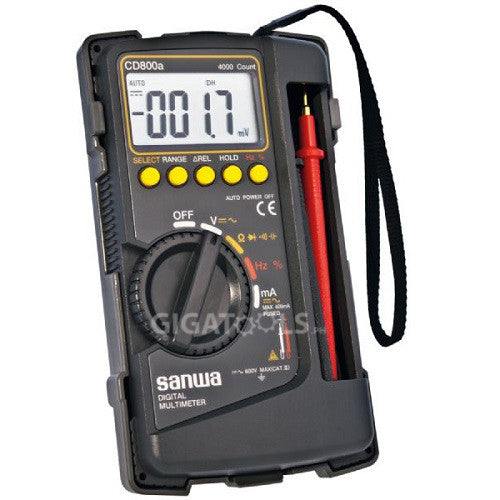

Sanwa CD-800A Digital Multi Tester
HIGHLIGHTS: The Sanwa CD800a is a basic, portable, 4000 count digital multimeter designed for low power applications. The CD800a is designed for the measurement of home electrical appliances, small communication equipment, and low...
Guaranteed Safe Checkout
INSTALLMENT payment is available via BILLEASE (Click for Details).
Manufacturer Partner & Authorized Reseller. Click below to view more:
HIGHLIGHTS:
The Sanwa CD800a is a basic, portable, 4000 count digital multimeter designed for low power applications.
The CD800a is designed for the measurement of home electrical appliances, small communication equipment, and low voltage circuit analysis. This device features a 4000 count high-contrast display with a character height of 17.5 mm. It has an accuracy of 0.7% and measures a max of 600 V in DC mode and 600 Volts in AC mode. Auto range feature allows users to change the measurement ranges, and can also be manually adjusted by pressing the range hold function.
This multimeter offers all necessary features required to measure basic electrical quantities such as voltage, resistance, current, capacitance, frequency, duty cycle, and continuity test. The device also features a hold function that allows users to hold or pause a measurement.
The device has a 0.5 A/250V fuse with a blow-out capacity of 1.5kA. It has a solid and protective body cover that can also be used as a tilt stand to keep the meter upright on a stable base. The device does not have lead holders on the back, but it does have a compartment in the front to keep the testing leads protected.
- 4000 counts
- 0.7% Best Accuracy
- Sharp contrast LCD with character 17.5mm high is used
- Solid & protective body cover that can also be used as a tilt stand
- Frequency, capacitance, and duty cycle measurement function
- Continuity test with buzzer
Includes meter, instruction manual and test leads.

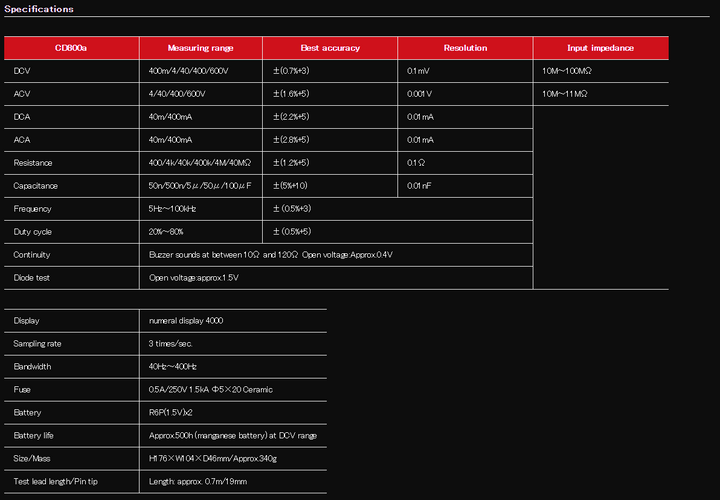

| CD800a | Measuring Range | Accuracy | Resolution | Input Impedance |
|---|---|---|---|---|
| DCV | 400m/4/40/400/600V | ±(0.7%+3) | 0.1mV | 10M-100M Ω |
| ACV | 4/40/400/600V | ±(1.6%+5) | 0.001V | 10M-11M Ω |
| DCA | 40m/400mA | ±(2.2%+5) | 0.01mA | |
| ACA | 40m/400mA | ±(2.8%+5) | 0.01mA | |
| Resistance | 400/4k/40k/400k/4M/40M Ω | ±(1.2%+5) | 0.1 Ω | |
| Capacitance | 50n/500n/5 μ/50 μ/100 μF | ±(5%+10) | 0.01nF | |
| Frequency | 5Hz-100kHz | +0.5%+3) | ||
| Duty cycle | 20%-80% | +0.5%+5) | ||
| Continuity | Buzzer sounds at between 10 Ω and 120 Ω Open voltage: Approx.0.4V | |||
| Diode test | Open voltage: Approx.1.5V | |||
| Display | numeral display 4000 | |||
| Sampling rate | 3 times/sec. | |||
| Bandwidth | 40Hz-400Hz | |||
| Fuse | 0.5A/250V 1.5kA Φ5x20 Ceramic | |||
| Battery | R6P(1.5V)x2 | |||
| Battery life | Approx.500h (manganese battery) at DCV range | |||
| Size/Mass | H176xW104xD46mm/Approx.340g | |||
| Test lead length/Pin tip | Length: approx. 0.7m/19mm | |||
