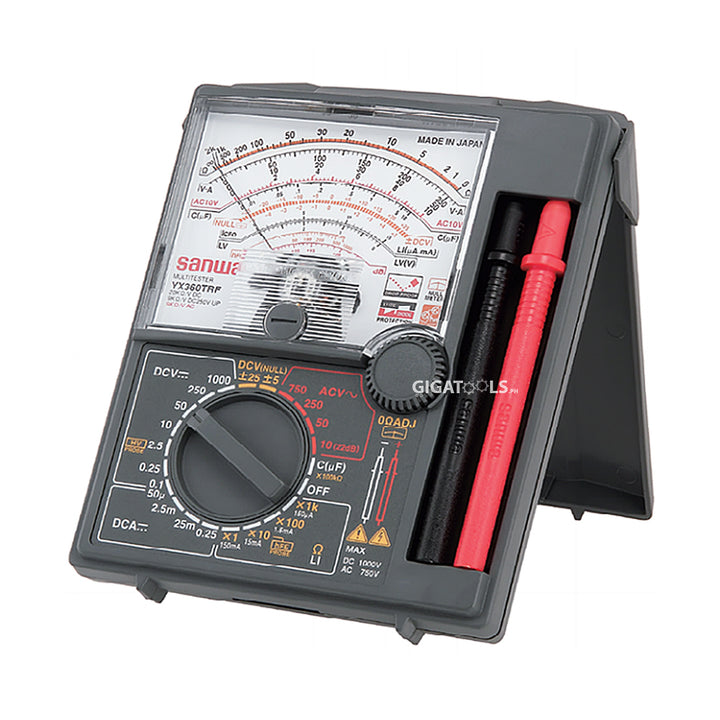

Sanwa YX360TRF Multi-Tester

₱1,939.00

HIGHLIGHTS: The YX360TRF is a taut-band type meter designed for low-voltage circuit measurements. It can measure DCV, DCA, AC, resistance, capacitance(10uF), Load line current, Signal power in dB as well as high DC...

Ask a Question
Add to Wishlist
People are viewing this right now

Responsive Image
Responsive Placeholder Image

Select billease during checkout.

Manufacturer_Partner
Sanwa
Description

HIGHLIGHTS:

The YX360TRF is a taut-band type meter designed for low-voltage circuit measurements. It can measure DCV, DCA, AC, resistance, capacitance(10uF), Load line current, Signal power in dB as well as high DC voltage of up to 25kV using an HV-10T probe (optional). When measuring DCV the meter utilizes the Null reading for ±25V with an accuracy of ±5% full-scale accuracy.

This multimeter has a solid cover that provides protection against drop shocks, and conveniently folds over to use as a tilt stand, and features a compartment for storing the attached test leads. For circuit protection, the device features a replaceable fuse rated at (250V / 0.5A).

Meter includes attached test leads and instruction manual.

  • Drop shock proof meter
  • Null (zero center) meter ±5 / ±25 in DCV
  • High resistance up to 200MΩ with low voltage
  • Solid & protective body cover that can also be used as a tilt stand
  • Capacitance, dB, LI measurement

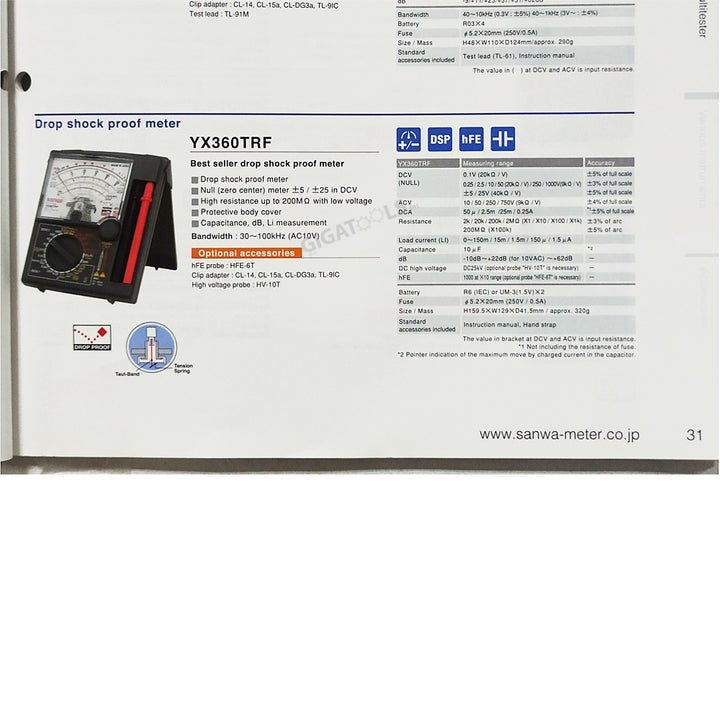

SPECIFICATIONS:
Function Measuring Range Tolerance
DCV 0.1（20kΩ/V)
0.25/2.5/10/50
（20kΩ/V)/250/1000V（9kΩ/V)		 ±5% of full scale
±3% of full scale
DCV (NULL) ±5/25V（40kΩ/V) ±5% of full scale
ACV 10/50/250/750（9kΩ/V) ±4% of full scale
DCA 50μ/2.5m/25m/0.25A *1 ±3% of full scale
Resistance 2k/20k/200k/2MΩ (x1/x10/x100/x1k)
200MΩ (x100k)		 ±3% of arc
±5% of arc
Capacitance 10μF Approximate value
dB -10dB～+22dB (for 10VAC) ～+62dB Approximate value
Load current (LI) 0-150m/15m/1.5m/150μ/1.5μA Approximate value
DC high voltage DC25kV
(optional probe "HV-10T" is necessary)		 -
hFE 1000 at x10 range
(optional probe "HFE-6T" is necessary)		 -
Battery R6 (IEC) or UM-3 (1.5V)x2
Fuse Φ5.2x20mm (250V/0.5A)
Size/Mass H159.5×W129×D41.5mm/Approx. 320g

*The value in (　）at DCV and ACV is input resistance
**1 Not including the resistance of fuse.
