Showfou SH Type Submersible High Head Pump (for clean water)

₱11,299.00₱82,399.00

The submersible high head pump type SH has been designed for high head pumping in clean water applications. FEATURES: Epoxy Cable Sealing Base: Unique “Epoxy Cable Sealing Base” to ensure 100%...

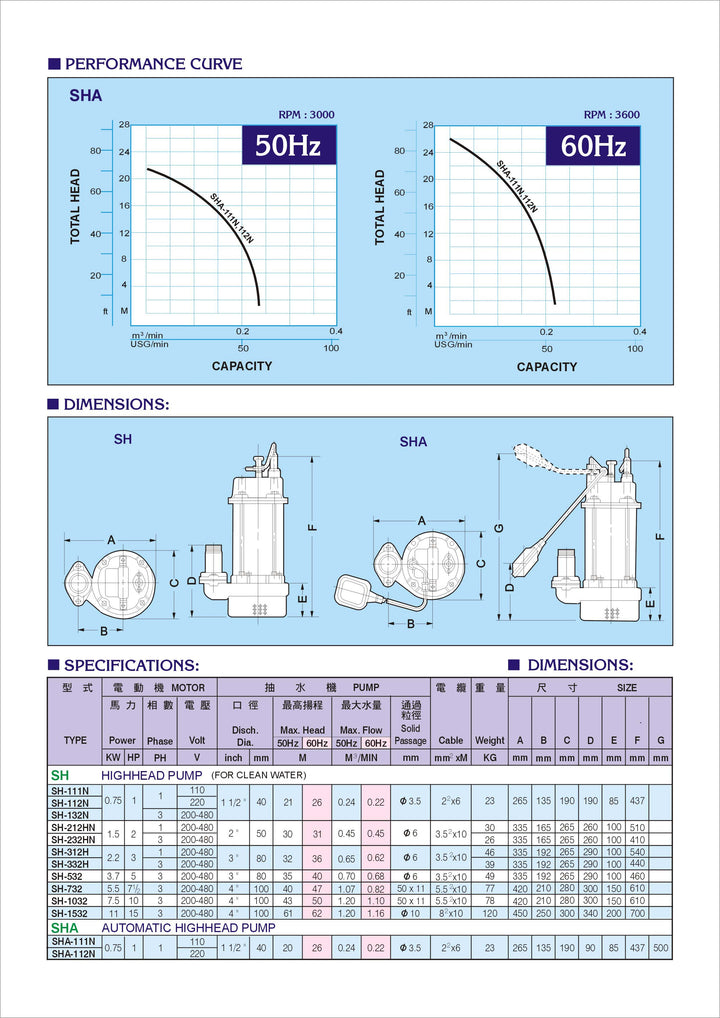

Specifications & Max Head: 1HP x 1-1/2" - 26m

  • 1HP x 1-1/2" - 26m
  • 2HP x 2" - 31m
  • 3HP x 3" - 36m
  • 5HP x 3" - 40m
  • 7-1/2HP x 4" - 47m
  • 10HP x 4" - 50m
₱11,299.00

Description

The submersible high head pump type SH has been designed for high head pumping in clean water applications.


FEATURES:

Epoxy Cable Sealing Base:
Unique “Epoxy Cable Sealing Base” to ensure 100% capability to block the water vapor into the motor from outside.

Impeller:
The impeller is hydro-dynamically well-balanced, bronze-made, and closed type to assure maximum performance and smooth, vibrationless, and durable operation.

Triplex Seal System:
Oil-bathed Double mechanical seals(Ceramic/Carbon) plus separate oil seal to ensures a longer pump life.

Compact and Light-Weight:
Designed to be light, so easy to carry and handle.

Quiet:
The well-balanced motor shaft and impeller enables the pump to run evenly with less noise.
The whole unit is equipped with Viton O-Ring.

Economical:
By turbo flow design and two(2) poles motors, if both high head and high flow are the requirements. Showfou users could consume 1/3 less energy than other brands.
Digitalized balanced motor shaft and rotor.


APPLICATIONS for the Submersible High Head Pump

Very good for pumps with clean non-volatile liquids without solids or fibers in below applications as :
  • Agricultural irrigations and water supply in slope area.
  • Shallow well.
  • Water-supplying system of apartment, building.
  • Spraying system of yard and garden.
  • Any kind of high head water supply.



DOWNLOAD PRODUCT INFORMATION:

 Showfou SH Type Pump: Catalog
