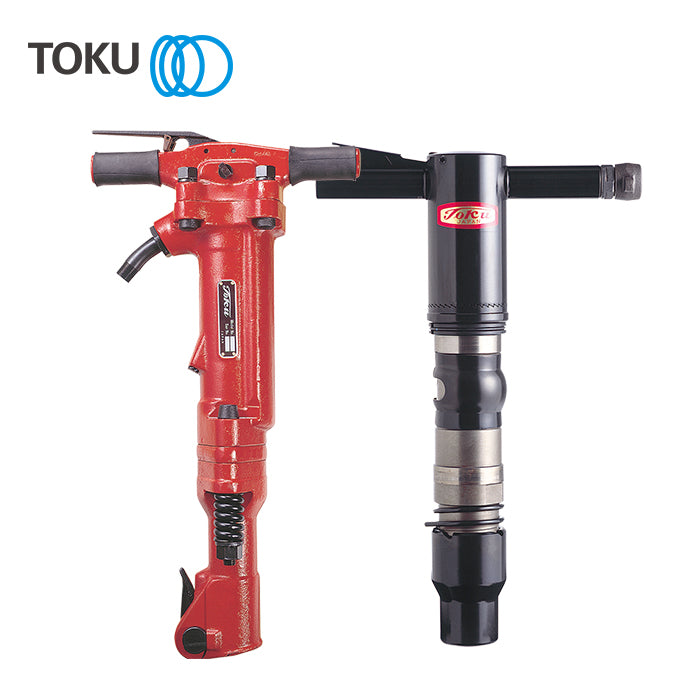

TOKU Pneumatic / Air Pavement/Concrete Breaker (Made in Japan)

₱107,100.00

HIGHLIGHTS: Toku paving breakers are used in road construction and building foundation work site and used to break high-strength concrete. Toku is the Japanese manufacturer having over 80 years experience on...

Ask a Question

Model: TPB-30

TPB-30
TPB-40
TPB-60
TPB-90
TCB-200
TCB-300
Add to Wishlist
People are viewing this right now

Responsive Image
Responsive Placeholder Image

Select billease during checkout.

Manufacturer_Partner
TOKU
Description

HIGHLIGHTS:

Toku paving breakers are used in road construction and building foundation work site and used to break high-strength concrete.

Toku is the Japanese manufacturer having over 80 years experience on pneumatic tool and will keep best efforts to supply best performance tool with high productivity and durability into worldwide industrial and automotive after-market.

TPB Series

High Durability Long Life

  • Alloy steel forged parts provide maximum durability
  • Original front head design for high durability
  • Removable bushing to protect wear of front head
  • Font head shock absorbers (except TPB-30 and 40)



Functions

  • Forged latch retainer for quick chisel change
  • 4 bolts handle type for low running cost



TCB Series

High Power High Productivity

  • Long piston stroke provides superior impact energy



High Durability Easy Maintenance

  • Reinforced cup retainer for high durability
  • Replaceable bushing to protect wear of cylinder
  • Simple structure for less maintenance



APPLICATIONS:

  • Automotive: Ideal for mechanics and automotive technicians, this tool is perfect for tasks such as engine repairs, tire changes, and general vehicle maintenance.
  • General Industry: Suitable for a wide range of industrial applications, including assembly lines, machinery maintenance, and construction projects.



FEATURES:

  • Air Consumption: Efficient air consumption ensures prolonged use without compromising performance.
  • Noise Level: Designed to operate quietly, minimizing noise pollution in the workplace.
  • Operating Pressure: Optimized for standard air compressor setups, providing consistent power and reliability.



SPECIFICATIONS:
MODEL Piston Diameter Piston Stroke Blow Per Min. Net Weight Overall Length Air Consumption Hose Size Shank Size Air Inlet

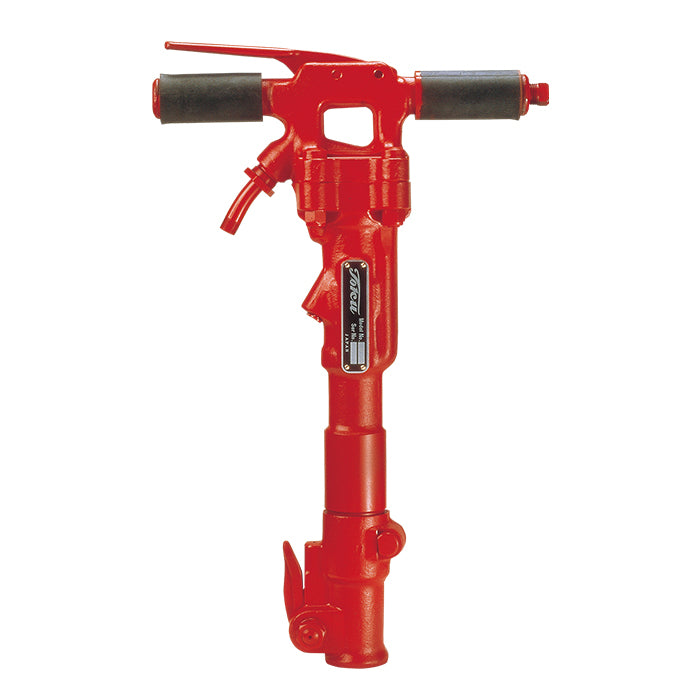

TPB-30 44.45 mm 85 mm 1550 b.p.m. 15.0 kg / 33 lb 564 mm 1.4 m³/min / 49 cfm 12.7 mm 7/8x3-1/4 or 1x4-1/4 inch 1/2 PT

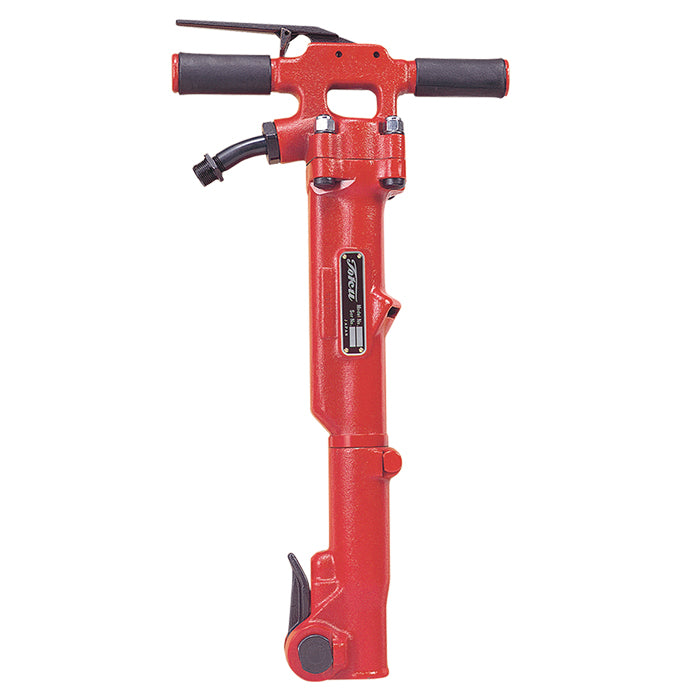

TPB-40 44 mm 146 mm 1100 b.p.m. 18.0 kg / 40 lb 660 mm 1.6 m³/min / 57 cfm 19 mm 1x4-1/4 inch 3/4 PT
TPB-60 57.15 mm 100 mm 1400 b.p.m. 30 kg / 66 lb 645 mm 1.7 m³/min / 58 cfm 19 mm 1-1/8x6 or 1-1/4x6 inch 3/4 PT

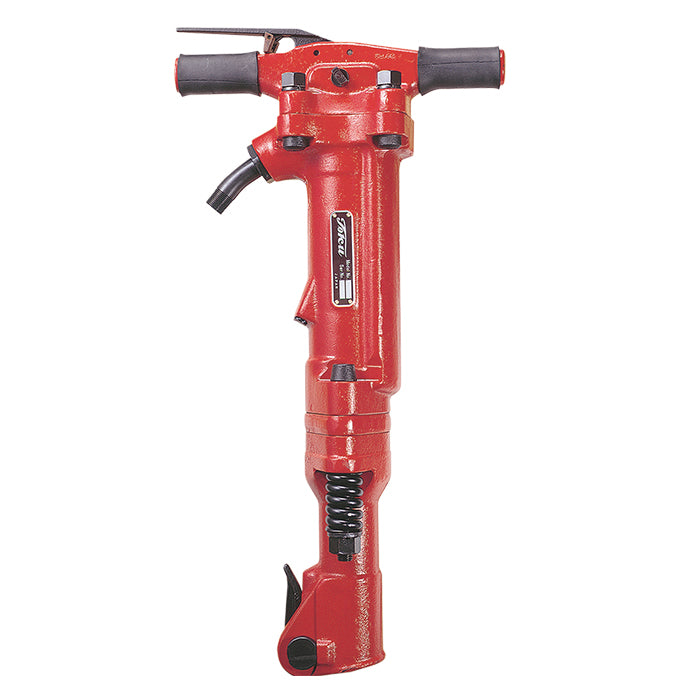

TPB-90 66.6 mm 152 mm 1250 b.p.m. 42 kg / 93 lb 725 mm 2.2 m³/min / 78 cfm 19 mm 1-1/8x6 or 1-1/4x6 inch 3/4 PT

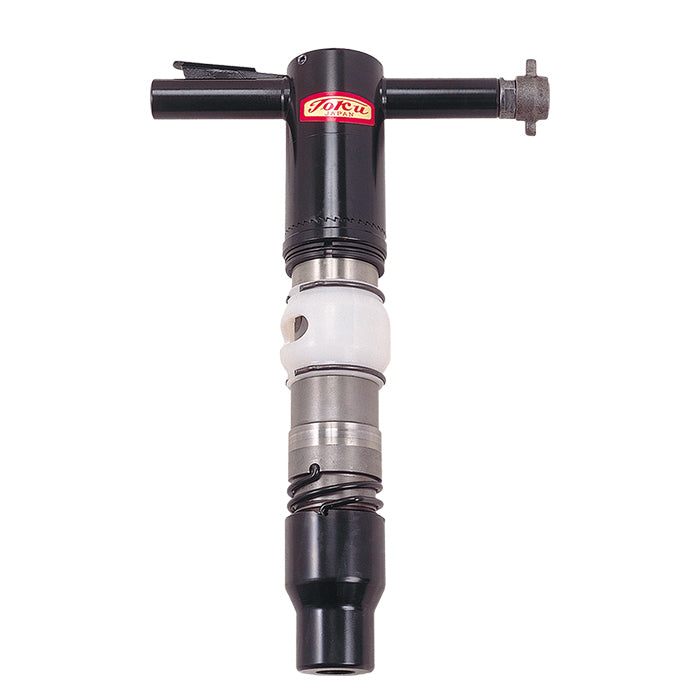

TCB-200 40 mm 166 mm 1050 b.p.m. 21 kg / 46 lb 556 mm 1.5 m³/min / 53 cfm 19 mm R30x87 1 PT

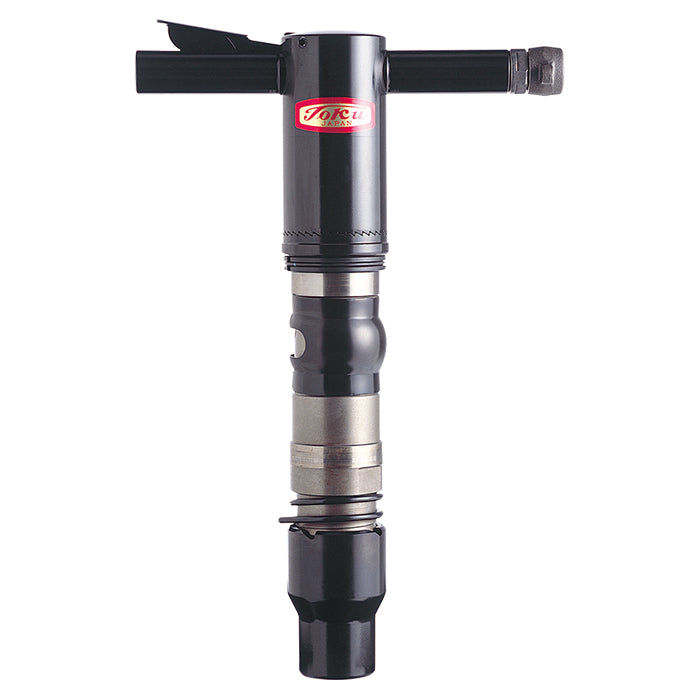

TCB-300 45 mm 180 mm 950 b.p.m. 30 kg / 66 lb 606 mm 1.6 m³/min / 57 cfm 19 mm R35x87 1 PT

Note:

Working pressure: 0.6MPa
