TOKU Pneumatic / Air Rock Drill / Rotary Hammer (Made in Japan)

₱130,500.00

HIGHLIGHTS: Toku paving breakers are used in road construction and building foundation work site and used to break high-strength concrete. Toku is the Japanese manufacturer having over 80 years experience on...

Ask a Question

Model: TH-5S

TH-5S
TJ-15LBS
TJ-20LBS
TS-55
Add to Wishlist
People are viewing this right now

Responsive Image
Responsive Placeholder Image

Select billease during checkout.

Manufacturer_Partner
TOKU
Description

HIGHLIGHTS:

Toku paving breakers are used in road construction and building foundation work site and used to break high-strength concrete.

Toku is the Japanese manufacturer having over 80 years experience on pneumatic tool and will keep best efforts to supply best performance tool with high productivity and durability into worldwide industrial and automotive after-market.

High Durability Long Life

  • Alloy steel forged parts provide maximum durability.
  • Removable bushing to protect wear of front head.
  • Font head shock absorbers (except TH5-S)

Ergonomic Series Available

  • Anti-vibration handle and noise reduction muffler are available for workers healthcare. (TJ series)

Other Features

  • Forged latch retainer for quick chisel change.
  • Multi position throttle for smooth start-up in drilling.



APPLICATIONS:

  • Automotive: Ideal for mechanics and automotive technicians, this tool is perfect for tasks such as engine repairs, tire changes, and general vehicle maintenance.
  • General Industry: Suitable for a wide range of industrial applications, including assembly lines, machinery maintenance, and construction projects.



FEATURES:

  • Air Consumption: Efficient air consumption ensures prolonged use without compromising performance.
  • Noise Level: Designed to operate quietly, minimizing noise pollution in the workplace.
  • Operating Pressure: Optimized for standard air compressor setups, providing consistent power and reliability.



SPECIFICATIONS:
MODEL Piston Diameter Piston Stroke Blow Per Min. Rotary Speed Net Weight Overall Length Air Consumption Hose Size

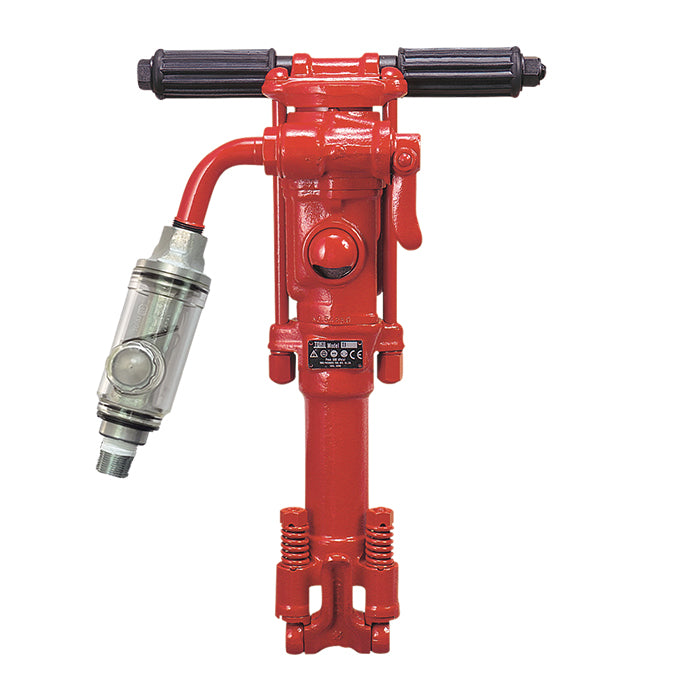

TJ-15 54 mm 45 mm 2450 b.p.m. 250 r.p.m. 14.0 kg / 31 lb 504 mm 1.6 m³/min / 56.5 cfm 19 mm
TJ-20 68 mm 49 mm 2400 b.p.m. 200 r.p.m. 18.5 kg / 41 lb 610 mm 2.5 m³/min / 88.3 cfm 19 mm

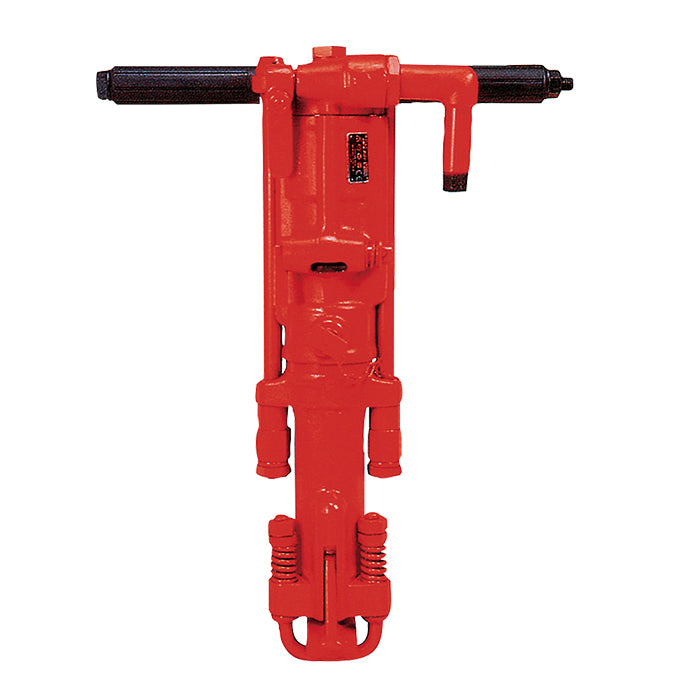

TS-55 66.6 mm 64 mm 1800 b.p.m. 200 r.p.m. 27.0 kg / 60 lb S-581 mm / L-606 mm 2.6 m³/min / 91.8 cfm 19 mm

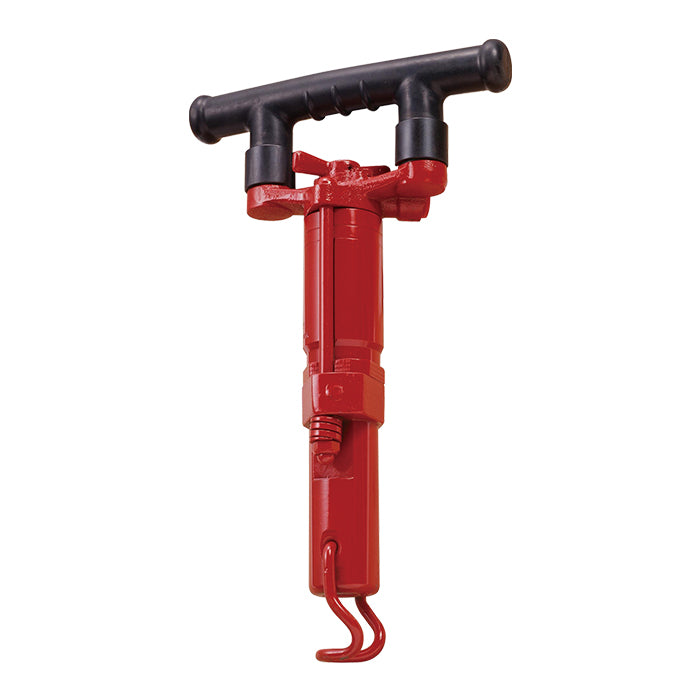

TH5-S - - 3400 b.p.m. 420 r.p.m. 5.8 kg / 13 lb 425 mm 0.9 m³/min / 30.0 cfm 12.7 mm

Note:

  • Working pressure: 0.6MPa
  • TH5-S shank size: R3/4 x 5/8H
